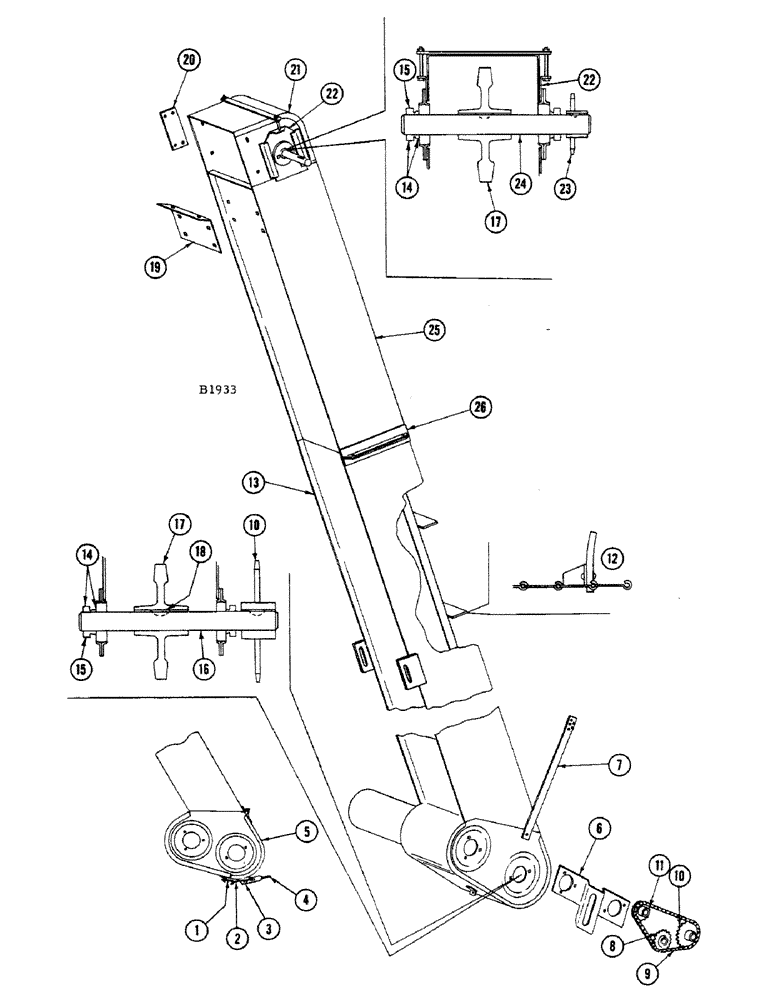

Запчасти Case IH 1010 (164) - GRAIN ELEVATOR, BAGGING ATTACHMENT (80) - CROP STORAGE/UNLOADING

1

O315CS

HOOK - latch, lower head cover

1шт.

2

O316CS

SPRING - linkage, for O313CS latch handle (Ref. 4)

1шт.

3

F11512

BRACKET - for latch handle O313CS (Ref. 4)

2шт.

4

O313CS

HANDLE - latch, lower head cover

1шт.

RIVET - 3/16" x 5/8" rhd. (45-310)

1шт.

5

F79470

COVER - lower head

1шт.

6

F12053

BRACKET - idler

1шт.

7

F12218

SUPPORT STRAP - grain elevator

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101)

1шт.

8

F7935

SPROCKET ASSY.

SPROCKET - (18T) tightener, elevator drive

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex. (114-603) nut (129-127)

1шт.

9

F7945

X

CHAIN - grain elevator drive (Use 2-B12471 chain and 1-B12473 chain #40)

1шт.

10

F76981

SPROCKET - (22T) elevator drive, driven (On F6612 lower shaft)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 1/4" x 1-3/4" cotter (132-152)

1шт.

11

F76947

SPROCKET - (15T) drives elevator (On grain auger shaft)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

12

F79469

CHAIN AND FLIGHTS - (NSS) Consists of 1-F86424, 1-F86422, 2-F78446 and 2-F79706

1шт.

13

F79461

BODY AND LOWER HEAD

1шт.

14

F78749

COLLAR

BEARING - (Aetna #AG1014C-4) lower and upper shaft

4шт.

15

F52076

COLLAR

1шт.

16

F6612

SHAFT - (10-5/8" long) lower

1шт.

17

51B

SPROCKET ASSY.

SPROCKET

2шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

18

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

19

F12017

BRACKET - elevator support

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (119-217) nut (129-102)

4шт.

20

F12201

TIE STRAP - See corss auger attachment

2шт.

21

F78319

HEAD - upper, elevator body

1шт.

22

F7901

BRACKET - adjustment, for upper elevator shaft

2шт.

BOLT - 5/16" x 3-1/2" N.C. hex. (113-116)

2шт.

NUT - (129-102)

4шт.

23

F10267

SPROCKET - (13T) distribution drive

1шт.

24

F6611

SHAFT - (11" long) upper head

1шт.

25

F86120

SPOUT AND TUBE - for inlet auger over grain gin, elevator bagger attachment

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (12-48) nut (25-104), grain elevator extension bagger attachment

10шт.

26

F86128

ANGLE - mounting, grain elevator extension bagger attachment

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-107) nut (129-101), grain elevator extension bagger attachment

7шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121), grain elevator extension bagger attachment

6шт.

F86124

CHAIN AND FLIGHT - extension (NSS) Consists of 1-F86420, 1-F78446, 1-F77894 and 1-#55 plain link (Not shown), grain elevator extension bagger attachment

1шт.
