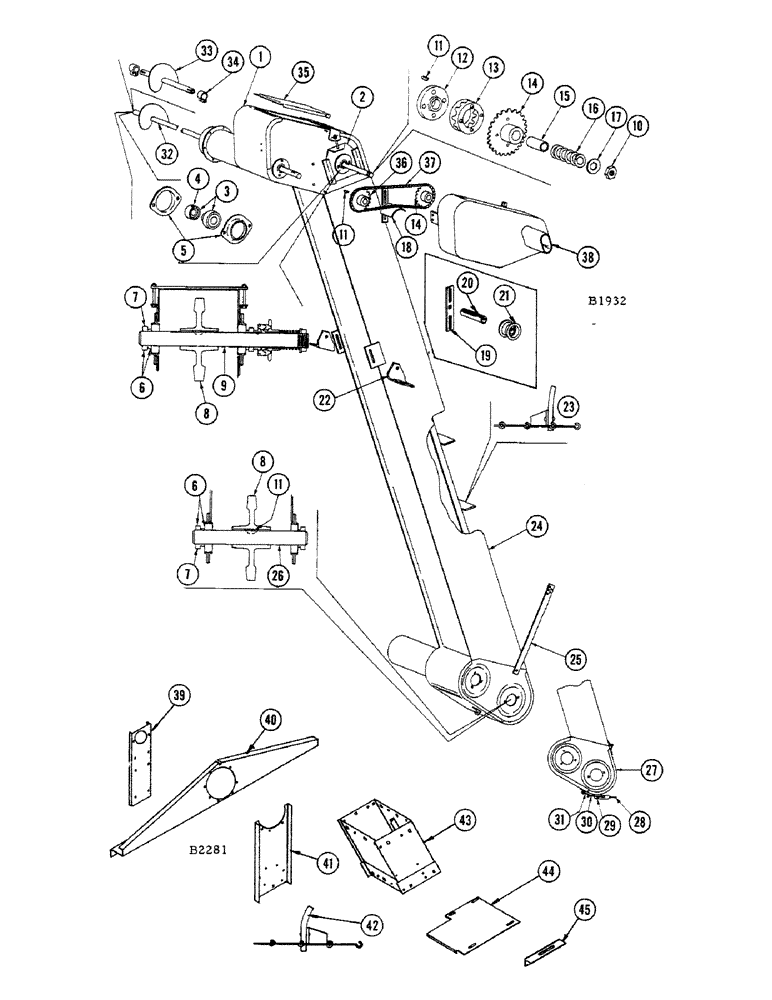

Запчасти Case IH 1010 (160) - GRAIN ELEVATOR, GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F79458

HEAD - upper, elevator body

1шт.

SCREW - 1/4" x 1/2" N.C. mach. (173-201) nut (129-101)

2шт.

WASHER - 1/4" plain (195-518)

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

6шт.

2

F16438

HOLDER - elevator bearing

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (113-117)

2шт.

NUT - jam (129-142)

4шт.

3

F90306

BEARING ASSY

BEARING - (Fafnir #RAO14PPB) for F86140 auger R.H. side grain bin

1шт.

4

O4233CS

COLLAR

1шт.

5

F9417

FLANGE

- for ref. 3

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

2шт.

6

F78749

COLLAR

BEARING - (Aetna #AG1014C-4)

5шт.

7

F52076

COLLAR

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

4шт.

8

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator chain, upper and lower shaft

2шт.

KEY - "A" Woodruff (126-21)

2шт.

PIN - 3/16" x 2" cotter (132-99)

2шт.

9

F11232

SHAFT

- upper head

1шт.

10

131-37

LOCK NUT,3/4"-16

NUT - 3/4" #29NTE126 ESNA

1шт.

11

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

12

143CS

PLATE

- hub, jump clutch

1шт.

13

T16665

RING - clutch

1шт.

14

T79464

SPROCKET - (30T) on grain auger shaft, drives elevator

1шт.

15

F11042

BEARING

BUSHING - (27/32" O.D. x 1-3/8" long)

1шт.

16

O1090CH

SPRING

1шт.

17

O2985A

X

WASHER

1шт.

18

F79473

TIGHTENER - chain, elevator drive (Before serial #8262501)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

2шт.

19

F12712

BRACKET - chain tightener (Serial #8262501 and after)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

2шт.

20

O201HT

SPACER - chain tightener (Serial #8262501 and after)

1шт.

21

O3511CS

PULLEY

IDLER - chain tightener (Serial #8262501 and after)

1шт.

BOLT - 3/8" x 3/4" N.C. #3 hd. plow (18-660) nut (25-106)

1шт.

22

F12075

BRACKET - elevator support

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

23

F79469

CHAIN AND FLIGHTS - (NSS) Consists of 1-F86424, 1-F86422, 2-F78446 and 2-F79706

1шт.

24

F79461

BODY AND LOWER HEAD

1шт.

25

F11246

STRAP - support, grain elevator (Grain)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101)

1шт.

26

F11240

SHAFT - lower head

1шт.

27

F79470

COVER - lower head

1шт.

28

O313CS

HANDLE - latch, lower head cover

1шт.

RIVET - 3/16" x 5/8" rhd. (45-310)

1шт.

29

F11512

BRACKET - for latch handle O313CS (Ref. 28)

2шт.

30

O316CS

SPRING - linkage, for ref. 28

1шт.

31

O315CS

HOOK - latch, lower head cover

1шт.

32

F86140

AUGER - inlet, over grain bin

1шт.

195-549

WASHER,7/8", SAE

- 7/8" flat

3шт.

33

F79537

AUGER - sliding distribution

2шт.

34

F11437

CLAMP - distribution auger

4шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

and nut (129-122) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

35

F11245

COVER - hand hole, upperhead

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, , L.W. (192-19) fl. wshr. (195-518) 1/4"-20

2шт.

36

F79467

SPROCKET ASSY.

SPROCKET - (30T) distribution auger drive, driven

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

37

F11247

CHAIN - grain elevator drive (See chain page)

1шт.

See F7945 for bagging platform chain

1шт.

38

F79474

SHIELD - chain

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex. and nut (129-121)

2шт.

39

F13147

STIFFENER - shaft support extension

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

and nut (129-121) Hex, 1/4"-28 x 5/8", G5, Full Thd

2шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex. and nut (129-122)

2шт.

40

F13149

SHIELD - grain

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

and nut (129-121) Hex, 1/4"-28 x 5/8", G5, Full Thd

11шт.

41

F13148

SUPPORT - tube

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

and nut (129-121) Hex, 1/4"-28 x 5/8", G5, Full Thd

9шт.

42

F87068

CHAIN AND FLIGHT - (NSS) consists of 3-F77894

1шт.

43

F87066

TUBE - extension

1шт.

111-118

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT, CARRIAGE, , and nut (129-101) Short NK, 1/4"-20 x 1/2", G2

14шт.

195-18

WASHER,1/4"

- flat 1/4"

14шт.

44

F12364

SECTION - removable, floor

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. and nut (129-101)

2шт.

45

F13150

BRACKET - elevator

2шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

and nut (129-122) Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

111-332

BOLT

- 3/8" x 3/4" N.F. hex. and nut (129-123)

2шт.

F13151

CHAIN - distributor auger (See chain page)

1шт.
