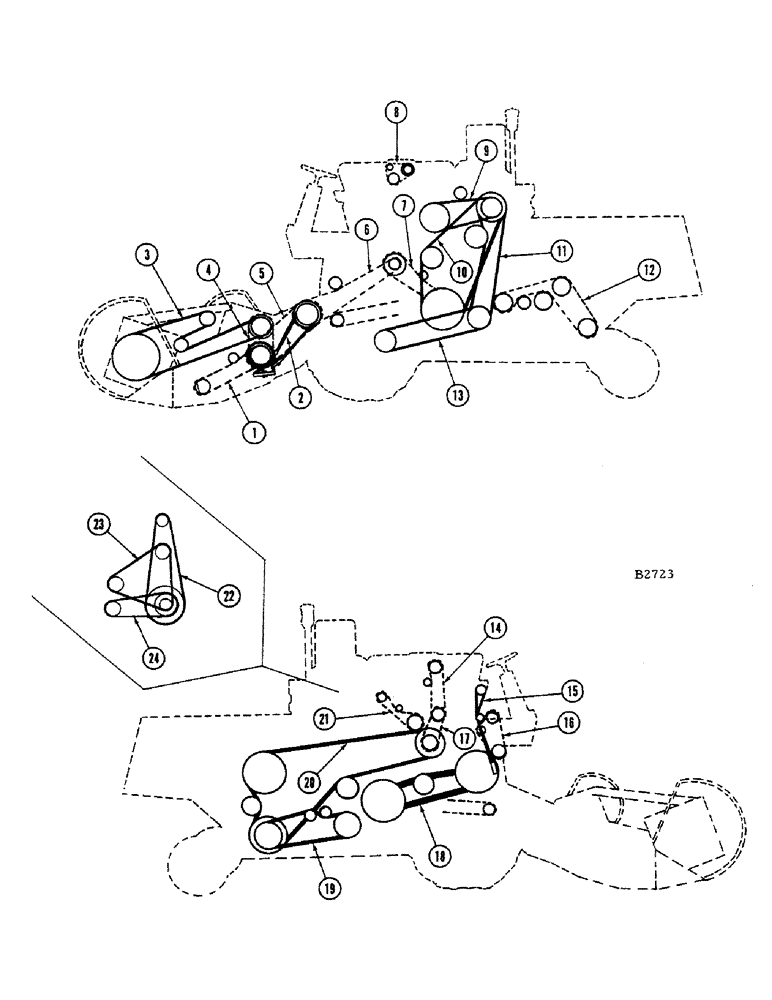

Запчасти Case IH 1010 (005A) - BELT AND CHAIN DRIVE REFERENCE (05) - SERVICE & MAINTENANCE

1

F11689

X

CHAIN - auger drive

1шт.

2

F9587

BELT - sickle drive (12 ft. header)

1шт.

2

F12765

V-BELT

BELT - sickle drive (13 ft. header)

1шт.

F8398

V-BELT

BELT - sickle drive (14 ft. header)

1шт.

2

F8819

V-BELT

BELT - sickle drive (16 ft. and 18 ft. header)

1шт.

3

F8419

V-BELT

BELT - reel drive (Standard)

1шт.

3

F8819

V-BELT

BELT - reel drive (Heavy duty)

1шт.

4

F8393

CHAIN - drives reel drive jackshaft

1шт.

5

F8392

CHAIN - main header drive

1шт.

6

F6588

X

CHAIN - drives upper feed rake shaft

1шт.

7

F7872

CHAIN - beater drive

1шт.

8

F11247

CHAIN - grain elevator drive

1шт.

9

F11139

BELT

Drives Grain Bin Auger Drive Jackshaft

1шт.

10

F9935

V-BELT

BELT - main combine drive

1шт.

11

F12280

BELT

Traction Drive

1шт.

12

F10754

CHAIN - drives conveyor rake, strawwalker and tailings auger

1шт.

13

F12258

V-BELT

BELT - variable speed traction drive

1шт.

14

F11237

X

CHAIN - distribution auger drive

1шт.

15

F12633

BELT - variable speed cylinder drive

1шт.

16

F7904

X

CHAIN - discharge auger drive

1шт.

17

F11149

X

CHAIN - distribution auger jackshaft drive

1шт.

18

F12604

V-BELT,1.75" W

Variable Speed Cylinder Drive 1.75" W

1шт.

19

F9468

BELT

Fan Drive

1шт.

19

F10269

BELT

Fan Drive, See F9468, High Speed Attachment

1шт.

20

F7865

BELT

Shoe and Grain Auger Drive

1шт.

21

F11130

CHAIN (AG)

CHAIN - grain bin auger drive

1шт.

22

F12672

BELT - governor drive (Chrysler engine)

1шт.

23

F11444

BELT - fan drive (Case engine)

1шт.

23

F12793

V-BELT

BELT - fan drive (Chrysler engine)

1шт.

23

F10672

BELT - fan drive (Hercules engine)

1шт.

24

F8047

BELT

Hydraulic Pump Drive

1шт.
