(158[A]) - GRAIN FLOOR

Запчасти Case IH 1010 (158[A]) - GRAIN FLOOR (80) - CROP STORAGE/UNLOADING

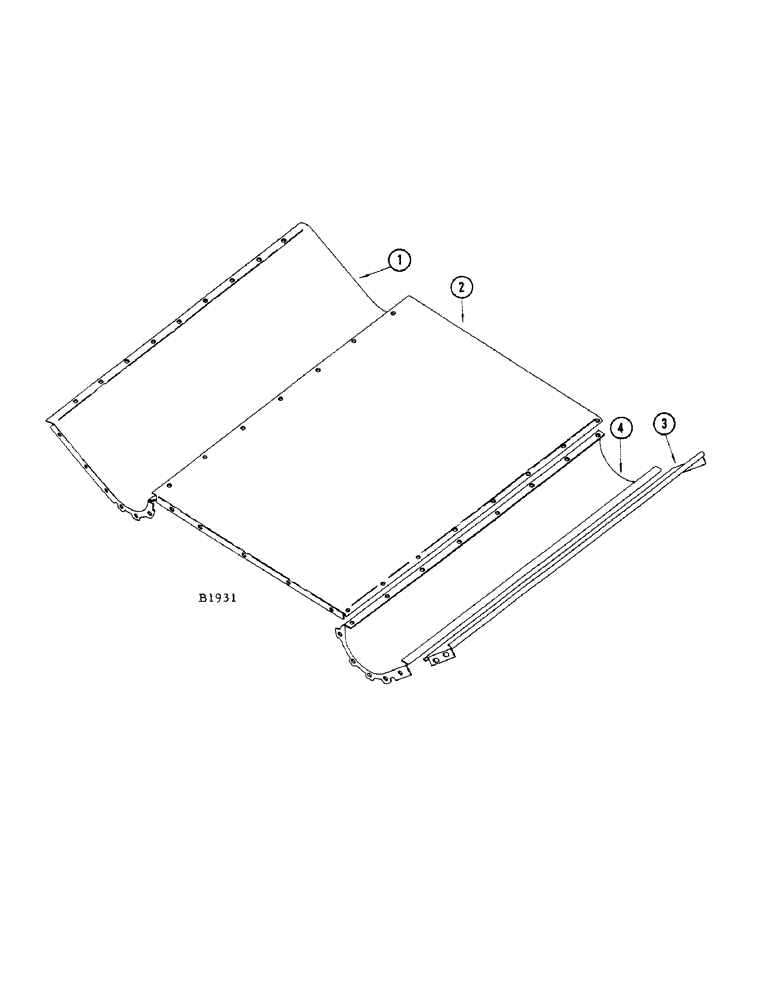

Схема запчастей Case IH 1010 - (158[A]) - GRAIN FLOOR (80) - CROP STORAGE/UNLOADING
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F7819

TROUGH - grain auger

1шт.

2

F7829

FLOOR - grain

1шт.

SCREW - 1/4" x 1/2" rhd. N.C. mach. (75-48) nut (25-104)

11шт.

3

F11624

PANEL - hinge

1шт.

4

F11625

TROUGH - tailings auger

1шт.

F10379

TROUGH - grain auger (Perforated) See F7819, floor attachment

1шт.

F11664

TROUGH - tailings auger (Perforated) See F11625, floor attachment

1шт.

F78921

FLOOR - concave access section (Perforated) See F77977, trough attachment

1шт.
