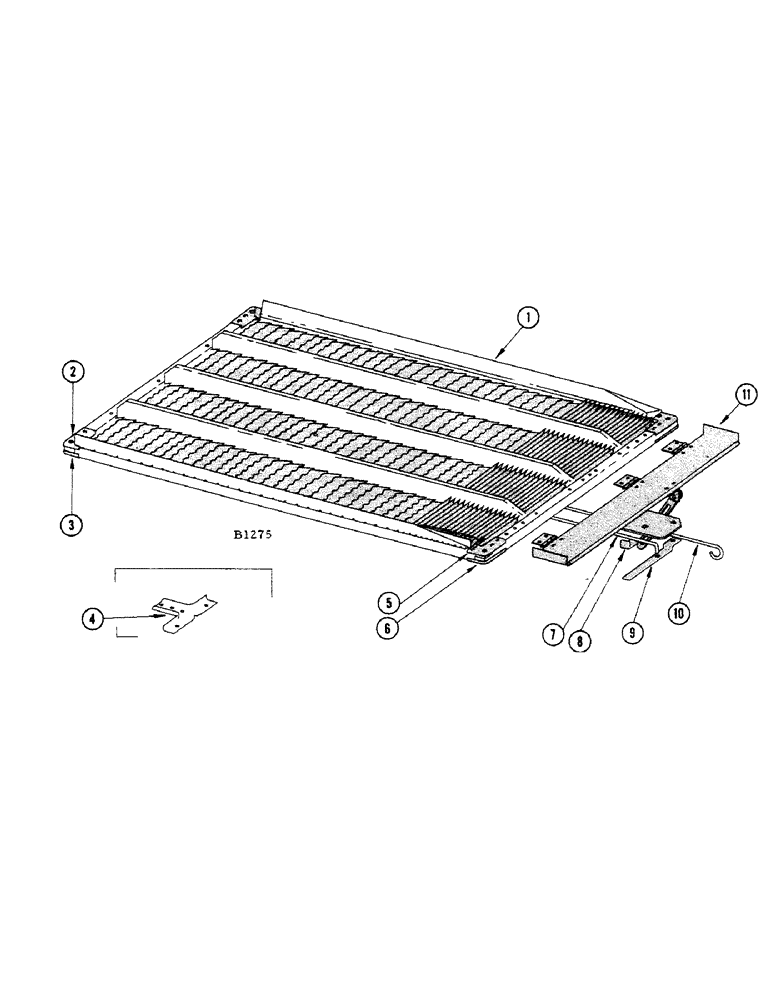

Запчасти Case IH 1010 (158) - CONVEYOR SIEVE (74) - CLEANING

1

F86769

SIEVE

- conveyor, complete less tail gate assembly (Serial #8262501 and after)

1шт.

F86242

SIEVE - conveyor, complete less tail gate (Before serial #8262501)

1шт.

2

F6876

BRACKET - front corner, R.H. upper and L.H. lower (Before serial #8262501)

2шт.

RIVET - 3/16" x 1" W.B. (49-316)

4шт.

3

F7092

BRACKET - front corner, L.H. upper and R.H. lower (Before serial #8262501)

2шт.

RIVET - 3/16" x 1" W.B. (49-316)

4шт.

4

O90T1

"T" BRACKET - center rail (Before serial #8262501)

6шт.

RIVET - 3/16" x 7/8" W.B. (49-314)

12шт.

RIVET - 3/16" x 15/16" W.B. (49-316)

10шт.

RIVET - 3/16" x 1-1/8" W.B. (49-318)

2шт.

5

F7484

BRACKET - rear corner, lower R.H. and upper L.H. (Before serial #8262501)

1шт.

RIVET - 3/16" x 1" W.B. (49-316)

6шт.

6

F7483

BRACKET - rear corner, upper R.H. and lower L.H (Before serial #8262510)

2шт.

RIVET - 3/16" x 1" W.B. (49-316)

6шт.

7

F8106

ROD

- adjusting, front section conveyor sieve

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

2шт.

8

F8107

CLAMP - adjusting rod

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520) wing nut (129-405)

1шт.

9

F8096

LEVER - adjusting, conveyor sieve

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) ESNA locknut (131-3)

1шт.

10

O464CS

ROD - adjusting, conveyor sieve, rear section for tailings

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

11

F76773

GATE - tail, conveyor sieve

1шт.

BOLT - 1/4" N.F. hex. (114-2) nut (129-121)

6шт.
