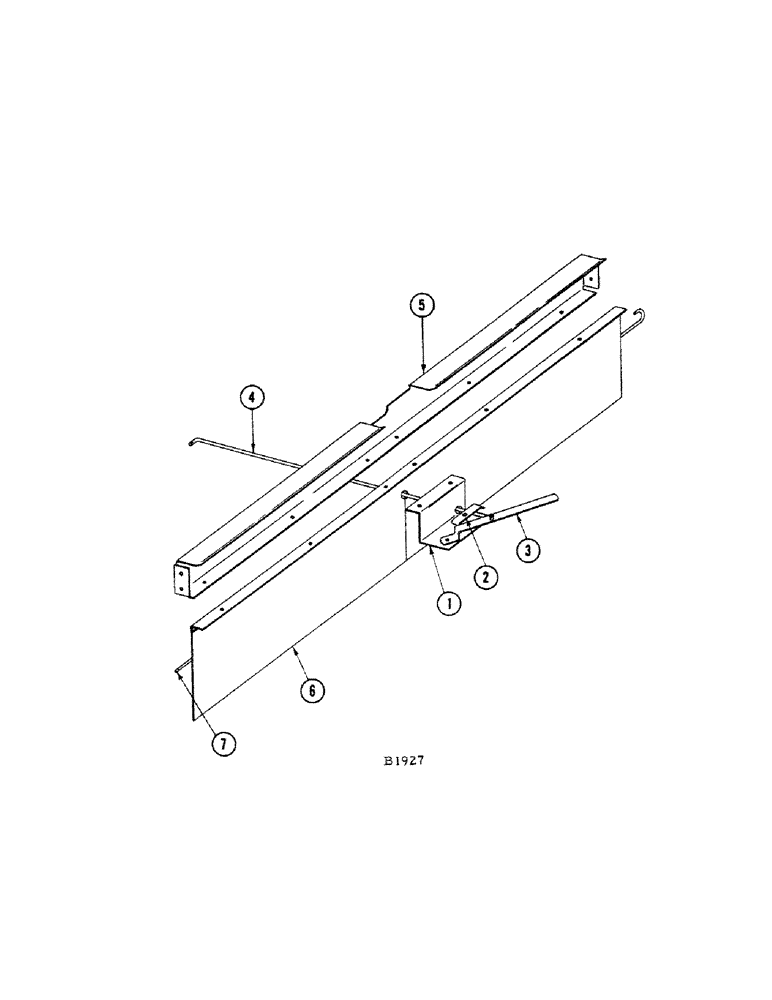

Запчасти Case IH 1010 (156[A]) - SHOE SIEVE ADJUSTMENT (74) - CLEANING

1

F8094

BRACKET - adjustment

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

2

F8107

CLAMP - adjusting rod

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520) wing nut (129-405)

2шт.

3

F8096

LEVER - adjusting, shoe sieve

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) ESNA locknut #29EO54 (131-3)

1шт.

4

F8106

ROD

- adjusting, shoe sieve

1шт.

PIN - 3/32" x 7/8" cotter (132-27)

2шт.

5

F11871

CROSS MEMBER - rear shoe

1шт.

6

F86043

STIFFENER AND SEAL - rear shoe

1шт.

7

F10491

ROD - rear shoe seal

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

F77188

SIEVE - (5/64" rd. hole) Timothy, finishing

1шт.

F77189

SIEVE - (3/32" rd. hole) Alfalfa and Clover, finishing

1шт.

F77190

SIEVE - (1/8" rd. hole) Cockle and Millet, finishing

1шт.

F77191

SIEVE - (5/32" rd. hole) Flax. Lespedeza and Millet, finishing

1шт.

F77192

SIEVE - (3/16" rd. hole) Flax, finishing

1шт.

F77193

SIEVE - (7/32" rd. hole) Buckwheat, finishing

1шт.

F77194

SIEVE - (9/32" rd. hole) Beets and Sugar, finishing

1шт.

F77195

SIEVE - (3/8" rd. hole) Soy, Velvet and Edible Beans; Grain Sorghum, finishing

1шт.

F77196

SIEVE - (3/8" x 1/8" slotted hole) Buckwheat, Crotolaria, Fenugreek, Grasses, Grain Sorghum, Rye, Vetch and Wheat, finishing

1шт.

F77197

SIEVE - (9/64" triangle hole) Wild buckwheat, finishing

1шт.

F77198

SIEVE - (1/2" rd. hole) Rice, finishing

1шт.

F77199

SIEVE - (5/8" rd. hole) Rice, finishing

1шт.
