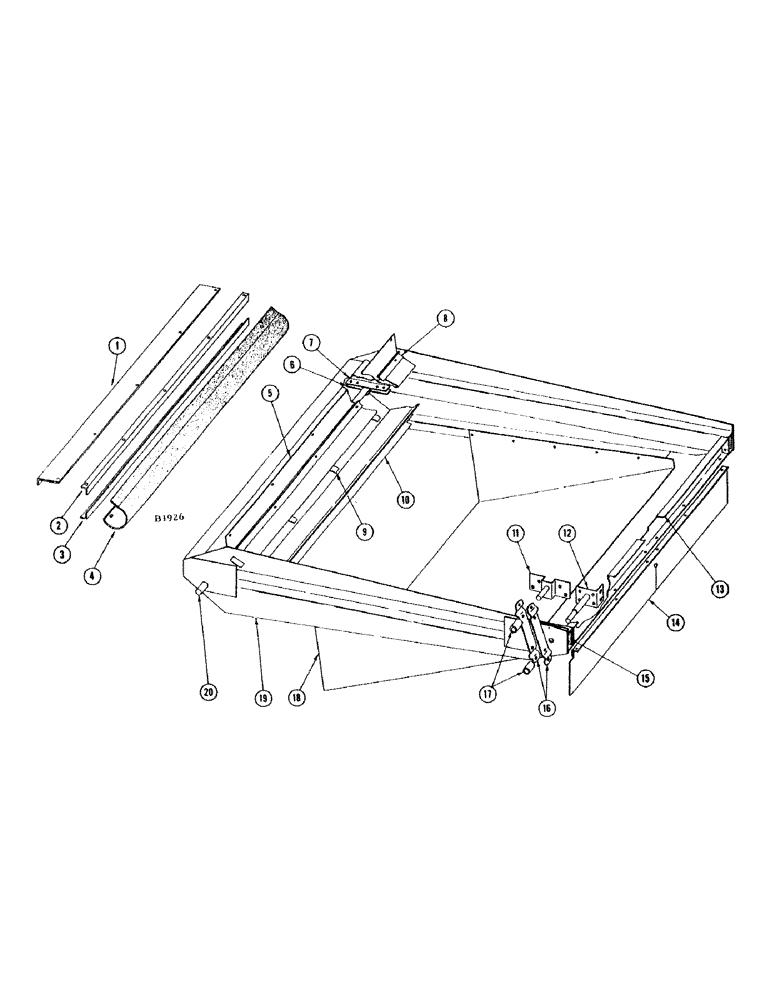

Запчасти Case IH 1010 (154) - SHOE (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
F12559
EXTENSION - shoe seal front (Serial #8243201 and after)
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
5шт.
2
F86669
STRIP - bolting, front shoe seal (Serial #8243201 and after)
1шт.
SCREW - 1/4" x 7/8" N.C. rhd. mach. (73-414)
5шт.
3
F12562
STRIP - bolting, seal (Serial #8243201 and after) See ref. 8
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) L.W. (92-4)
5шт.
4
F12561
SEAL - shoe front (Serial #8243201 and after) See ref. 5
1шт.
5
F7713
SEAL - upper front (Before serial #8243201) See ref. 4
1шт.
6
F11876
SUPPORT - front pivot
2шт.
7
F11875
SUPPORT - bracket, front
2шт.
8
F7714
STIFFENER - for F7713 shoe seal (Before serial #8243201) See ref. 3
2шт.
BOLT - 1/4" x 5/8" N.C. hex. (13-410) 1/4" - 20 Tinnerman nut (131-108)
5шт.
SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) nut (25-104)
5шт.
9
F7711
CLIP - lower front
3шт.
SCREW - 5/16" x 5/8" rhd. mach. (75-510) nut (25-105)
3шт.
10
F86056
STOP - front sieve
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)
2шт.
11
F79273
BRACKET - rear, rocker arm pivot
2шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
8шт.
12
F86044
X
PIVOT - rear
2шт.
13
F11871
MEMBER - rear cross
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)
4шт.
14
F86043
STIFFENER AND SEAL - rear shoe
1шт.
15
F11879
BRACKET - pivot support
2шт.
BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)
8шт.
16
F11039
SWINGER - rear shoe
4шт.
BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)
8шт.
17
O4505BF2
BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L
- for ref. 16
4шт.
18
F86634
BOTTOM - vibrating (Replaces F11874)
1шт.
BOLT - 1/4" x 3/4" N.C. hex. (13-412) L.W. (92-4)
10шт.
19
F86667
SHOE - (Replaces F86042)
1шт.
BOLT - 5/16" x 1/2" N.C. hex. (13-58) nut (25-105)
2шт.
20
F11880
SHAFT - front rocker for shoe
1шт.
F10491
ROD - rear shoe seal (Not shown) (See shoe sieve adjustment)
1шт.
PIN - 1/8" x 3/4" cotter (132-46)
1шт.
