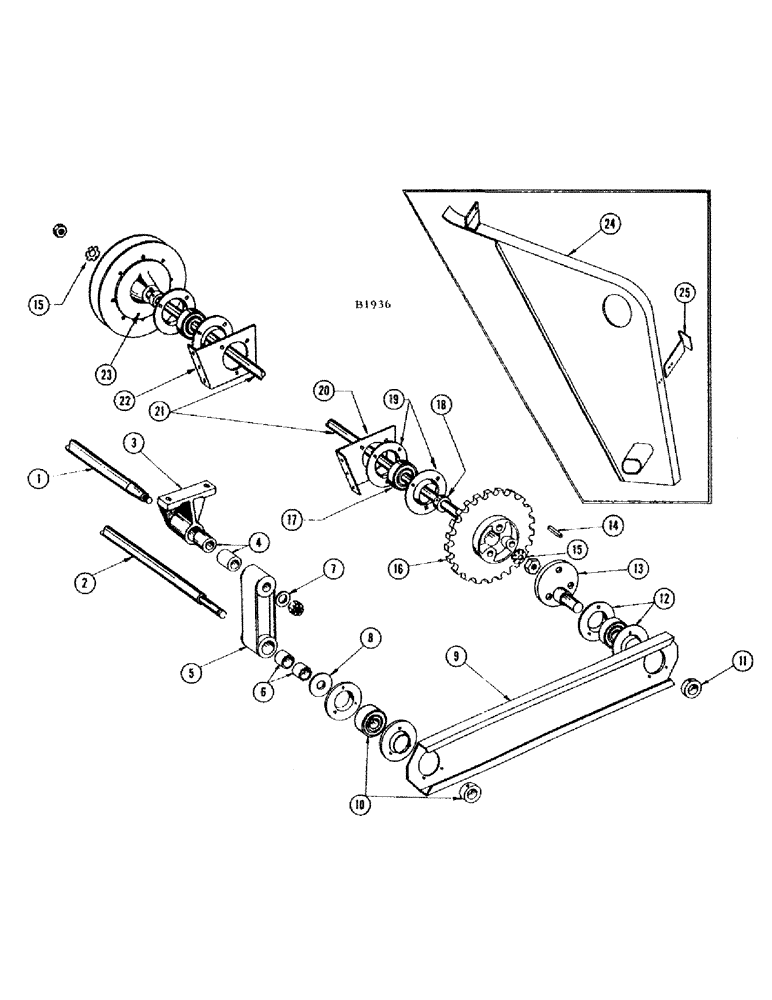

Запчасти Case IH 1010 (152) - ROCKER ARM DRIVE FOR SHOE, STRAWWALKER AND TAILINGS ELEVATOR (74) - CLEANING

1

F11900

SHAFT - rocker arm

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex. and L.W. (92-10)

2шт.

2

F11880

SHAFT - front rocker, for shoe

1шт.

3

F77274

HOUSING - rocker arm

2шт.

4

F10555

BUSHING

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex. and nut (25-118)

2шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex. and nut (25-116)

2шт.

5

F86054

ARM - front rocker

2шт.

6

F10555

BUSHING

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

7

O236CH

WASHER - for ref. 1

1шт.

8

O15761S

SPACER - for ref. 2

2шт.

9

F11932

PITMAN - rocker arm

2шт.

10

3074CSA

BALL BEARING

4шт.

11

F62108

COLLAR

1шт.

12

B18282

FLANGE

- bearing

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

13

F86065

CRANK - pitman

2шт.

14

O2237HT

KEY - pitman crank and drive sprocket

2шт.

15

O4918CS

LOCKWASHER - wing, for jackshaft nut

2шт.

16

F86063

SPROCKET ASSY.

SPROCKET - (40T) drives strawwalker and tailings elevator

1шт.

17

N3382

BALL BEARING

BEARING - jackshat

2шт.

18

N3384

COLLAR CLAMP

COLLAR

1шт.

19

O650CB

X

FLANGE

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , and nut (25-106) Short NK, 3/8"-16 x 1", G2

6шт.

20

F7758

BRACKET - L.H., jackshaft support

1шт.

21

F7701

JACKSHAFT - strawwalker drive

1шт.

22

F7743

BRACKET - R.H., jackshaft support

1шт.

23

F86064

SHEAVE - strawwalker drive, w/crank

1шт.

24

F79479

SHIELD - chain, conveyor rake, strawwalker and tailings auger

1шт.

25

F11276

BRACKET - rear, shield

1шт.

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4" x 1/2" rhd. sq. nk. and nut (129-101)

2шт.
