(150[A]) - TIGHTENER, SHOE AND GRAIN AUGER DRIVE

Запчасти Case IH 1010 (150[A]) - TIGHTENER, SHOE AND GRAIN AUGER DRIVE (74) - CLEANING

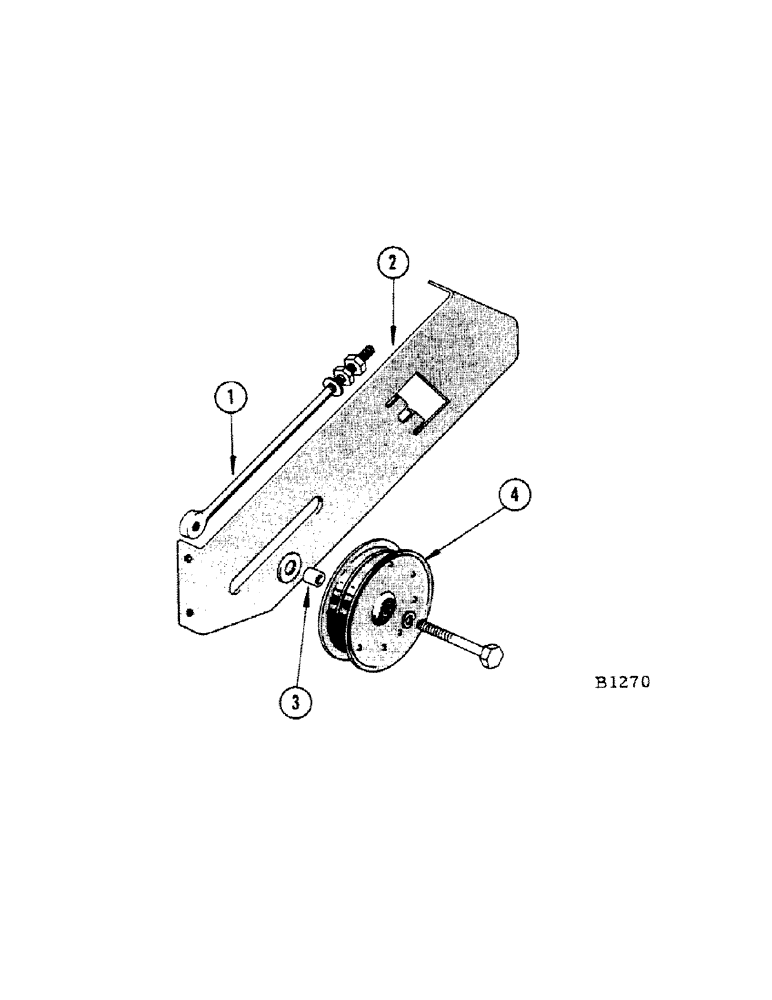

Схема запчастей Case IH 1010 - (150[A]) - TIGHTENER, SHOE AND GRAIN AUGER DRIVE (74) - CLEANING
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F9362

ROD - adjusting

1шт.

NUT - 1/2" N.F. hex. (25-108)

2шт.

WASHER - 1/2" std. (195-33)

1шт.

2

F11924

BRACKET - tightener

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

3

V13384

SPACER - (7/8" O.D. x 17/32" long)

1шт.

4

F80073

PULLEY ASSY.

SHEAVE - (8" O.D.) idler

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) L.W. (92-10)

1шт.

F7865

BELT

Shoe and Grain Auger Drive, Not Shown

1шт.
