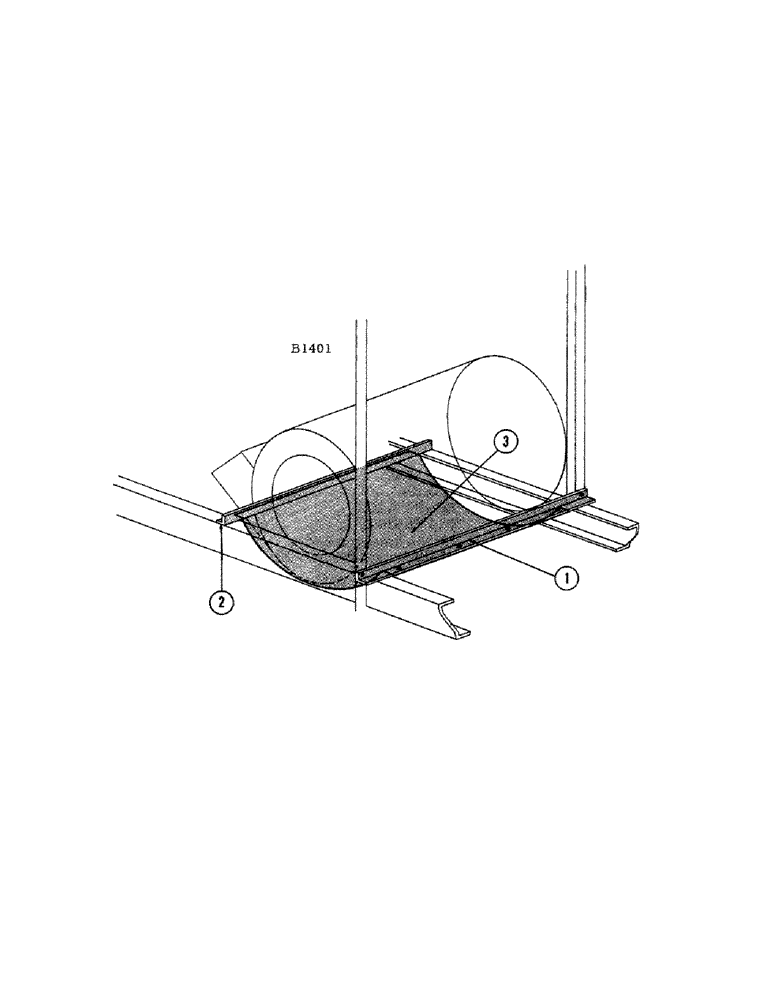

Запчасти Case IH 1010 (148) - FAN SHIELD ATTACHMENT (74) - CLEANING

1

F9559

ANGLE - front

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex. and nut (25-116)

2шт.

2

F9560

ANGLE - rear

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex. and nut (25-116)

2шт.

3

F12843

SHIELD - fan wrapper

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 7/8", G5, Full Thd

8шт.
