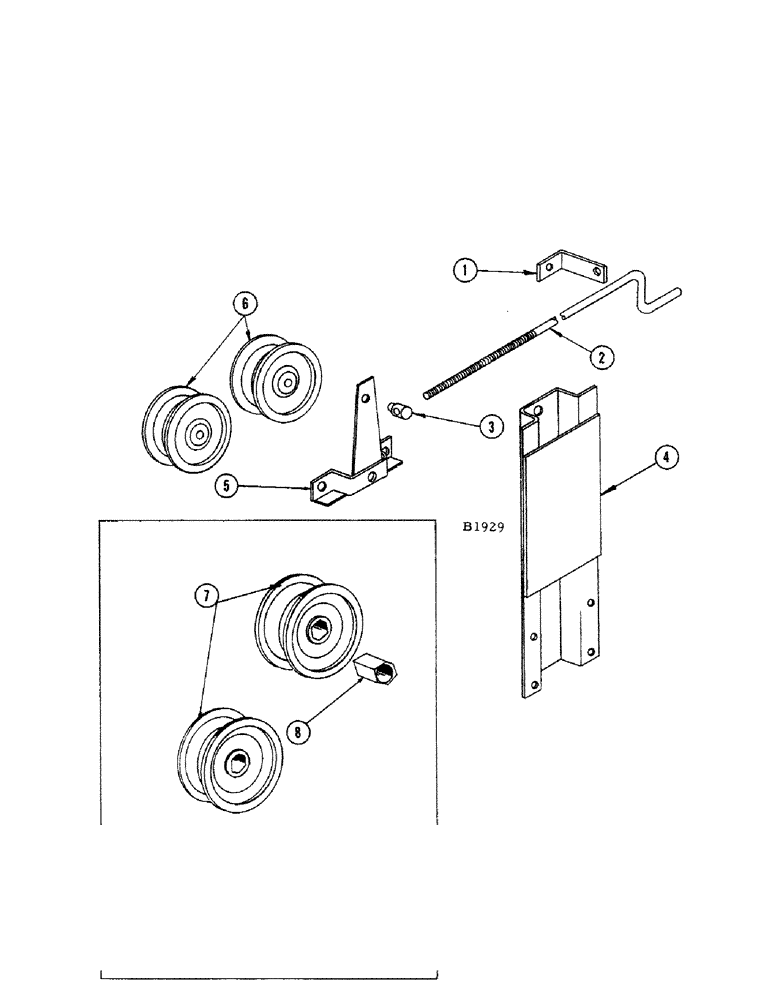

Запчасти Case IH 1010 (148[A]) - FAN DRIVE IDLER (74) - CLEANING

1

F11008

BEARING - crank, cleaning fan

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex. and nut (25-114)

1шт.

2

F11215

CRANK

1шт.

135-328

PIN - 1/8" x 1" type A-3 groove

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

F11214

TRUNNION - crank

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

4

F79096

BRACKET - idler support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

5

F79457

ARM - pivot

1шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex. jam

2шт.

6

O3526CS

PULLEY

IDLER - (Before #8262501)

2шт.

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N.F. hex. and nut (25-118)

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

7

F12624

PULLEY ASSY.

IDLER - (#8262501 and after)

2шт.

8

F12623

SPACER - for F12624 idler

2шт.

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

- 1/2" x 2-3/4" N.F. hex. and nut (25-118)

4шт.

95-8

WASHER,1/2"

flat 1/2"

8шт.
