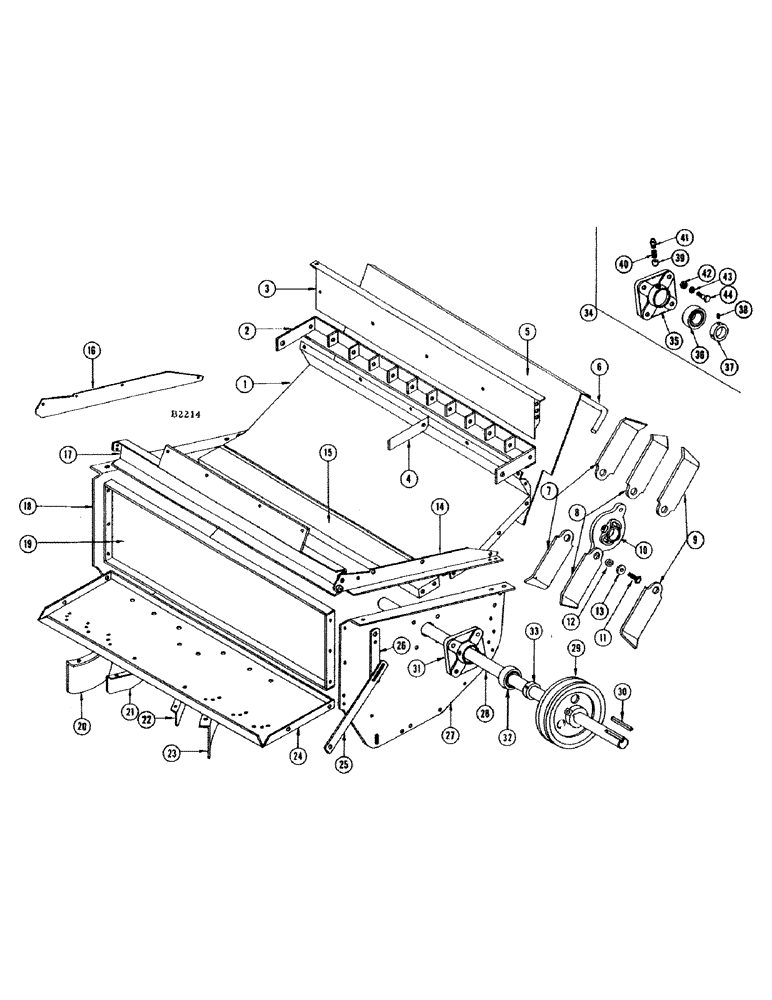

Запчасти Case IH 1010 (202) - CUTTER AND SPREADER HOUSING, INNES STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F86201

SHEET - bottom

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

10шт.

2

F86202

FRAME - retarder knife

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

3

F12173

SHEET - front

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

6шт.

SCREW - 5/16" x 5/8" N.C. truss hd. mach. (77-510)

9шт.

4

F19527

KNIFE

- retarder

11шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

11шт.

5

F86208

STRAWSLIDE

1шт.

6

F12179

ROD - strawslide

1шт.

WASHER - 5/16" plain (195-521)

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

1шт.

7

F82876

HAMMERS - (Pair of L.H.)

1шт.

8

F82874

HAMMERS - (Pair of R.H. and L.H.)

10шт.

9

F82875

HAMMERS - (Pair of R.H.)

1шт.

10

F1599

HOLDER - hammer

12шт.

SCREW - 3/8" x 3/4" N.F. sq. hd. set (86-612) and jam nut (25-156)

24шт.

NUT - (25-116) L.W. (92-6)

24шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

24шт.

12

F19529

BUSHING - (3/4" O.D. x 3/8" I.D. x 1/4" long) hammer holder

24шт.

13

F19530

WASHER - (1-1/8" O.D. x 25/64" I.D. x 3/16" thick) hammer holder bolt

24шт.

14

F86207

PANEL - R.H., mounting

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

3шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-132)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (114-221) nut (129-123)

1шт.

15

F12177

DEFLECTOR - straw

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

4шт.

WASHER - 3/8" plain (195-25)

2шт.

16

F86206

PANEL - L.H. mounting

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

3шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (114-221) nut (129-123)

1шт.

17

F12178

PANEL - rear

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

6шт.

18

F12171

PANEL - side, L.H.

1шт.

19

F12174

SHEET - rear

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

20

F19533

VANE - long, L.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (77-48) nut (25-104)

6шт.

21

F19535

VANE - short, L.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (77-48) nut (25-104)

2шт.

22

F19536

VANE - short, R.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (77-48) nut (25-104)

2шт.

23

F19534

VANE - long, R.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (77-48) nut (25-104)

6шт.

24

F12176

PAN - spreader

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

WASHER - 3/8" plain (195-25) L.W. (92-6)

2шт.

25

F19532

BRACE - spreader pan

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

26

F19526

BAR - hinge

2шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

4шт.

WASHER - 5/16" plain (195-21)

2шт.

27

F12172

PANEL - side, R.H.

1шт.

28

F12175

SHAFT

1шт.

29

F1379

SHEAVE - chopper

1шт.

SCREW - 3/8" x 1/2" N.C. socket hd. set (83-68)

2шт.

30

O5685HT

KEY - (5/16" x 5/16" x 1-1/2") F1379 sheave (Ref. 32)

1шт.

31

F1598

HOUSING - bearing (Replaced by ref. 34 when stocks are exhausted)

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

8шт.

32

F82871

BEARING - (Dodge #19A318) cutter shaft (Replaced by ref. 34 when stocks are exhausted)

2шт.

33

F19522

COLLAR - (Replaced by ref. 34 when stocks are exhausted)

1шт.

SCREW - 5/16" x 7/16" N.F. soc. hd. set (84-87)

2шт.

34

F84273

BEARING - complete, cutter shaft (Replaces ref. 31, 32 or 33 when stocks are exhausted)

2шт.

35

F1695

HOUSING - bearing

1шт.

36

F84274

BEARING

- (Dodge #123241) cutter shaft

1шт.

37

F21378

COLLAR

1шт.

38

84-57

SCREW - 5/16" - 24 x 7/16" hex. socket hd. set

2шт.

39

F21379

CARRIAGE BOLT

RETAINER - race

1шт.

40

F21380

SPRING

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

42

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

43

92-8

LOCK WASHER,1/2"

4шт.

44

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex., bearing housing

4шт.
