Запчасти Case IH 1010 (198) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING

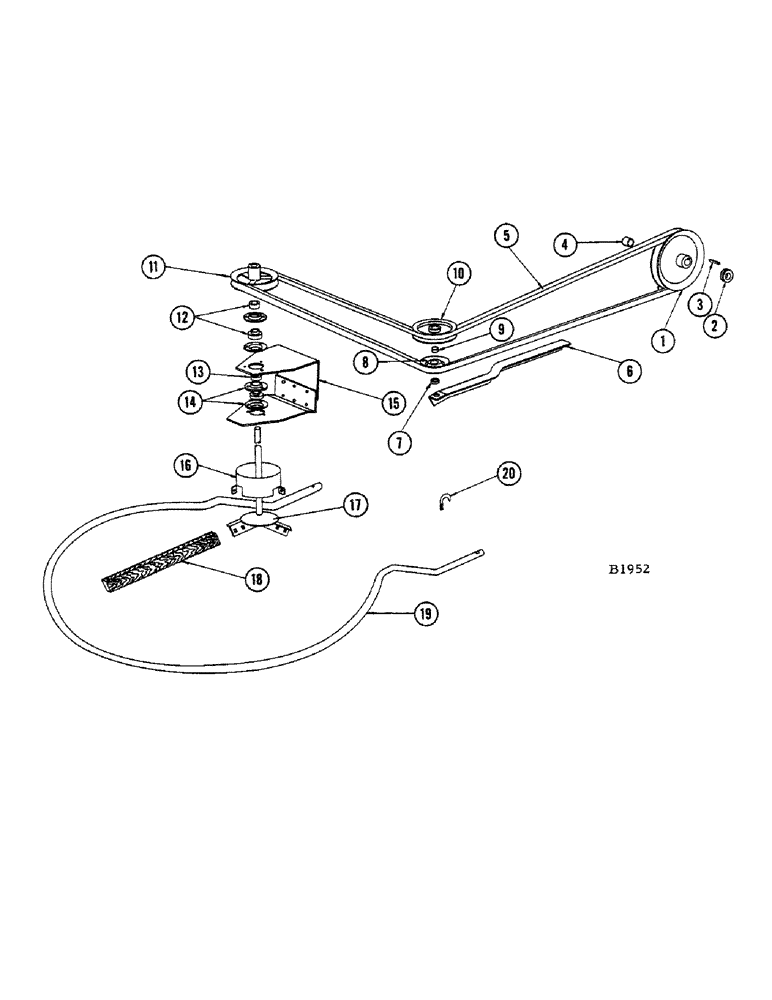

Схема запчастей Case IH 1010 - (198) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING
17
20
9
6
8
19
2
11
16
1
15
3
10
5
14
4
18
7
13
12

Артикул

Название

Примечание

Количество

1

F77156

SHEAVE - on rear strawwalker crankshaft, drives spreader

1шт.

2

35FG

COLLAR - locks F77156 sheave on rear strawwalker drive shaft

1шт.

PIN - 1/4" x 1-3/4" cotter (132-152)

1шт.

3

T25070

KEY

- (1/4" sq. x 2" long) For F77156 sheave (Ref. 1)

1шт.

4

O5963HT

SPACER - for F77156 sheave (Ref. 1)

1шт.

5

F8492

V-BELT

"V" BELT - spreader drive

1шт.

6

F11329

ANGLE - idler support

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103)

2шт.

7

O9066CH

WASHER - (1-11/32" O.D. x 21/32" I.D. x 3/16") between F11329 angle and F6845 sheave

1шт.

8

F6845

SHEAVE

- (4-3/8" O.D.) lower idler

1шт.

9

V13384

SPACER - between upper and lower idler sheaves

1шт.

10

F6474

PULLEY

SHEAVE - (7" O.D.) upper idler

1шт.

BOLT - 5/8" x 3-1/2" N.F. hex. (14-1056) nut (25-1110)

1шт.

11

44CS

PULLEY - spreader shaft, driven

1шт.

BOLT - 5/16" x 2-1/4" N.F. hex. (14-536) nut (25-115)

2шт.

12

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB) For Ref. 17

2шт.

13

O3785CS

X

COLLAR

1шт.

14

O799CB

X

FLANGE - for 3074CSA bearing (Ref. 12)

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

6шт.

15

F86279

BRACKET - spreader mounting

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

6шт.

16

F9567

SHIELD - for paddles

1шт.

17

F86186

SHAFT - spreader, with paddle supports and reinforcement

1шт.

18

F4021

PADDLE

S

3шт.

BOLT - 5/16" x 1-3/4" rhd. sq. nk. (111-219) nut (129-102)

6шт.

WASHER - 5/16" plain (195-103) L.W. (192-20)

6шт.

19

F12151

GUARD - spreader paddles

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-129)

2шт.

WASHER - 3/8" plain (195-525) L.W. (192-21)

2шт.

20

F12153

HOOK - guard mounting

2шт.

NUT - 5/16" N.F. hex. (129-122) L.W. (192-20) and plain wshr. (195-521)

2шт.

Выбрано товаров: 31
