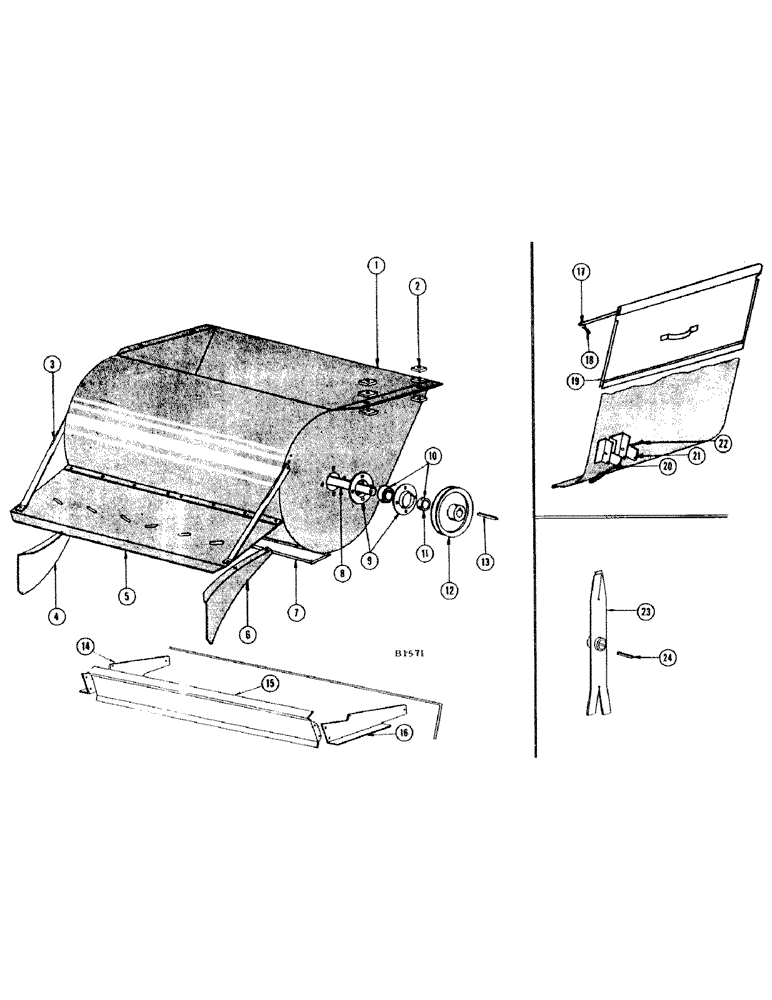

Запчасти Case IH 1010 (196) - CUTTER AND SPREADER HOUSING, POLARIS STRAWCHOPPER ATTACHMENT, BEFORE SERIAL NUMBER 8262501 (73) - RESIDUE HANDLING
№
Артикул
Название
Примечание
Количество
1
F78870
HOUSING - cutter
1шт.
2
F10011
BUMPER - (Rubber) vibration
12шт.
BOLT - 3/8" x 2-1/4" N.C. hex. (113-213) locknut (138-508)
4шт.
WASHER - 3/8" plain (95-6)
8шт.
3
F10585
BRACE - (Twisted) For F10584 shield (Ref. 5)
2шт.
4
F10032
WING - deflector, L.H.
3шт.
SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48)
6шт.
NUT - 1/4" N.C. wing (129-404) plain wshr. (95-4)
3шт.
LOCKWASHER - 1/4" (92-4)
9шт.
5
F10584
SHIELD - deflector
1шт.
6
F10031
WING - deflector, R.H.
3шт.
SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48)
6шт.
NUT - 1/4" N.C. wing (129-404) plain whsr. (95-4)
3шт.
LOCKWASHER - 1/4" (92-4)
9шт.
7
F79291
DEFLECTOR - air
1шт.
8
F10029
SHAFT - cutter
1шт.
9
F8944
FLANGE
- for F77924 bearing (Ref. 10)
4шт.
BOLT - 1/2" x 1-5/8" N.C. hex. (13-826) nut (25-108)
8шт.
10
F77924
BEARING
- (Fafnir #1108KRRB) cutter shaft
2шт.
11
O2991CS
X
COLLAR
1шт.
12
F1322
SHEAVE - (7" O.D.) cutter drive, driven
1шт.
SCREW - 3/8" x 3/8" set (83-66)
2шт.
13
T25070
KEY
- for ref. 12
1шт.
14
F12295
PANEL - L.H.
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-1210
2шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
15
F12296
PANEL - rear
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
WASHER - 5/16" plain (195-521)
2шт.
16
F12294
PANEL - R.H.
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
2шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
17
F10587
ROD - for F78871 door (Ref. 19)
1шт.
WASHER - 5/16" plain (95-5)
2шт.
18
F10588
COTTER - hair pin, For F10587 rod (Ref. 17)
2шт.
19
F78871
DOOR - access
1шт.
20
F10028
SPRING - retractable knife
12шт.
21
F10830
KNIFE - retractable
12шт.
PIN - 1/4" x 1" cotter (132-146)
12шт.
22
132-67
COTTER PIN,5/32" x 3/4"
Pin, Split (Cotter), 5/32" x 3/4"
12шт.
23
F79121
KNIFE - rotating (Split)
13шт.
24
N4261
KEY - (3/16" x 1/4" x 2") For rotating knives (Ref. 23)
13шт.
Выбрано товаров: 42
