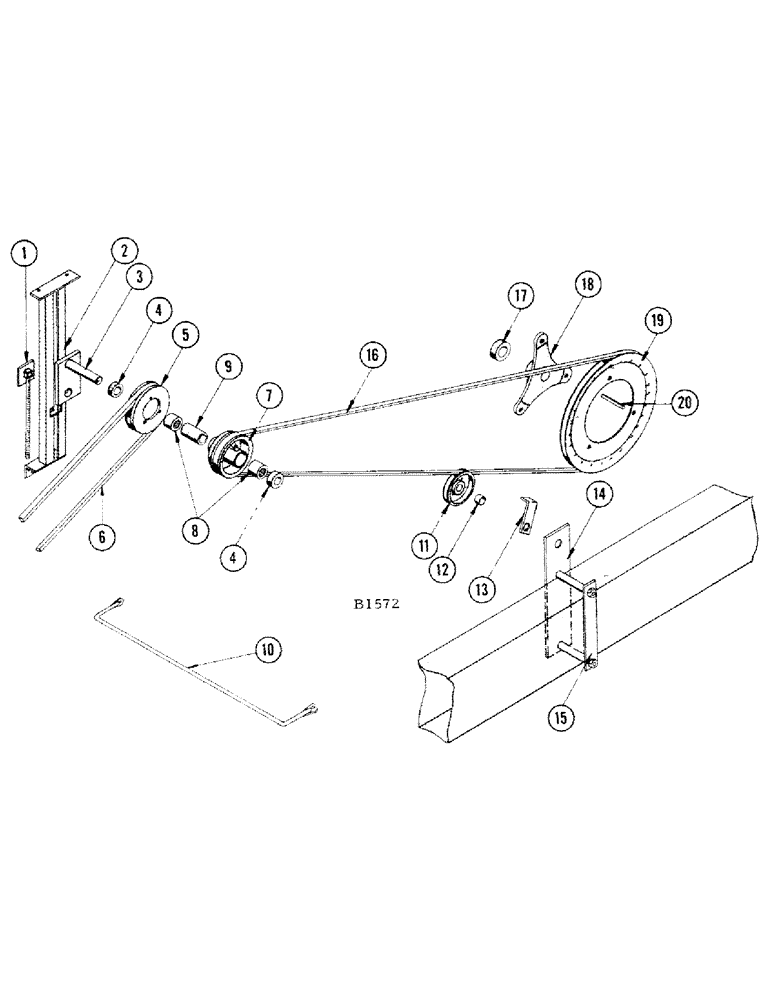

Запчасти Case IH 1010 (194) - CUTTER AND SPREADER DRIVE, POLARIS STRAWCHOPPER ATTACHMENT, BEFORE SERIAL NUMBER 8262501 (73) - RESIDUE HANDLING
№
Артикул
Название
Примечание
Количество
1
F78532
SCREW - (18") idler adjusting
1шт.
NUT - 1/2" N.C. hex. (25-108) plain wshr. (95-8)
1шт.
2
F78531
BRACKET - idler
1шт.
BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) nut (25-106)
2шт.
3
F78533
PLATE - face, with shaft, For idler adjusting
1шт.
BOLT - 3/4" x 2" N.C. hex. (13-1232) plain wshr. (95-12)
1шт.
4
F10282
COLLAR - set, For face plate
2шт.
SCREW - 3/8" x 3/8" set (83-66)
2шт.
5
F1321
SHEAVE - (8" O.D.) idler
1шт.
BOLT - 5/16" x 1" N.C. hex. (13-516) nut (25-105)
3шт.
6
F10586
"V" BELT - rear, cutter and spreader drive
1шт.
7
F78529
PULLEY - intermediate idler
1шт.
8
F10283
BEARING - (Torrington #BR1616)
2шт.
9
O7961HT
SPACER - (1" pipe x 2" long)
1шт.
F10739
RACE - bearing (Inside F10283 bearing) For shaft of F78533 (Not shown)
2шт.
10
F12339
RETAINER - primary belt
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
1шт.
BOLT - 1/4" x 3/4" N.C. hex. (113-3) nut (129-101)
1шт.
11
F76166
SHEAVE - (6-3/4" O.D.) idler, with self containing bearing
1шт.
BOLT - 5/8" x 2-1/2" N.F. hex. (13-1040) nut (25-1010)
1шт.
WASHER - 5/8" plain (95-10) L.W. (92-10)
1шт.
12
O384N
SPACER
- for F76166 idler pulley (Ref. 11)
1шт.
13
F10007
BRACKET - belt guide
1шт.
14
F10008
ARM - for belt guide sheave
1шт.
BOLT - 3/8" x 6" N.C. hex. (13-696) nut (25-106)
2шт.
15
F10009
STRAP - belt guide arm
1шт.
16
F10280
BELT
"V" BELT - front, cutter and spreader drive
1шт.
17
O874CS
X
SPACER - (1-1/2" pipe x 1/2" long) For F1288 hub (Ref. 18)
1шт.
18
F1288
HUB - drive, For F77993 sheave when machines are equipped with chain cylinder drive
1шт.
BOLT - 3/8" x 1" N.C. hex. (13-616) nut (25-106)
3шт.
WASHER - 3/8" plain (95-6) L.W. (92-6)
3шт.
19
F77993
SHEAVE - (20" O.D.) cutter drive
1шт.
BOLT - 3/8" x 5/8" N.C. hex. (13-610) L.W. (92-6)
3шт.
20
O8065HT
KEY
- (3/8" x 3/8" x 1-7/16") For F1288 hub (Ref. 18)
1шт.
Выбрано товаров: 34
