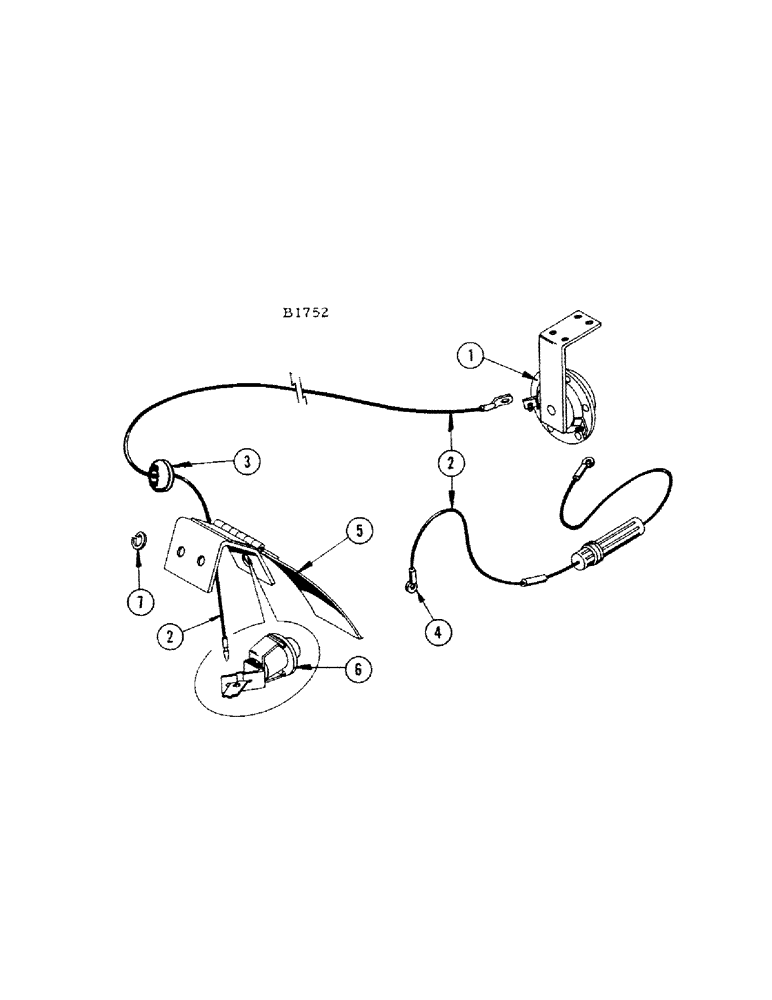

Запчасти Case IH 1010 (194[A]) - WARNING DEVICE ATTACHMENT, FOR POLARIS OR INNES, STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F79365

HORN

- (12 volt) warning device, warning device attachment for polaris or innes strawhopper attachment

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. (175-400) nut (129-101), warning device attachment for polaris or innes strawhoppers attachment

2шт.

WASHER - 1/4" plain (195-518), warning device attachment for polaris or innes strawhopper attachment

2шт.

2

F79367

WIRE - (30 ft. long) switch to horn and horn to engine coil, warning device attachment for polaris or innes strawhopper attachment

1шт.

3

F11046

GROMMET - rubber, For wire hole in rear hood, warning device attachment for polaris or innes strawhoppr attachment

1шт.

4

F11047

TERMINAL - ring, For F79367 wire assembly, warning device attachment for polaris or innes strawhopper attachment

1шт.

5

F79366

BRACKET - switch, with trip arm safety alarm (Bolts on inside of rear hood), warning device attachment for polaris or innes strawhopper attachment

1шт.

SCREW - 3/16" x 1/2" N.C. mach. (173-212) nut (129-17), warning device attachment for polaris or innes strawhopper attachment

2шт.

6

F11044

SWITCH - (12 volt) horn, warning device attachment for polaris or innes strawhopper attachment

1шт.

7

F11045

WASHER - (1-1/4" O.D. x 1/4" I.D.) For 173-212 mach. screw of F79366 bracket, warning device attachment for polaris or innes strawhopper attachment

2шт.
