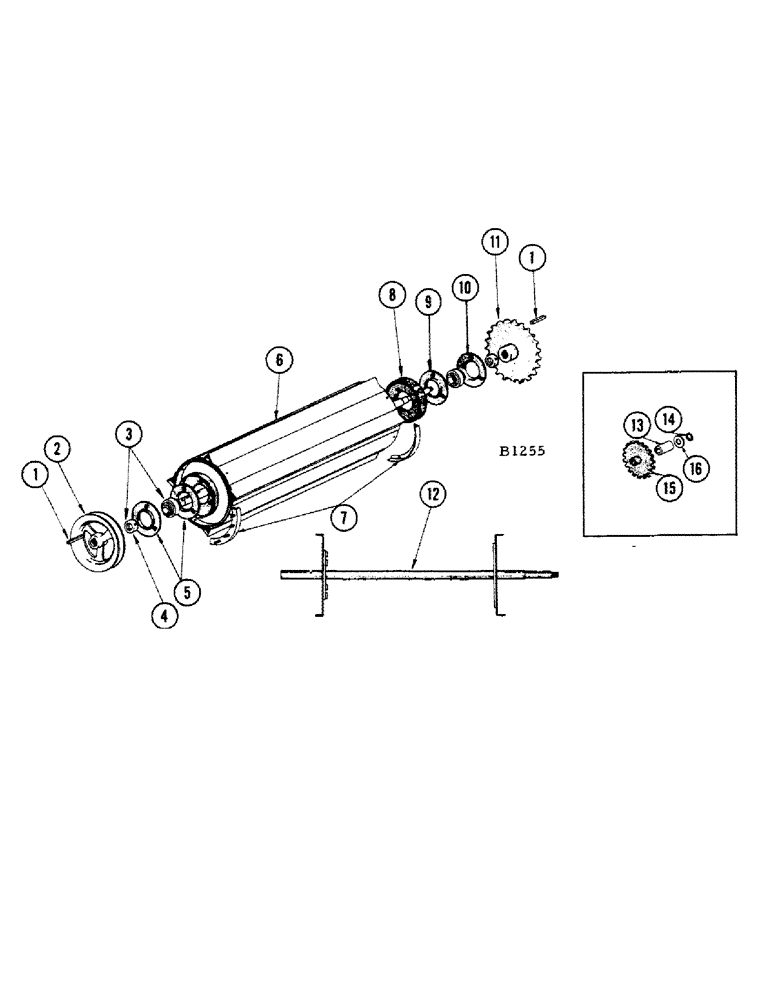

Запчасти Case IH 1010 (128) - BEATER (72) - SEPARATION

1

O909CK

KEY - (5/16" x 5/16" x 1-5/8")

2шт.

2

F1102

SHEAVE - (7-1/4" O.D.) R.H. (500 RPM)

1шт.

SCREW - 5/16" x 3/4" N.C. cup pt. set (85-512) and jam nut (25-145)

1шт.

3

F86214

BEARING ASSY,31.75mm ID x 72mm OD x 19mm W

BEARING - (Fafnir #G1104KRRB) (Serial #8262501 and after)

2шт.

O885CB

COLLAR

1шт.

F86298

BEARING ASSY

BEARING - (Fafnir #1104 KRRB) (Before serial #8262501)

2шт.

4

O885CB

COLLAR

1шт.

5

T17277

FLANGE

- for F86298 bearing

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

6шт.

6

F86710

BEATER - less shaft (Serial #8262501 and after)

1шт.

F79336

BEATER - less shaft (Before serial #8262501)

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) L.W. (92-5)

6шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) L.W. (92-5)

6шт.

7

F79911

SHIELD - beater

2шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

8шт.

8

F11019

PLATE - mounting, beater bearing

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

8шт.

9

F12596

FLANGETTE - inner (Serial #8262501 and after)

2шт.

10

F12597

FLANGETTE - outer (Serial #8262501 and after)

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

6шт.

11

F86067

SPROCKET - (40T) beater drive

1шт.

12

F86709

SHAFT - beater (Serial #8262501 and after)

1шт.

F79275

SHAFT - beater (Before serial #8262501)

1шт.

13

F11053

BOLT

SPACER - header drive sprocket

1шт.

14

O3345N

RING, SNAP

SNAP RING

1шт.

15

F79375

SPROCKET - header drive

1шт.

16

O2368FH

WASHER - (1-3/16" I.D. x 2-1/8" O.D. #20 ga.)

1шт.

F7872

CHAIN - beater drive (Use 2-B12478 chain and 1-B12480 #60 roller chain) See chain page

1шт.
