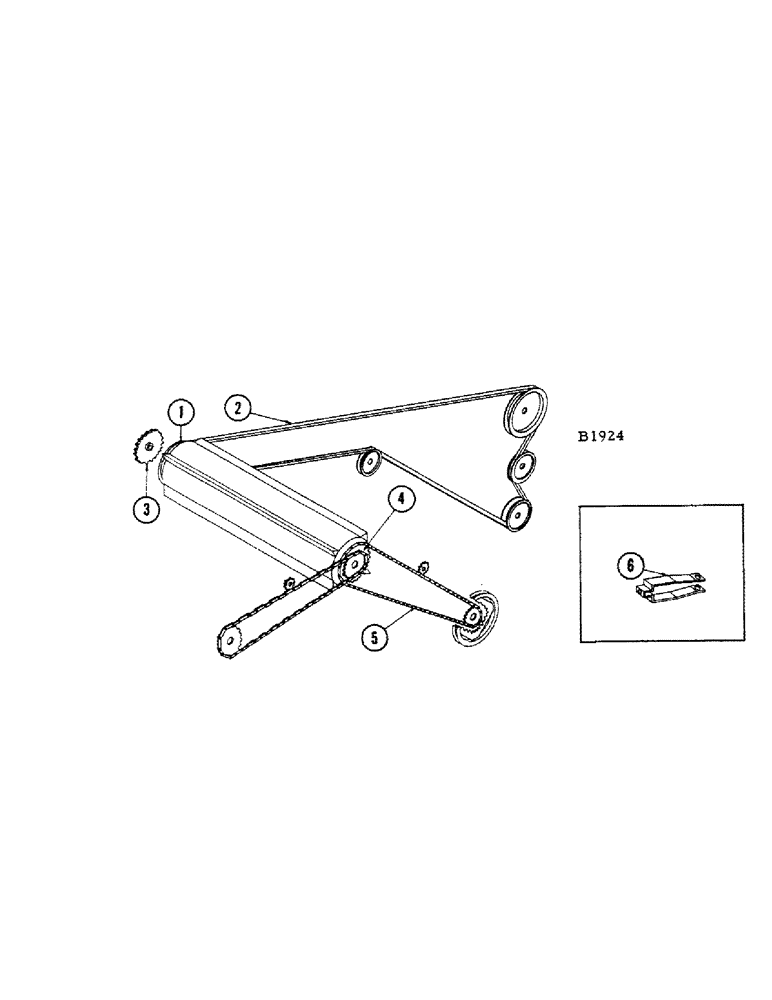

Запчасти Case IH 1010 (128[B]) - SLOW BEATER SPEED ATTACHMENT, BEFORE SERIAL NUMBER 8262501 (72) - SEPARATION

1

F1308

SHEAVE - (11-3/16" O.D.) shoe, grain auger drive (Displaces F1102)

1шт.

2

F10653

"V" BELT - shoe, grain auger drive (Displaces F7865)

1шт.

3

F79631

SPROCKET - (50T) drive, distributor auger jackshaft drive

1шт.

4

F86188

SPROCKET - (65T) beater drive (Displaces F86067)

1шт.

5

F10654

X

CHAIN - extension, For F7872 beater drive chain (Use 2-B12481 chain, 1-B12509 conn. link and 1-B12511 roller link #60) slow speed beater attachment

1шт.

6

F12217

STRAP - control, main drive idler (See F10900)

1шт.

F11338

X

CHAIN - extension, For F11149 distribution auger jackshaft drive (Use 1-B12472 chain, 1-B12501 conn. link and 1-B12503 roller link #40) Not shown

1шт.
