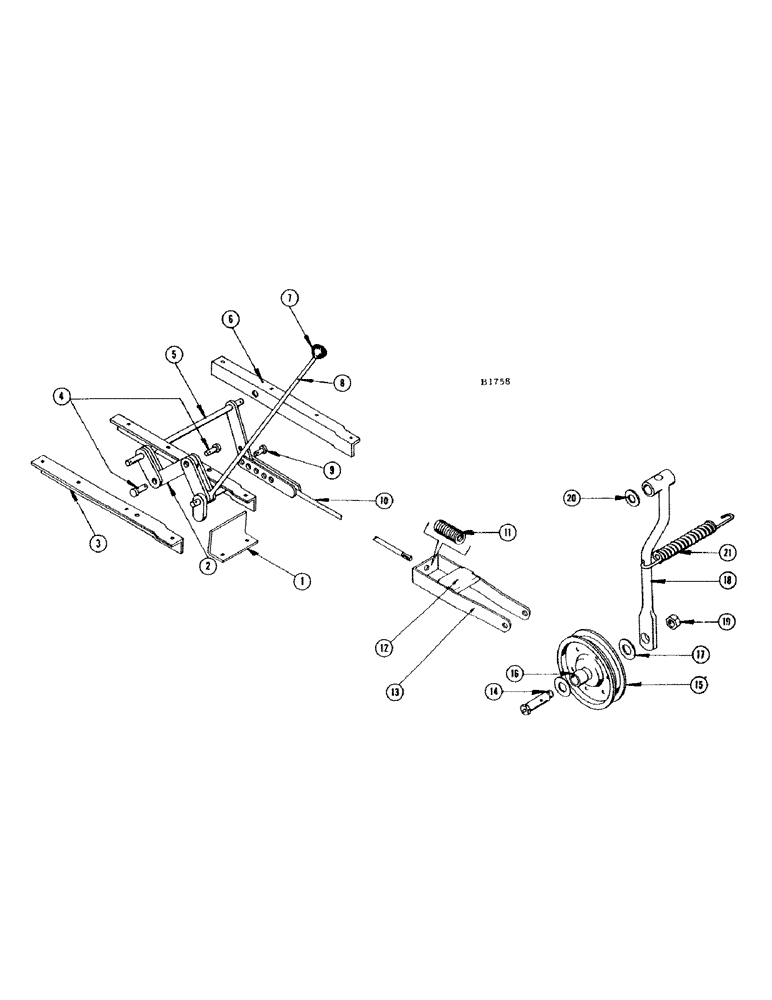

Запчасти Case IH 1010 (136) - MAIN COMBINE DRIVE IDLER ASSEMBLY (66) - THRESHING

1

F12188

STOP - drive throwout lever

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk. and nut (25-105)

2шт.

2

F8185

LINK - control

1шт.

3

F11951

SUPPORT - L.H., control lever

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. and nut (25-104)

1шт.

4

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - control link

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

5

F86096

SHAFT - control

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

F11957

SUPPORT - R.H., control lever

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. and nut (25-104)

3шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk. and nut (25-104)

1шт.

7

A26727

BALL

KNOB - control lever

1шт.

8

F76813

LEVER - control

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

F86155

ROD - control

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

195-25

WASHER,3/8"

- flat 3/8"

1шт.

11

F10901

SPRING

1шт.

12

F11256

DEFLECTOR - belt

1шт.

13

F10900

STRAP - control (See F12217 w/slow beater speed attachment)

1шт.

14

F7914

BOLT - shoulder, idler sheave

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

15

F86602

SHEAVE - idler

1шт.

16

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARNG

1шт.

17

O3739CK

X

WASHER - shoulder bolt

2шт.

18

F76973

ARM - tightener

1шт.

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

FITTING - grease, 1/4" - 28

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

19

131-36

LOCK NUT,5/8"-18

NUT - 5/8" N.F. stop, shoulder bolt

1шт.

20

195-49

WASHER

- 7/8" flat, tightener arm

1шт.

21

F6940

SPRING - disengagement

1шт.
