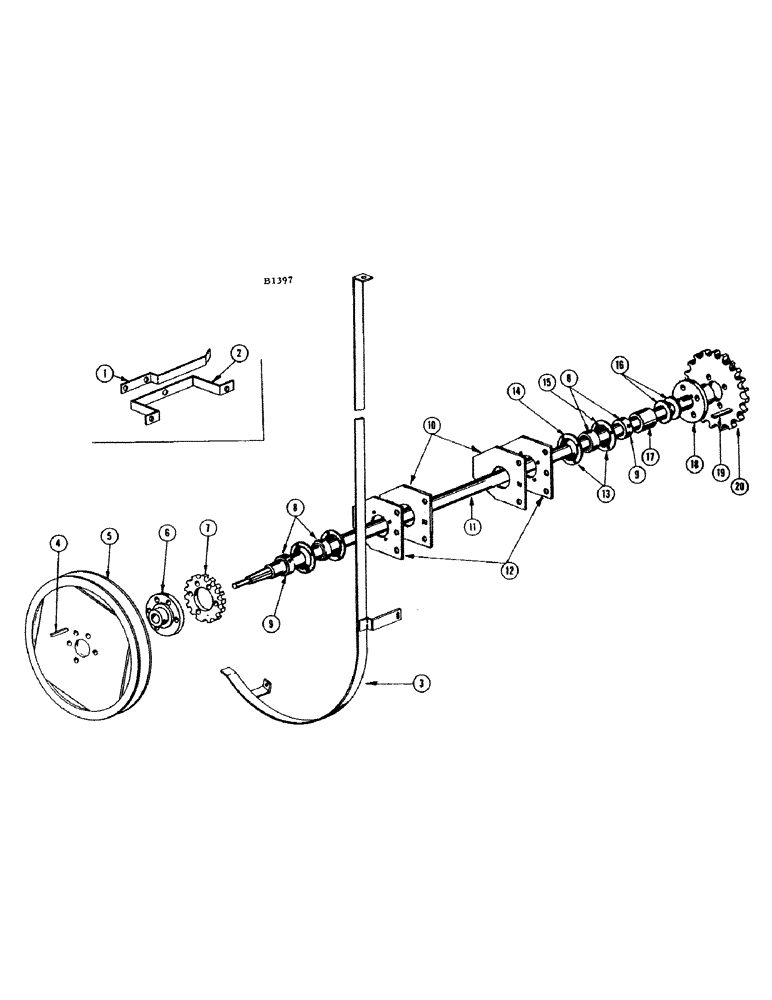

Запчасти Case IH 1010 (134) - MAIN COMBINE DRIVE SHAFT, CHAIN DRIVE CYLINDER (66) - THRESHING

1

F11995

GUIDE - main drive belt, R.H. (Grain bin only)

1шт.

2

F12463

GUIDE - L.H. main combine drive belt (Grain bin) Replaces F12068 when stocks are exhausted

1шт.

F12068

GUIDE - L.H. main combine drive belt (Grain bin) Replaced by F12463 when stocks are exhausted

1шт.

3

F79750

GUIDE - main drive belt

1шт.

4

O909CK

KEY - for ref. 6

1шт.

5

F80956

SHEAVE - main combine drive

1шт.

6

F1393

HUB - main drive sheave

1шт.

NUT - 7/8" N.F. ESNA (131-17) plain washer (195-49)

1шт.

7

F7849

SPROCKET - (25T)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

5шт.

8

F77924

BEARING

- (Fafnir #1108KRRB) Before serial #8262501

2шт.

O2991CS

X

COLLAR

1шт.

F84032

BEARING

- (Fafnir #G1108KRRB) (Serial #8262501 and after)

2шт.

9

O2991CS

X

COLLAR

1шт.

10

F8945

PLATE - cover

2шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106)

4шт.

BOLT - 3/8" x 1-1/4" #3 hd. N.C. plow (18-620) nut (25-106)

2шт.

11

F9859

SHAFT - main drive (Chain cylinder drive) See F79735

1шт.

12

F8942

BRACKET - bearing, R.H. and L.H.

2шт.

13

F8944

FLANGE

- for F77924 bearing (Used w/chain driven cylinder) See F10991

4шт.

BOLT - 1/2" x 1-1/4" #3 hd. N.C. plow (18-820) nut (25-108)

4шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820) nut (25-108)

4шт.

14

F12599

FLANGE

TTE - inner (Serial #8262501 and after)

2шт.

15

F12600

FLANGETTE - outer (Serial #8262501 and after)

2шт.

BOLT - 1/2" x 1-1/4" #3 hd. N.C. plow (18-820)

4шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820) dbl. nut (25-108)

4шт.

16

O31399HT

WASHER

2шт.

17

O7372HT

SPACER

1шт.

18

F76882

HUB - with flange

1шт.

19

O1259AB

KEY - for ref. 18

1шт.

20

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive

1шт.
