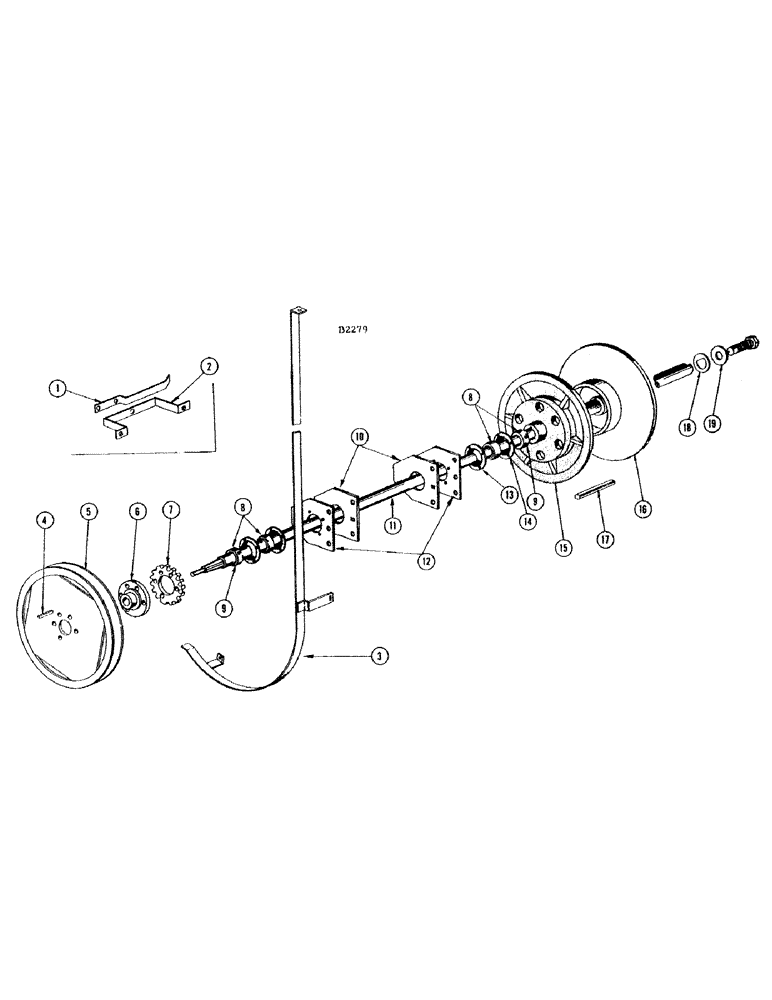

Запчасти Case IH 1010 (132) - MAIN COMBINE DRIVE SHAFT, VARIABLE SPEED CYLINDER DRIVE, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F11995

GUIDE - R.H., main drive belt (Grain bin only)

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

and nut (129-122) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

2

F12463

GUIDE - L.H., main combine drive belt (Grain bin)

1шт.

3

F79750

GUIDE - main drive belt

1шт.

F9935

V-BELT

"V" BELT - main combine drive

1шт.

F14847

V-BELT,1.25" W

Main Combine Drive, Pre-Stretched 1.25" W

1шт.

4

O909CK

KEY - main drive sheave hub

1шт.

5

F80956

SHEAVE - main combine drive

1шт.

6

F1393

HUB - main drive sheave

1шт.

131-17

LOCK NUT

NUT - 7/8" N.F. ESNA and flat wshr. (195-49)

1шт.

7

F7849

SPROCKET - (25T)

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex. and nut (25-116)

5шт.

8

F84032

BEARING

- drive shaft housing

2шт.

9

F62107

COLLAR

1шт.

10

F8945

PLATE - cover

2шт.

11-624

BOLT

- 3/8" x 1-1/2" rhd. sq. nk. and nut (25-106)

4шт.

18-620

BOLT - 3/8" x 1-1/4" N.C. plow and nut (25-106)

2шт.

11

F12612

SHAFT - main drive

1шт.

12

F8942

BRACKET - bearing, R.H. and L.H.

2шт.

13

F12599

FLANGE

TTE - inner

2шт.

14

F12600

FLANGETTE - outer

2шт.

18-820

PLOW BOLT

BOLT - 1/2" x 1-1/4" N.C. #3 plow

4шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. and l.w. (92-8)

8шт.

15

F1920

SHEAVE HALF - stationary, cylinder drive

1шт.

16

F1925

SHEAVE HALF - movable, cylinder drive

1шт.

17

F12613

KEY - stationary sheave

1шт.

18

F12636

WASHER

- "D"

1шт.

19

F12637

WASHER

1шт.
