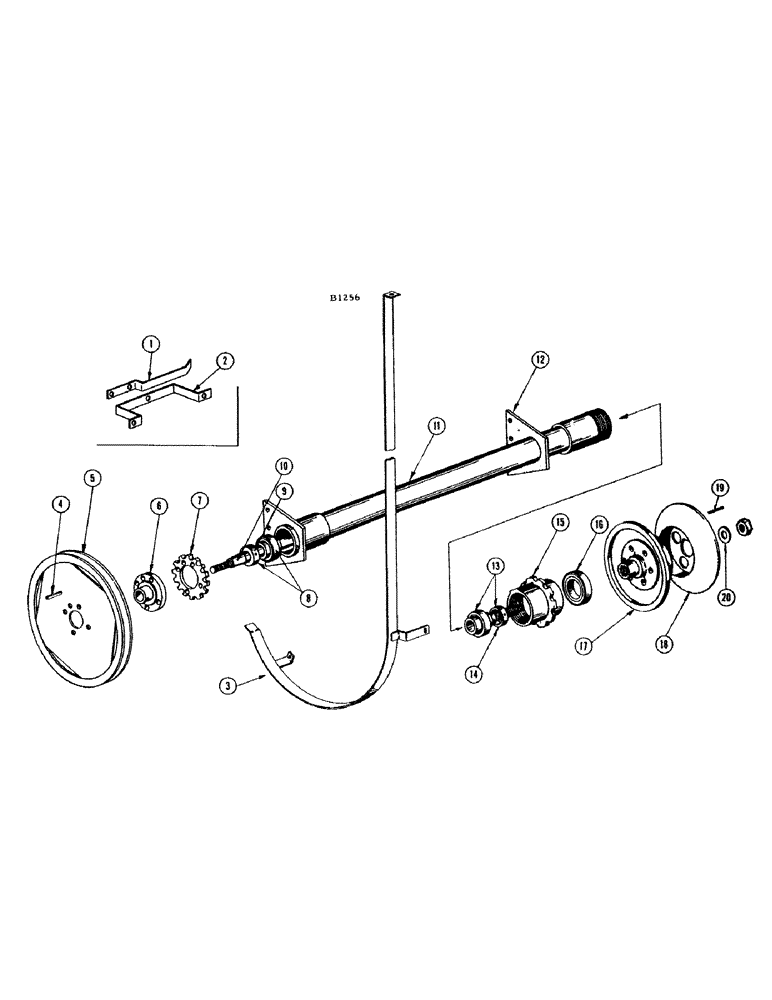

Запчасти Case IH 1010 (130) - MAIN COMBINE DRIVE SHAFT AND HOUSING, VARIABLE SPEED CYLINDER DRIVE, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

1

F11995

GUIDE - R.H., main drive belt (Grain bin only)

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

and nut (129-122) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

2

F12463

GUIDE - L.H., main combine drive belt (Grain bin) Replaces F12068 when stocks are exhausted

1шт.

F12068

GUIDE - L.H., main combine drive belt (Grain bin) Replaced by F12463 when stocks are exhausted

1шт.

3

F79750

GUIDE - main drive belt

1шт.

F9935

V-BELT

"V" BELT - main combine drive

1шт.

F14847

V-BELT,1.25" W

Main Combine Drive, Pre-Stretched 1.25" W

1шт.

4

O909CK

KEY - main drive sheave hub

1шт.

5

F80956

SHEAVE - main combine drive

1шт.

6

F1393

HUB - main drive sheave

1шт.

131-17

LOCK NUT

NUT - 7/8" N.F. ESNA and flat wshr. (195-49)

1шт.

7

F7849

SPROCKET - (25T)

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex. and nut (25-116)

5шт.

8

F76024

BEARING - L.H., drive shaft housing

1шт.

9

F62107

COLLAR

1шт.

10

F12516

SHAFT - main drive, Serial Range: (#8243201-#8262501)

1шт.

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/18" str.

1шт.

F79735

SHAFT - main drive, with ref. 19 key (Before #8243201)

1шт.

25-1318

SLOTTED NUT,1 1/8"-12, G5

NUT - 1-1/8" N.F. slotted hex.

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

11

F76938

HOUSING - main drive shaft

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , and nut (25-106) Short NK, 3/8"-16 x 1", G2

4шт.

18-616

BOLT

- 3/8" x 1" #3 plow and nut (25-106)

2шт.

12

F7795

PLATE - support, R.H. for drive shaft housing

1шт.

13

F76023

BEARING - R.H., drive shaft housing

1шт.

14

F62107

COLLAR

1шт.

15

F1207

FITTING

COLLAR - (w/24T sprocket) speed adjusting, For cylinder drive

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

16

F6468

BEARING - adjusting collar

1шт.

17

F76054

SHEAVE HALF - moveable, cylinder drive

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" - 30 degrees

1шт.

18

F1397

SHEAVE HALF - stationary, main drive, Serial Range: (#8243201-#8262501)

1шт.

F1115

SHEAVE HALF - stationary, main drive (Before #8243201)

1шт.

19

F11497

KEY - stationary sheave half (Before #8243201)

1шт.

20

F10886

WASHER - hardened, drive shaft, Serial Range: (#8243201-#8262501)

1шт.

O3898BF

WASHER - drive shaft (Before #8243201)

2шт.

O7372HT

SPACER - drive shaft (Not shown)

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
