Запчасти Case IH 1010 (126) - SLOW CYLINDER SPEED ATTACHMENT, VARIABLE SPEED CYLINDER DRIVE BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

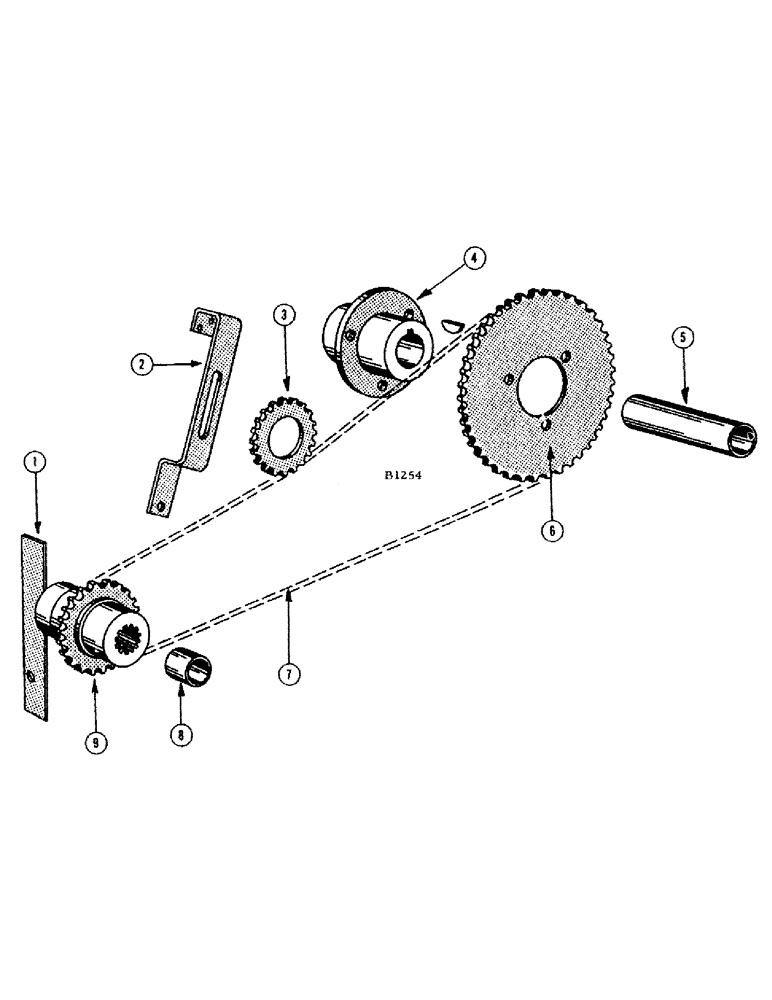

Схема запчастей Case IH 1010 - (126) - SLOW CYLINDER SPEED ATTACHMENT, VARIABLE SPEED CYLINDER DRIVE BEFORE SERIAL NUMBER 8262501 (66) - THRESHING
4
5
7
8
3
1
2
6
9

№

Артикул

Название

Примечание

Количество

1

F9022

LOCK - sprocket (Bolts to rear cylinder post)

1шт.

2

F8684

BRACKET - tightener

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (114-601) nut (129-127)

1шт.

WASHER - 5/8" plain (195-108)

5шт.

3

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener

1шт.

4

F77678

HUB - with flange, cylinder drive sprockets

1шт.

KEY - #29 Woodruff (126-48)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123)

3шт.

5

F8677

SPACER - (1-1/2" O.D. x 6-13/16" long) cylinder shaft

1шт.

6

F18085

SPROCKET - (52T) cylinder drive, driven

1шт.

F18086

SPROCKET - (48T) cylinder drive, driven

1шт.

F18087

SPROCKET - (44T) cylinder drive, driven

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123)

3шт.

7

F8682

X

CHAIN - cylinder drive (Use 2-B12478 chain, 1-B12479 chain, 1-B12481 chain and 1-B12510 conn. link #60)

1шт.

F8683

EXTENSION - chain (Use B12480)

1шт.

8

F8681

SPACER - (1-1/2" O.D. x 2-1/16" long) main drive shaft

1шт.

9

F1240

SPROCKET - (14T) cylinder drive, splined hub

1шт.

B12509

DRAG LINK

LINK - connecting, #60 roller chain, chain drive cylinder

1шт.

B12510

CHAIN LINK

LINK - offset, #60 roller chain, chain drive cylinder

1шт.

B12511

LINK

- roller, #60 roller chain (Before serial #8262501), chain drive cylinder

1шт.

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener (Before serial #8262501), chain drive cylinder

1шт.

F18085

SPROCKET - (52T) cylinder drive, driven, chain drive cylinder

1шт.

F18086

SPROCKET - (48T) cylinder drive, driven, chain drive cylinder

1шт.

F18087

SPROCKET - (44T) cylinder drive, driven, chain drive cylinder

1шт.

F77674

SPROCKET - (44T) cylinder drive (Before serial #8262501), chain drive cylinder

1шт.

SCREW - 3/8" x 3/4" N.C. cup pt. sq. hd. set (85-612) and jam nut (129-143), chain drive clinder

2шт.

O2018AB

X

KEY - (3/8" x 3/8" x 2-1/2") For F77674 sprocket, chain drive cylinder

1шт.

F86863

SPROCKET AND HUB - (14T) cylinder drive (Serial #8262501 and after), chain drive cylinder

1шт.

Выбрано товаров: 29
