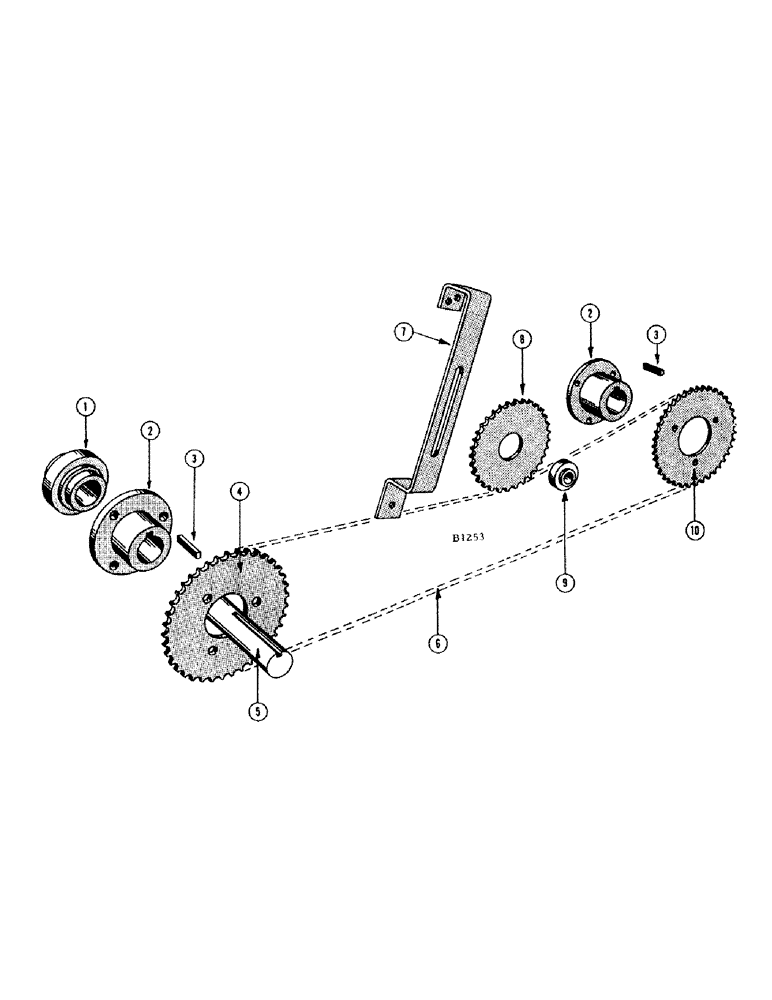

Запчасти Case IH 1010 (124) - CYLINDER, CHAIN DRIVE ATTACHMENT, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F84032

BEARING

- (Fafnir G1108KRRB) main drive shaft (Ref. only)

1шт.

O2991CS

X

COLLAR - (Not shown)

1шт.

2

F86861

FLANGE - sprocket mounting

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123)

6шт.

F12853

SPACER - (2" O.D. x 5-7/8" long) (Not shown)

2шт.

3

F12613

KEY - for ref. 2 and 5

2шт.

4

O8382HT1

SPROCKET - (21T) cylinder drive

1шт.

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

3шт.

5

F12612

SHAFT - drive, main combine (Ref. only)

1шт.

6

F9024

X

CHAIN - cylinder drive (Use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link and 4-B12511 roller links #60)

1шт.

7

F86859

BRACKET - idler

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (114-601) nut (129-127)

1шт.

WASHER - 5/8" plain (195-108)

4шт.

8

F77429

SPROCKET - (21T) idler, cylinder drive

1шт.

9

F7293

BEARING

- (Fafnir #203PP6)

1шт.

10

F8978

SPROCKET - (33T) cylinder drive

1шт.

O2918BF1

SPROCKET - (30T) cylinder drive

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

3шт.
