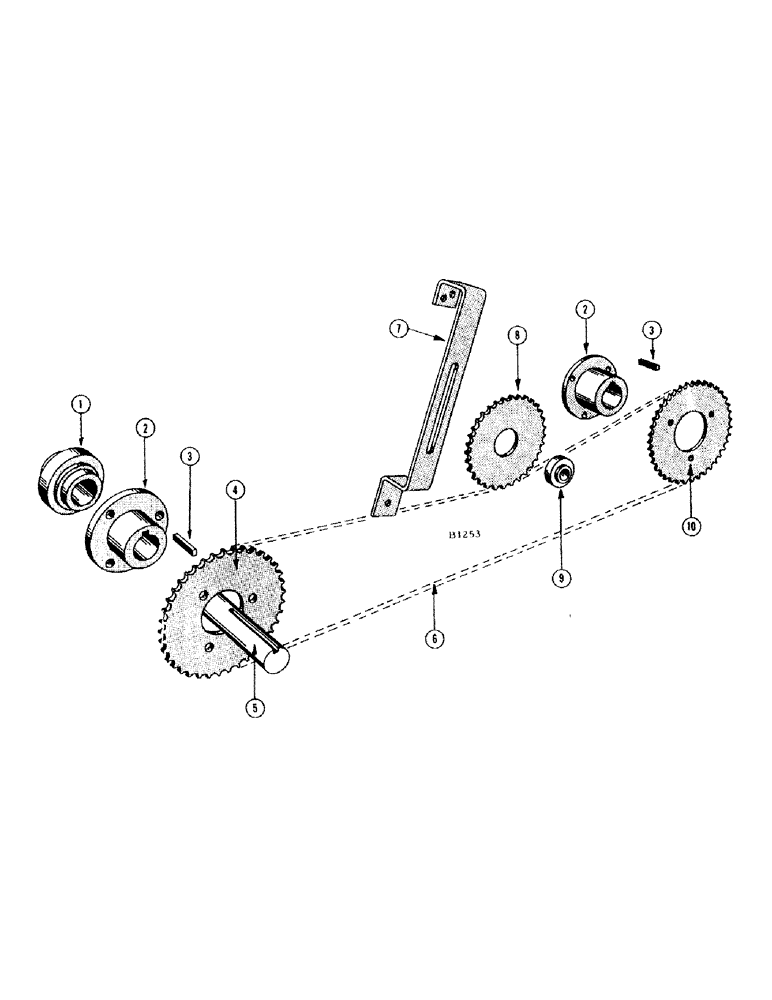

Запчасти Case IH 1010 (122) - CYLINDER, CHAIN DRIVE ATTACHMENT, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

1

F9623

BEARING - (Fafnir #1108KRR) main drive shaft

1шт.

2

F1335

HUB - main drive shaft, quick change field conversion to chain drive (See F76882)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) L.W. (192-21)

3шт.

F76882

HUB - with flange, for cylinder drive and driven sprockets (If used) See F1335 and F77678

2шт.

SCREW - 3/8" x 3/4" N.C. cup pt. sq. hd. set (85-612) and jam nut (25-146)

4шт.

F77678

HUB - cylinder shaft, quick change field conversion to chain drive (See F76882)

1шт.

KEY - #29 Woodruff (126-48)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123)

3шт.

3

O1259AB

KEY - (3/8" x 3/8" x 2") hubs

2шт.

F8677

SPACER - (1-1/2" O.D. x 6-13/16" long) cylinder shaft (Not shown)

1шт.

4

O8382HT1

SPROCKET - (21T) cylinder drive

1шт.

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

3шт.

5

F9624

SHAFT - (55-1/8" long) main drive (Conversion)

1шт.

6

F9024

X

CHAIN - cylinder drive (Use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link and 4-B12511 roller links #60)

1шт.

7

F86077

BRACKET - tightener, cylinder drive

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (114-601) nut (129-127)

1шт.

WASHER - 5/8" plain (195-108)

5шт.

8

F77429

SPROCKET - (21T) tightener, cylinder drive

1шт.

9

F7293

BEARING

- (Fafnir #203PP6)

1шт.

10

F8978

SPROCKET - (33T) cylinder drive

1шт.

O2918BF1

SPROCKET - (30T) cylinder drive

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

3шт.
