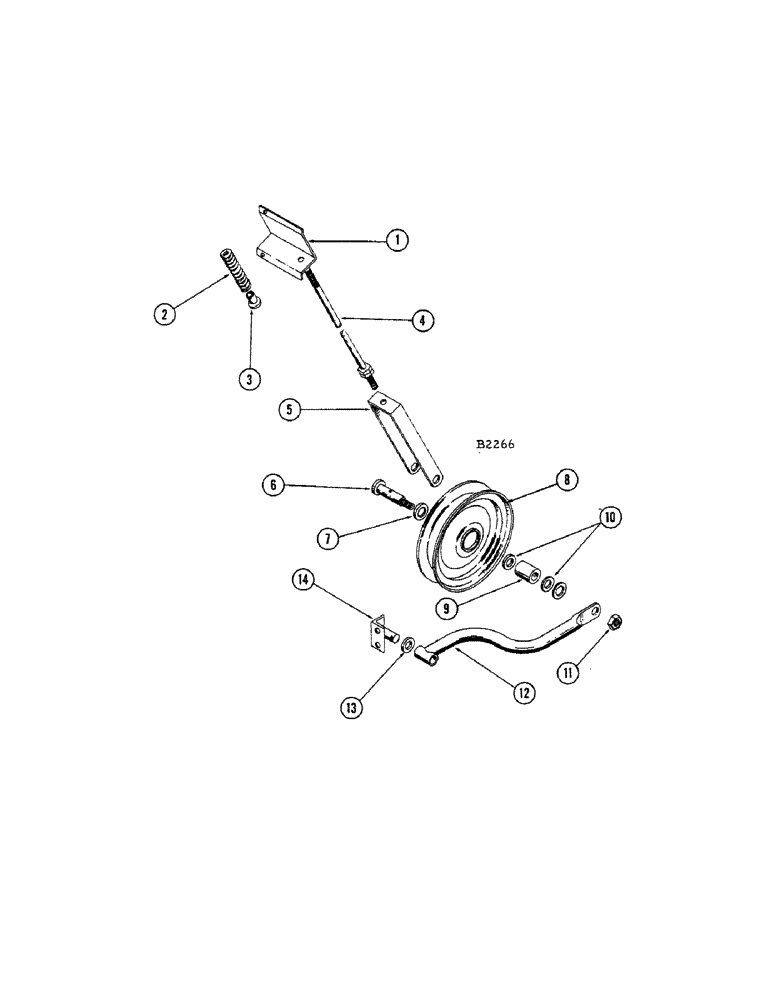

Запчасти Case IH 1010 (120) - VARIABLE SPEED CYLINDER DRIVE BELT TAKE-UP ASSEMBLY, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F12611

ANCHOR

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

2

126EB

SPRING - compression

1шт.

3

F19583

BUSHING - plastic

1шт.

4

F12608

SCREW - idler adjusting

1шт.

NUT - 5/16" N.F. ESNA #29NEO54 (131-3)

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

NUT - 5/16" N.F. hex. (129-122)

2шт.

FLATWASHER - 3/8" SAE std. (95-6)

1шт.

5

F12609

STRAP - control

1шт.

6

F12610

SHAFT

- idler

1шт.

FITTING - #5000 Lincoln (219-1)

1шт.

7

O3739CK

X

WASHER - flat, 1 each side of idler sheave

2шт.

8

F86719

SHEAVE - idler

1шт.

9

O2167CK

X

BEARING - needle

1шт.

10

F12607

OIL SEAL

SEAL - oil (#9910 type P-2)

2шт.

11

131-37

LOCK NUT,3/4"-16

NUT - #49 NTE 126 ESNA, for ref. 6

1шт.

12

F86717

ARM - pivot

1шт.

FITTING - #5042 Lincoln (219-20)

1шт.

13

O479B

WASHER

1шт.

14

F86716

PIVOT

1шт.

PIN - 1/2" x 1-1/8" cotter (132-49)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) dbl. nut (25-114)

2шт.
