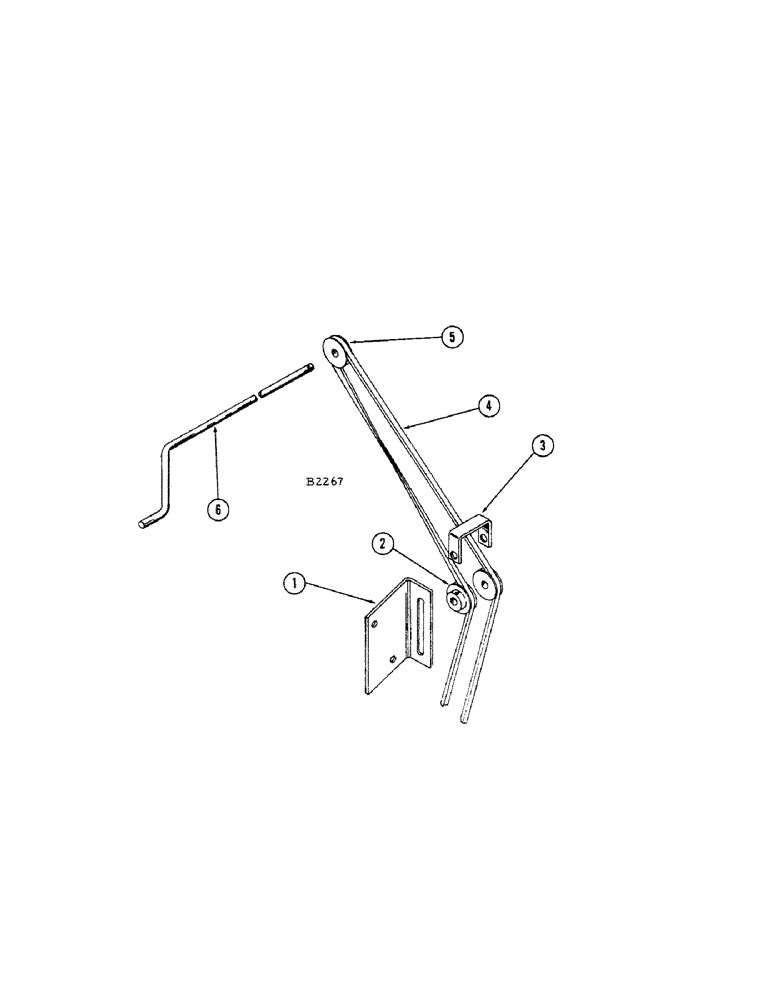

Запчасти Case IH 1010 (120[A]) - CYLINDER SPEED CONTROL CRANK ADJUSTMENT, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F12638

BRACKET - pulley, cylinder speed control crank asjustment serial no. 8262501 and after

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114), cylinder speed control crank adjustment serial no. 8262501 and after

2шт.

2

F1933

PULLEY - V.S. cylinder control belt, cylinder control crank adjustment serial no. 8262501 and after

2шт.

3

F12643

TRAP - pulley belt, cylinder speed control crank adjustment serial no. 8262501 and after

1шт.

BOLT - 1/2" x 4" N.F. hex. (14-864) fl. wshr. (95-8), cylinder speed control crank adjustment serial no. 8262501 and after

1шт.

NUT - 1/2" N.F. hex. (25-118), cyclinder speed control crank adjustment serial no. 8262501 and after

2шт.

4

F12633

"V" BELT - cylinder speed control, cylinder speed control crank adjustment serial no. 8262501 and after

1шт.

5

F1932

PULLEY - V.S. crank, sylinder speed control crank adjustment serial no. 8262501 and after

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102), sylinder speed control crank adjustment serial no. 8262501 and after

1шт.

6

F12030

CRANK - cylinder speed control, cylinder speed control crank adjustment serial no. 8262501 and after

1шт.

PIN - 1/8" x 1" cotter (132-48), cylinder speed control crank adjustment serial no. 8262501 and after

2шт.

WASHER - 1/2" plain (195-106), sylinder speed control crank adjustment serial no. 8262501 and after

2шт.
