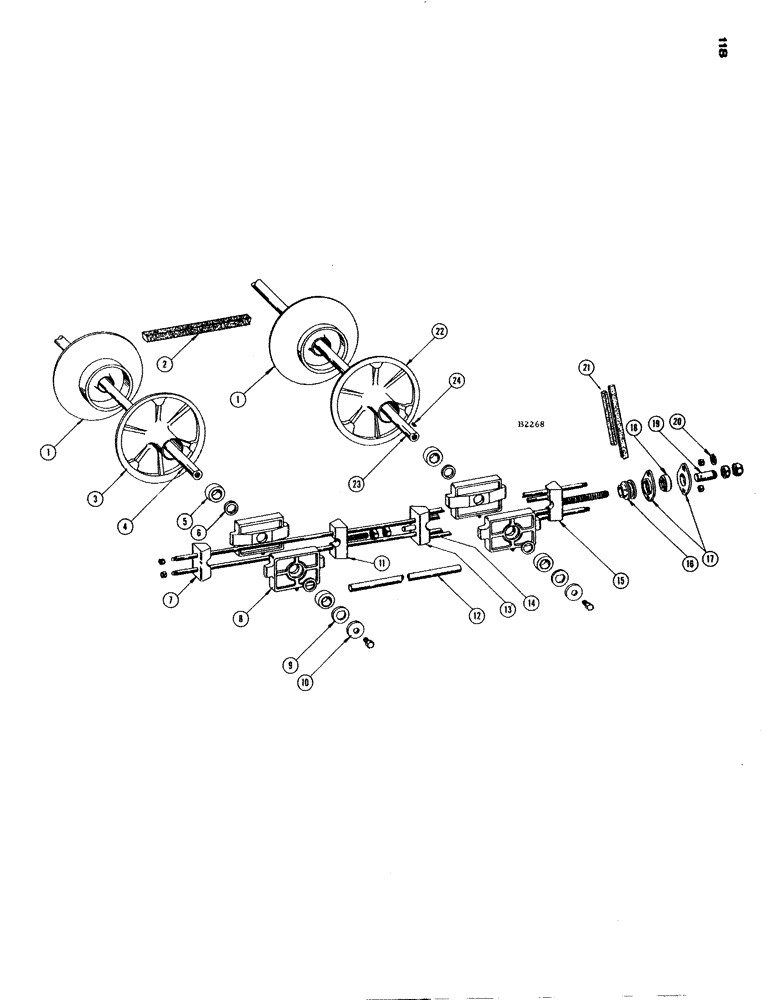

Запчасти Case IH 1010 (118) - VARIABLE SPEED CYLINDER DRIVE, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F1920

SHEAVE - half

2шт.

2

F12604

V-BELT,1.75" W

Variable Speed Cylinder Drive 1.75" W

1шт.

3

F1925

SHEAVE - half moveable

1шт.

FITTING - 1/8" #5000 Lincoln (219-1)

1шт.

4

F12612

SHAFT - drive, main combine

1шт.

BOLT - 3/4" x 1-1/4" N.C. hex. (13-1220) L.W. (92-12)

1шт.

5

F12626

X

BEARING - thrust

4шт.

6

F12625

RETAINER

- grease

4шт.

7

F1931

WEDGE - tension

1шт.

8

F1926

PLATE

BEARING PLATE

4шт.

FITTING - #5010 Lincoln (219-8)

4шт.

9

F12636

WASHER

- "D" (For ref. 4 and 23)

2шт.

10

F12637

WASHER - (For ref. 4 and 23)

2шт.

11

F86731

WEDGE - compression

1шт.

NUT - 5/8" N.C. hex. (25-1010)

2шт.

WASHER - 5/8" std. (195-41)

1шт.

12

F12635

STRUT - cylinder speed control

1шт.

13

F86730

WEDGE - tension

1шт.

14

F12632

ROD - adjusting

2шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

2шт.

15

F86729

SCREW - adjusting

1шт.

NUT - 3/4" N.F. hex. jam (129-288)

2шт.

NUT - 3/8" N.C. hex. (25-106)

4шт.

PIN - 1/8" x 3/4" groove type "A" (135-35)

2шт.

PIN - 3/16" x 1-1/4" groove type "A" (135-55)

1шт.

16

F1928

PULLEY

1шт.

PIN - 3/16" x 7/16" Driv-Loc type "A" (135-136)

1шт.

17

F12630

FLANGE

2шт.

18

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Use without collar)

1шт.

19

F12629

NUT - adjusting

1шт.

20

VT3526

SNAP RING

1шт.

21

F12633

BELT - V.S. pulley

1шт.

22

F1924

SHEAVE - half moveable

1шт.

FITTING - 1/8" #5000 Lincoln (219-1)

1шт.

23

F12591

SHAFT - cylinder, V.S. belt driven (Rub bar cylinder)

1шт.

F12592

SHAFT - cylinder, V.S. belt drive (Spike tooth cylinder)

1шт.

BOLT - 3/4" x 1-1/4" N.C. hex. (13-1220) L.W. (92-12)

1шт.

24

F12613

KEY - for F1920 sheave halves

2шт.
