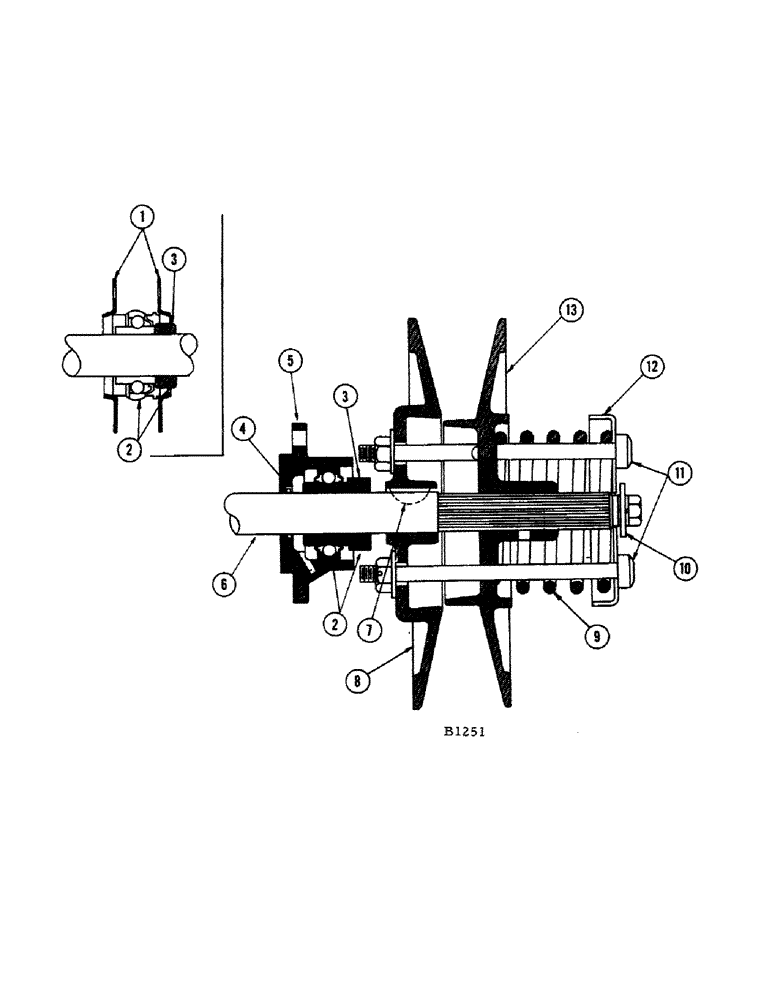

Запчасти Case IH 1010 (116) - CYLINDER DRIVE AND BEARINGS, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

1

F10991

FLANGE - cylinder bearing (Before #8243201) See ref. 5

2шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

5шт.

2

F77924

BEARING

- (Fafnir #1108 KRRB) cylinder shaft

1шт.

3

O2991CS

X

COLLAR

1шт.

4

O3717CS

SEAL - grease, cylinder bearing (#8243201 thru #8262501)

1шт.

5

F1396

HOUSING - bearing (#8243201 thru #8262501) Ref. 1

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

5шт.

PLUG - 1/8" sq. hd. pipe (221-11)

1шт.

6

F12517

SHAFT - cylinder, For V.S. belt driven rub bar cylinder (Replaces F11690)

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)

1шт.

F86003

SHAFT - cylinder, For V.S. belt driven spike tooth cylinder (Replaces F11691)

1шт.

7

F10717

KEY - (Also used, but not included with F12517)

1шт.

8

F1104

SHEAVE HALF - stationary (Inner) 490 RPM to 1280 RPM

1шт.

9

F10829

SPRING - tension, cylinder

1шт.

10

O558B

WASHER - (1-7/8" O.D. x 11/32" I.D. x 3/16" thick) R.H. end of cylinder shaft

1шт.

11

F6465

BOLT - spring guide

2шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

2шт.

NUT - 5/8" N.C. slotted (129-270) plain wshr. (195-541)

2шт.

12

F6464

END COVER - outer, For spring

1шт.

13

F76052

SHEAVE HALVE - movable, outer

1шт.

FITTING - 1/8" x 90 degree Lincoln #5400 (219-55)

1шт.

F12257

X

"V" BELT - cylinder drive, variable speed (Not shown) premium construction

1шт.
