(116[A]) - CYLINDER SPEED CONTROL CRANK ADJUSTMENT, BEFORE SERIAL NUMBER 8262501

Запчасти Case IH 1010 (116[A]) - CYLINDER SPEED CONTROL CRANK ADJUSTMENT, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

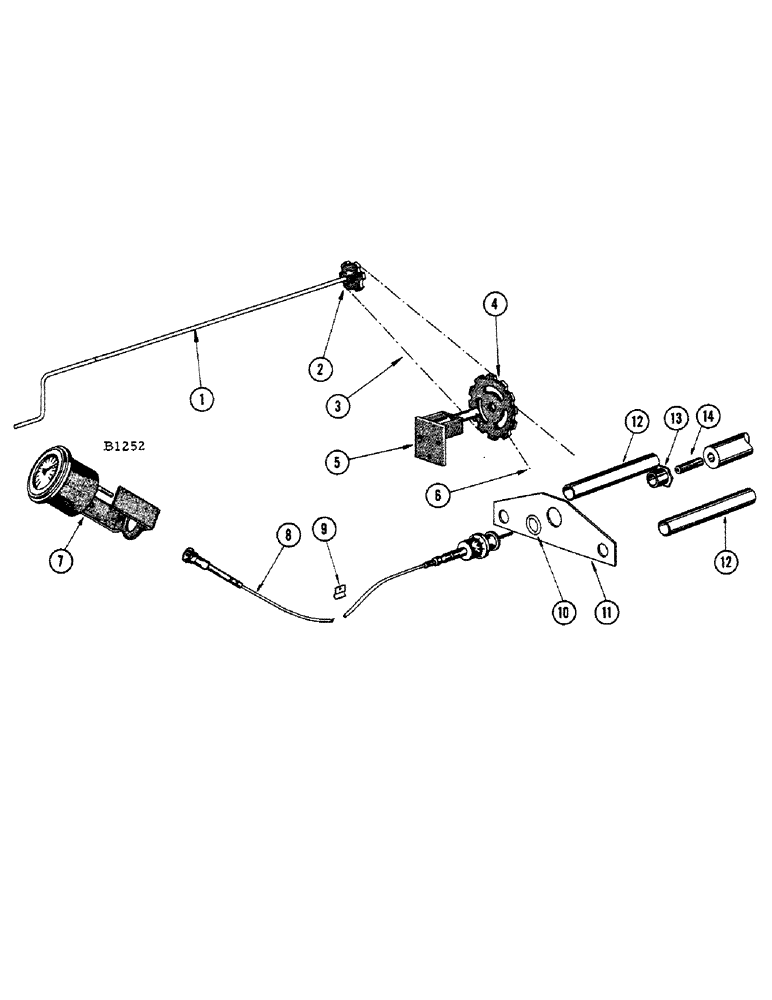

Схема запчастей Case IH 1010 - (116[A]) - CYLINDER SPEED CONTROL CRANK ADJUSTMENT, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING
7
1
6
4
10
13
14
2
8
5
9
12
3
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F12030

CRANK - cylinder speed control

1шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

WASHER - 1/2" plain (195-106)

2шт.

2

F1224

SPROCKET - (6T) front cylinder speed control

1шт.

PIN - 3/16" x 1-1/2" cotter (132-95)

1шт.

3

F12031

X

CHAIN - upper, cylinder speed control (Use 3-B12486 chains, 1-B12487 chain, 1-B12511 conn. link and 3-B12516 roller links #A2040)

1шт.

4

F1219

SPROCKET - (6T and 24T dbl.) rear cylinder speed control

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

1шт.

5

F76935

SHAFT - cylinder, with support plate

1шт.

SCREW - 1/4" x 3/4" N.C. mach. (173-202) nut (129-101)

3шт.

WASHER - 1/4" std. (195-518) L.W. (192-19)

3шт.

6

F7837

CHAIN - lower, cylinder speed control (Use 4-B12486 chains and 2-B12488 chains #A2040)

1шт.

7

F6531

TACHOMETER

1шт.

8

F79385

CABLE

- flexible, tachometer

1шт.

9

O6168AB

CLIP, tachometer

1шт.

BOLT - 5/16" x 1/2" N.F. hex. (14-58) nut (25-115), tachometer

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - for ref. 8, tachometer

1шт.

11

F11364

BRACKET - mounting, tachometer

1шт.

12

F11829

SPACER - mounting bracket, pipe, tachometer

2шт.

13

F6526

NUT - connector, tachometer

1шт.

14

F6438

BUSHING - connector, tachometer

1шт.
