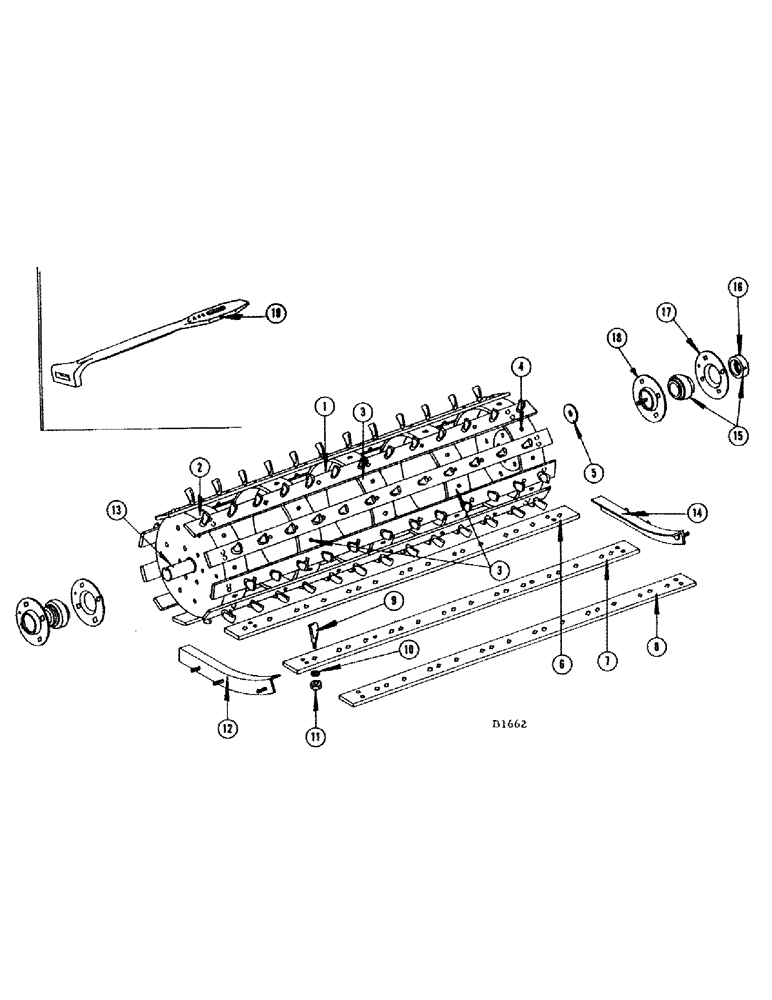

Запчасти Case IH 1010 (114) - SPIKE TOOTH CYLINDER (66) - THRESHING

1

F77251

CYLINDER - spike tooth, less shaft

1шт.

2

1938CSA

HEAD - cylinder, outside, R.H.

1шт.

111-409

BOLT - 7/16" x 2-3/4" rhd. sq. nk. and nut (129-104) Short NK, 7/16"-14 x 2 3/4", G2

1шт.

3

O3220CS

HEAD - cylinder, center

3шт.

4

1937CSA

HEAD - cylinder, outside L.H.

1шт.

111-409

BOLT - 7/16" x 2-3/4" rhd. sq. nk. and nut (129-104) Short NK, 7/16"-14 x 2 3/4", G2

1шт.

5

O1632TS1

WASHER - balance

1шт.

6

F8636

BAR - cylinder, #1 less teeth (Spaces 13T)

3шт.

45-620

RIVET,But Hd, 3/8" x 1 1/4"

- 3/8" x 1-1/4" rhd.

21шт.

7

F8637

BAR - cylinder, #2 less teeth (Spaces 14T)

3шт.

45-620

RIVET,But Hd, 3/8" x 1 1/4"

- 3/8" x 1-1/4" rhd.

21шт.

8

F8638

BAR - cylinder, #3 less teeth (Spaces 13T)

3шт.

45-620

RIVET,But Hd, 3/8" x 1 1/4"

- 3/8" x 1-1/4" rhd.

21шт.

9

B18066

TOOTH

- cylinder (13-F8636, 14-F8637 and 13-F8638)

120шт.

10

194-8

LOCKWASHER - for B18066 tooth

120шт.

11

25-118

NUT,1/2"-20, G5

- for B18066 tooth

120шт.

12

F77258

SHIELD - cylinder, with studs, R.H.

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, and L.W. (192-19)

3шт.

13

F12592

SHAFT - V.S. cylinder drive (#8262501 and after)

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

F86003

SHAFT - V.S. cylinder drive (Before #8262501)

1шт.

F10717

KEY

1шт.

F11692

SHAFT - chain cylinder drive

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

14

F77257

SHIELD - cylinder, with studs, L.H.

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, and L.W. (192-19)

3шт.

15

F84032

BEARING

- cylinder shaft (#8262501 and after)

2шт.

16

F62107

COLLAR

1шт.

F77924

BEARING

- cylinder shaft (Before #8262501)

2шт.

F62107

COLLAR

1шт.

17

F12588

FLANGETTE - outer (#8262501 and after)

2шт.

18

F12587

FLANGETTE - inner (#8262501 and after)

2шт.

F10991

FLANGE - cylinder bearing (Before #8262501) Not shown

4шт.

19

B18287

STRAIGHTENER - tooth

1шт.

F76934

STRIPPER - cylinder (See ref. 5, page 112)

1шт.

F77579

SHROUD - stripper (See ref. 6, page 112)

1шт.
