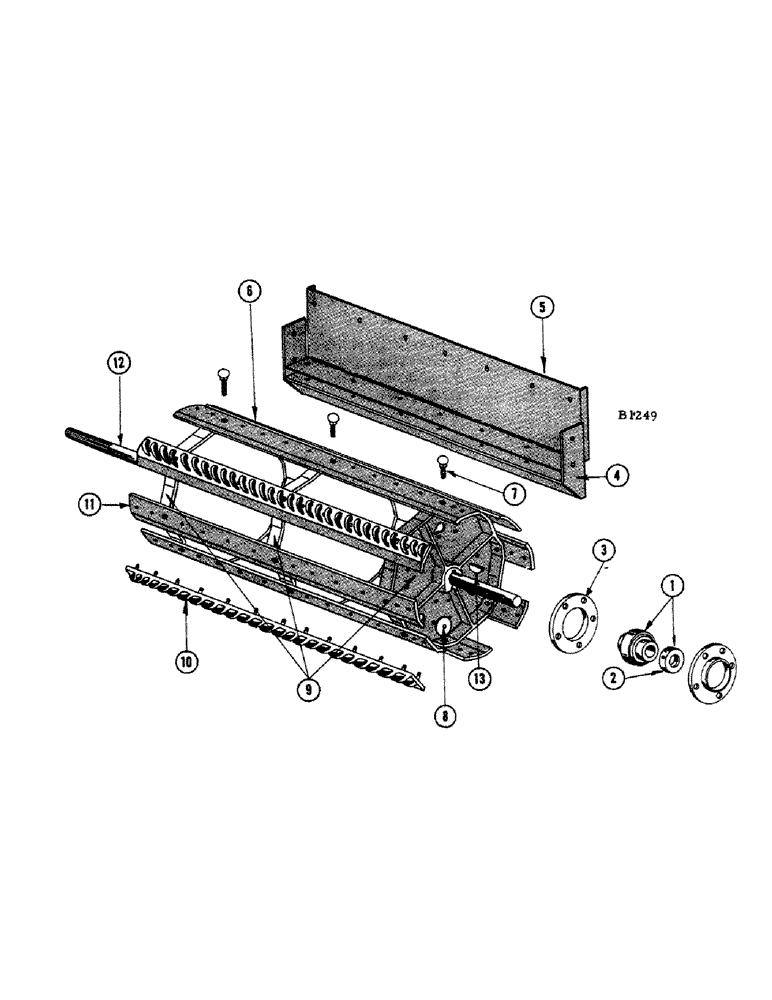

Запчасти Case IH 1010 (112) - RUB BAR CYLINDER, BEFORE SERIAL NUMBER 8262501 (66) - THRESHING

1

F77924

BEARING

- cylinder shaft

2шт.

2

F62107

COLLAR

1шт.

3

F10991

FLANGE - bearing

4шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex. and nut (25-118)

6шт.

14-896

BOLT (MACHINE),Hex, 1/2" - 20 x 6", Gr 5

BOLT - 1/2" x 6" N.F. hex. and nut (25-116)

4шт.

4

F76934

STRIPPER - cylinder

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex. and nut (25-114)

7шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and Gripco nut (131-365) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

5

F77579

SHROUD - stripper

1шт.

6

F78257

CYLINDER - rub bar, less shaft

1шт.

7

F5340

BOLT - rub bar support

24шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex. and L.W. (92-10)

24шт.

8

O1632TS1

WASHER - balance

1шт.

75-520

SCREW - 5/16" x 1-1/4" N.C. mach. and nut (25-105)

2шт.

9

F79128

HEAD - cylinder

3шт.

75-520

SCREW - 5/16" x 1-1/4" N.C. mach. and nut (25-105)

4шт.

114-306

BOLT,Hex, 7/16" - 20 x 3", Gr 5

- 7/16" x 3" N.F. hex. and nut (129-124)

4шт.

10

F77651

SET OF CYLINDER RUB BARS - (4 R.H. and 4 L.H.) with 96-(25-107) nuts and 96-(92-7) lockwashers

1шт.

11

F7690

SUPPORT - rub bar

8шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. L.W. (92-6) and fl. wshr. (195-25)

24шт.

12

F86636

SHAFT - V.S. cylinder drive (Rub bar) replaces F12517

1шт.

13

F10717

KEY

2шт.

F11693

SHAFT - chain cylinder drive (Rub bar)

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.
