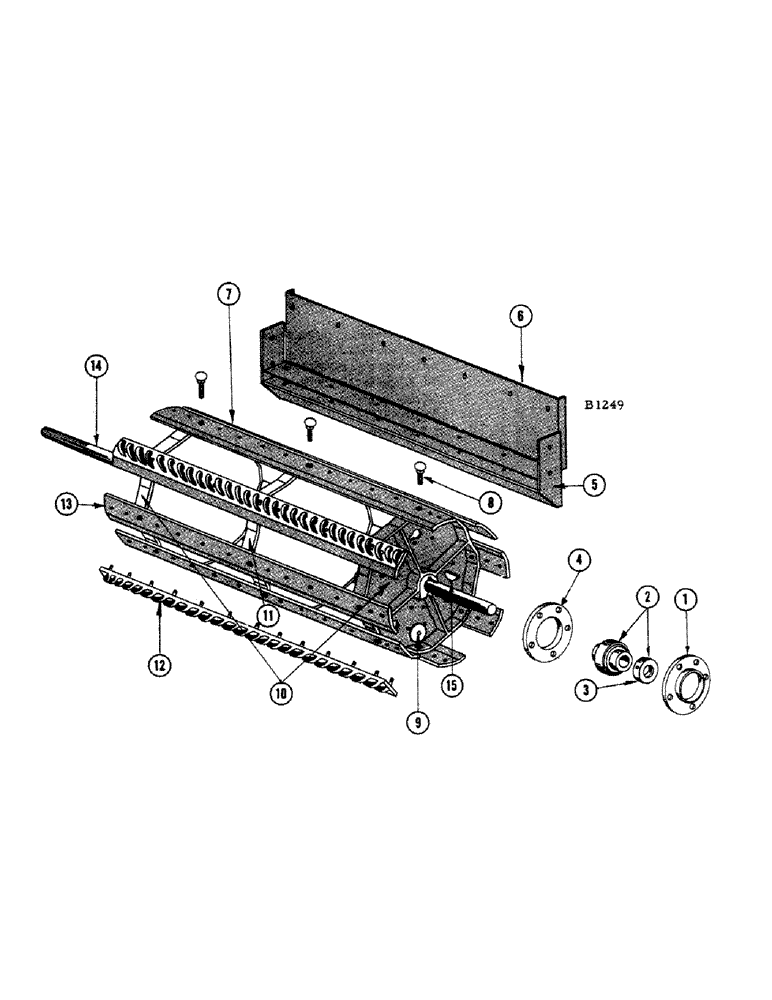

Запчасти Case IH 1010 (112[A]) - RUB BAR CYLINDER, SERIAL NUMBER 8262501 AND AFTER (66) - THRESHING

1

F12588

FLANGETTE - outer

2шт.

14-896

BOLT (MACHINE),Hex, 1/2" - 20 x 6", Gr 5

BOLT - 1/2" x 6" N.F. hex

2шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex

8шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex. and l.w. (92-8)

10шт.

2

F84032

BEARING

- for ref. 14

2шт.

3

F62107

COLLAR

1шт.

4

F12587

FLANGETTE - inner

2шт.

5

F76934

STRIPPER - cylinder

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex. and nut (25-114)

7шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and Gripco nut (131-365) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

6

F77579

SHROUD - stripper

1шт.

7

F78257

CYLINDER - rub bar, less shaft

1шт.

8

F5340

BOLT - rub bar support

24шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex. and L.W. (92-10)

24шт.

9

O1632TS1

WASHER - balance

1шт.

75-520

SCREW - 5/16" x 1-1/4" N.C. mach. and nut (25-105)

2шт.

10

F79128

HEAD - cylinder, R.H. and L.H.

2шт.

75-520

SCREW - 5/16" x 1-1/4" N.C. mach. and nut (25-105)

4шт.

114-306

BOLT,Hex, 7/16" - 20 x 3", Gr 5

- 7/16" x 3" N.F. hex. and nut (129-124)

4шт.

11

F1295

HEAD - cylinder, center

1шт.

12

F77651

SET OF CYLINDER RUB BARS - (4 R.H. and 4 L.H.) with 96-(25-107) nut and 96-(92-7) lockwashers

1шт.

13

F7690

SUPPORT - rub bar

8шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., L.W. (92-6) and fl. wshr. (195-25)

24шт.

14

F12591

SHAFT - V.S. speed cylinder drive (Rub bar)

1шт.

F11693

SHAFT - chain cylinder drive (Rub bar)

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

15

F10717

KEY - for ref. 14

2шт.
