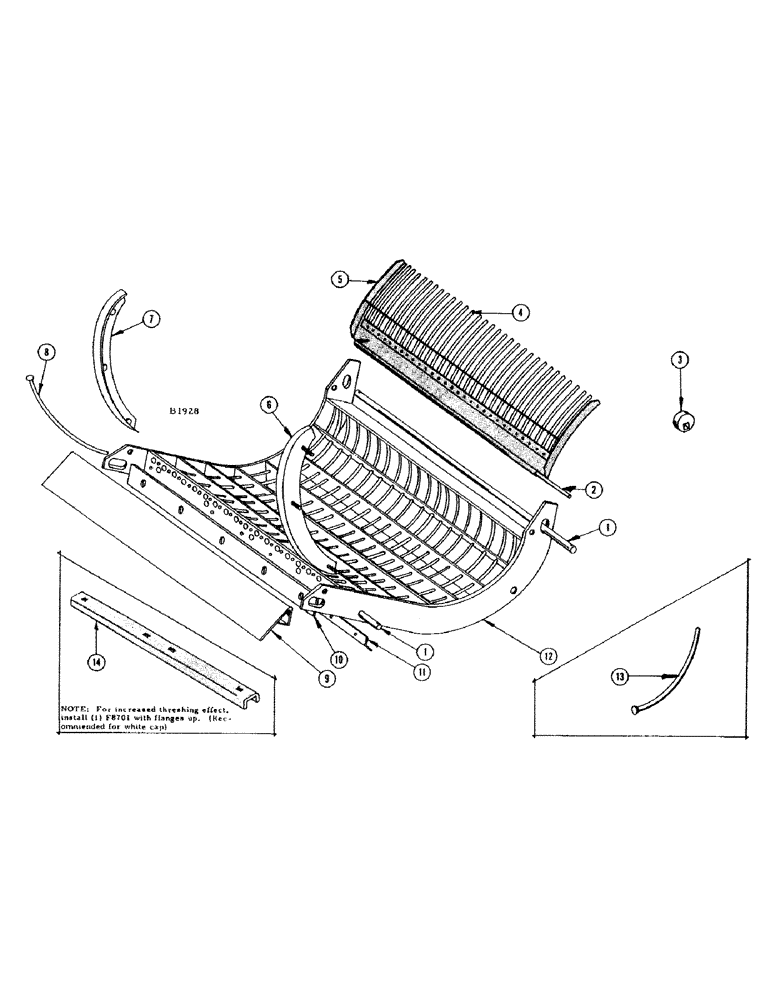

Запчасти Case IH 1010 (108) - RUB BAR CYLINDER, CONCAVES, TINES AND REMOVABLE FEED PLATE (66) - THRESHING

1

F11028

SHAFT - front and rear

2шт.

2

F7687

STRIP - bolting

1шт.

3

F1327

ECCENTRIC - tine assembly guide

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (11-628) nut (25-106)

2шт.

4

F11067

TINE - grate

26шт.

BOLT - 1/4" x 3/4" N.C. rhd. sq. nk. (11-412) nut (25-104)

26шт.

WASHER - 1/4" plain (195-18)

26шт.

5

F79348

TINE ASSEMBLY

1шт.

6

F76889

SHIELD - cylinder, with studs, L.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

7

F76890

SHIELD - cylinder, with studs, R.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

8

F10164

ROD

- concave

25шт.

9

F79888

PLATE - feed (Regular)

1шт.

10

F7677

WEAR PLATE

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) flex loc nut (131-528)

5шт.

WASHER - 3/8" plain (195-25)

5шт.

11

F86038

EXTENSION - concave deflector

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) L.W. (92-5)

5шт.

12

F86037

CONCAVE - rub bar cylinder

1шт.

13

F10246

ROD - short concave, attachment

25шт.

14

F8701

PLATE - concave filler (Special for beans), attachment

4шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520) nut (25-105), bean concave filler attachment

16шт.

O1558CH

X

WASHER - (1-1/2" O.D. x 13/32" I.D. #10 or #12 ga.) For bolts of F8701 plate (Not shown), bean concave filler attachment

16шт.
