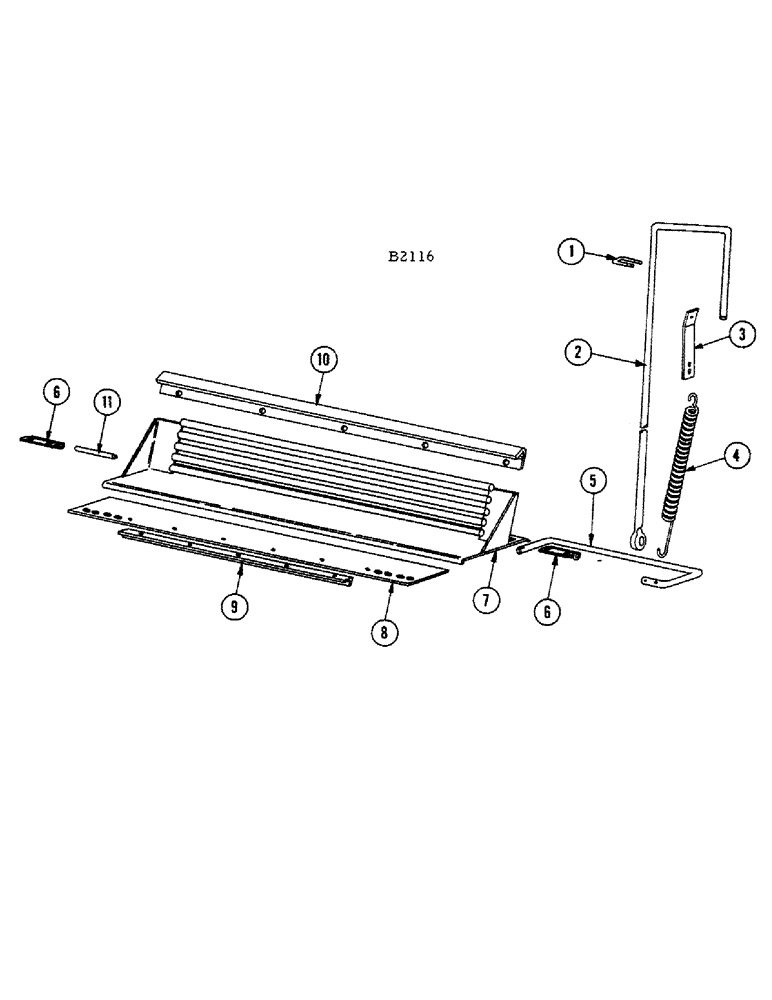

Запчасти Case IH 1010 (106) - STONE TRAP ATTACHMENT, BEFORE SERIAL NUMBER 8243201 (66) - THRESHING

1

F12155

GUIDE - push rod

2шт.

NUT - 1/4" N.C. hex (129-101)

8шт.

LOCKWASHER - 1/4" (192-19)

4шт.

2

F12462

ROD - push, cleanout (Replaces F11898)

1шт.

F11898

ROD - push, cleanout (Replaced by F12462)

1шт.

3

F11899

SUPPORT - spring

1шт.

4

F6940

SPRING

1шт.

5

F11897

ROD - control, boot door

1шт.

PIN - 1/8" x 3/4" cotter (132-46) 3/16" x 1" cotter (132-91)

1шт.

6

F11890

CLAMP - pivot shaft

2шт.

7

F86189

DOOR - stone trap

1шт.

8

F11887

SEAL - (Canvas) conveyor floor

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101)

4шт.

9

F12154

REINFORCEMENT - seal

1шт.

RIVET - 3/16" x 1/2" truss hd. W.B. (49-38)

5шт.

RIVET - 3/16" x 3/8" truss hd. W.B. (49-360

1шт.

10

F77664

PLATE - feed

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

5шт.

11

F11889

SHAFT - pivot, boot door

1шт.
