(106[A]) - STONE TRAP ATTACHMENT, SERIAL NUMBER 8243201 AND AFTER

Запчасти Case IH 1010 (106[A]) - STONE TRAP ATTACHMENT, SERIAL NUMBER 8243201 AND AFTER (66) - THRESHING

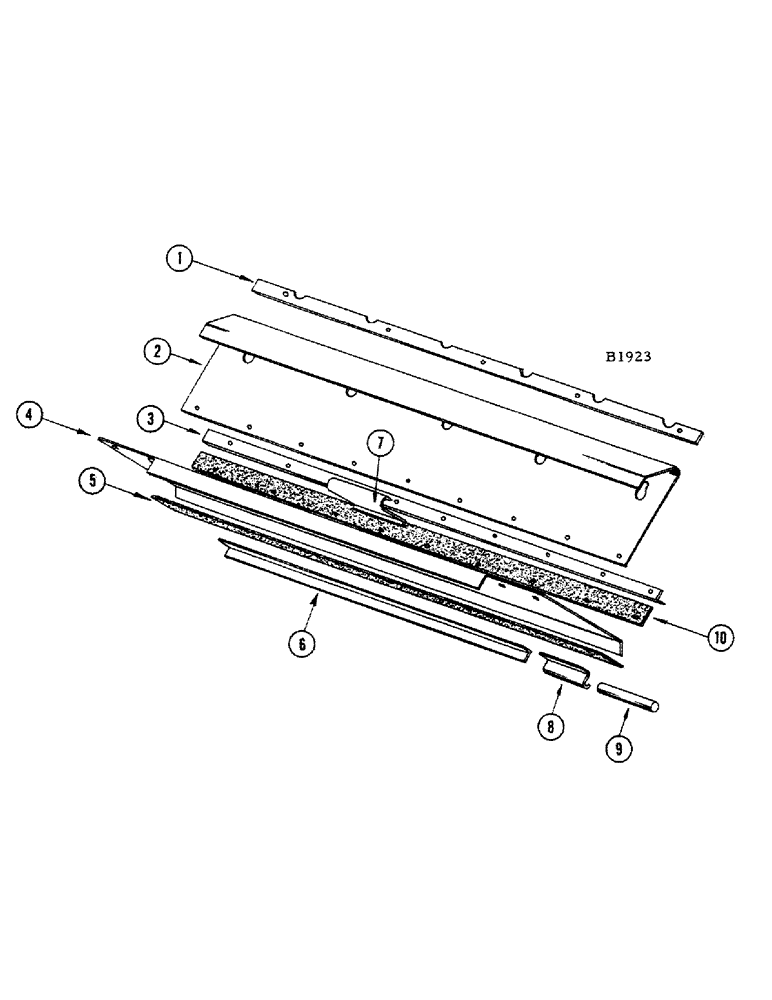

Схема запчастей Case IH 1010 - (106[A]) - STONE TRAP ATTACHMENT, SERIAL NUMBER 8243201 AND AFTER (66) - THRESHING
2
4
10
5
9
8
7
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F86673

STRIP - bolting

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) L.W. (92.6) and plain wshr. (195-25) - rub bar

5шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) L.W. (92-6) and plain wshr. (195-25) - spike tooth

5шт.

2

F86672

PLATE - feed

1шт.

3

F8267

STRIP - bolting, seal

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

9шт.

4

F86675

TRAP - stone

1шт.

5

F11887

SEAL

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101)

4шт.

6

F12154

REINFORCEMENT - seal

1шт.

RIVET - 3/16" x 1/2" truss hd. W.B. (49-38)

5шт.

RIVET - 3/16" x 3/8" truss hd. W.B. (49-36)

1шт.

7

F12569

CLAMP

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) wing nut (129-409)

4шт.

8

F11890

CLAMP - pivot pin

2шт.

9

F11889

SHAFT - pivot

2шт.

10

F12565

SEAL

1шт.
