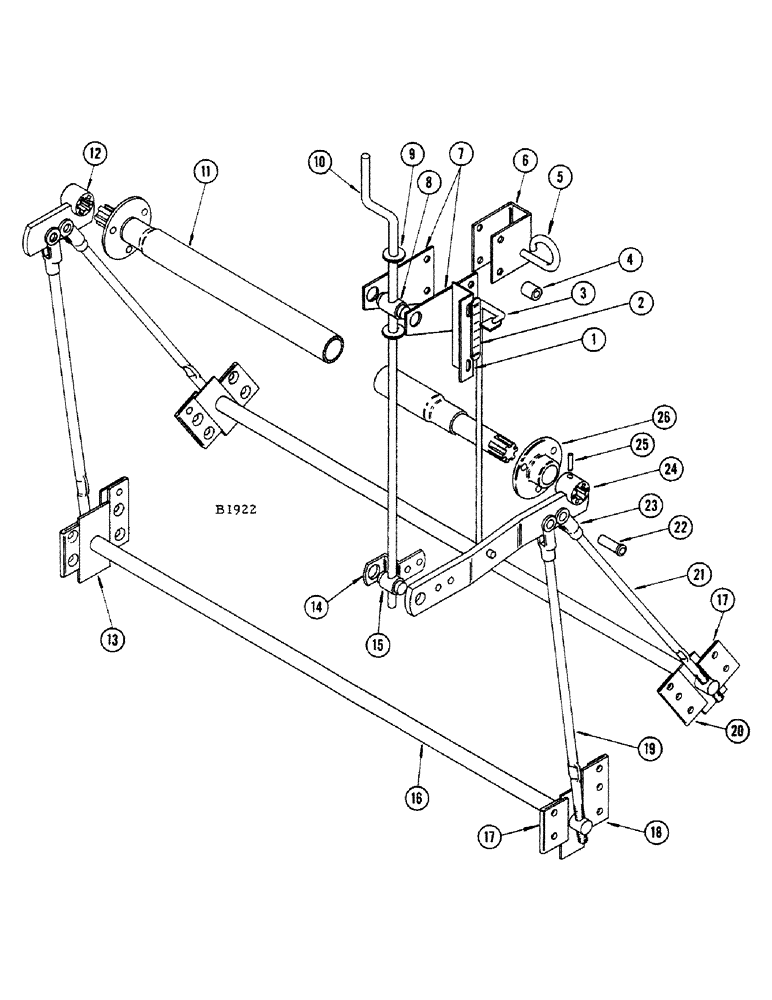

Запчасти Case IH 1010 (104) - CONCAVE ADJUSTING LEVER AND LINKAGE (66) - THRESHING

1

F11980

BRACKET - concave gauge plate

1шт.

2

F12119

GAUGE - concave clearance

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201)

2шт.

NUT - 1/4" - 20 Tinnerman (131-120) nut (129-101) and L.W. (192-19) plain wshr. (195-518)

1шт.

3

F11981

INDICATOR - concave adjustment

1шт.

PIN - 1/8" x 1/2" cotter (132-44)

2шт.

4

C3690S

SPACER - (3/8" O.D. x 1-1/4" long)

1шт.

5

F6435

PIN - release

1шт.

6

F11979

BRACKET - support, concave adjusting

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115) L.W. (92-5)

2шт.

7

F11095

PLATE - concave adjustment

2шт.

BOLT - 3/8" x 3" N.F. hex. (14-648) ESNA nut #29EO64 (131-5)

1шт.

8

F6432

BLOCK - upper pivot, concave adjustment

1шт.

PIN - 1/4" x 1" cotter (132-146)

1шт.

9

O578B

X

WASHER - (1-1/4" O.D. x 21/32" I.D.) For ref. 10

1шт.

10

F11395

CRANK - concave adjusting (Flax attachment)

1шт.

PIN - 1/4" x 1" cotter (132-146)

2шт.

F11972

CRANK - concave adjusting

1шт.

PIN - 1/4" x 1" cotter (132-146)

2шт.

11

F76933

SHAFT - pivot, concave adjusting

1шт.

12

F76944

ARM - R.H. concave adjusting

1шт.

ROLL PIN - 1/4" x 1-1/2" (138-138)

1шт.

13

O3780CS

SHIELD - concave slot

4шт.

14

F6429

BRACKET - support, concave adjusting

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-620) nut (25-116)

2шт.

15

F6428

BLOCK - lower pivot

1шт.

PIN - 1/4" x 1" cotter (132-146)

1шт.

16

F11028

SHAFT - front and rear

2шт.

17

O3772CS

GUIDE - shield, concave shaft

4шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

8шт.

18

F8218

GUIDE - shield, front concave shaft (Rub bar cylinder)

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

O3770CS

GUIDE - shield, front concave shaft (Spike tooth cylinder) See F8218

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

SCREW - 7/16" x 1-1/2" N.C. sq. hd. oval pt. set (181-461) and jam nut (25-147)

4шт.

19

F11032

ROD - (25-1/2") front concave adjusting

2шт.

NUT - 1/2" N.F. hex. (25-118)

2шт.

NUT - 1/2" N.F. hex. jam (25-158)

6шт.

20

F8217

GUIDE - shield, rear concave shaft (Rub bar cylinder)

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

O3771CS

GUIDE - shield, rear concave shaft (Spike tooth cylinder) See F8217

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

SCREW - 7/16" x 1-1/2" N.C. sq. hd. oval pt. set (181-461) and jam nut (25-147)

4шт.

21

F11033

ROD - (24") rear concave adjusting

2шт.

NUT - 1/2" N.F. hex. (25-118)

2шт.

NUT - 1/2" N.F. hex. jam (25-158)

6шт.

22

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, concave adjusting rods

4шт.

PIN - 1/8" x 3/4" cotter (132-46)

4шт.

23

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - concave adjusting rods

4шт.

24

F86040

ARM

- L.H. concave adjusting

1шт.

25

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

26

245CS

BEARING - pivot shaft, concave adjusting

2шт.

FITTING - 1/8" str. #5000 Lincoln (219-1)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

6шт.
