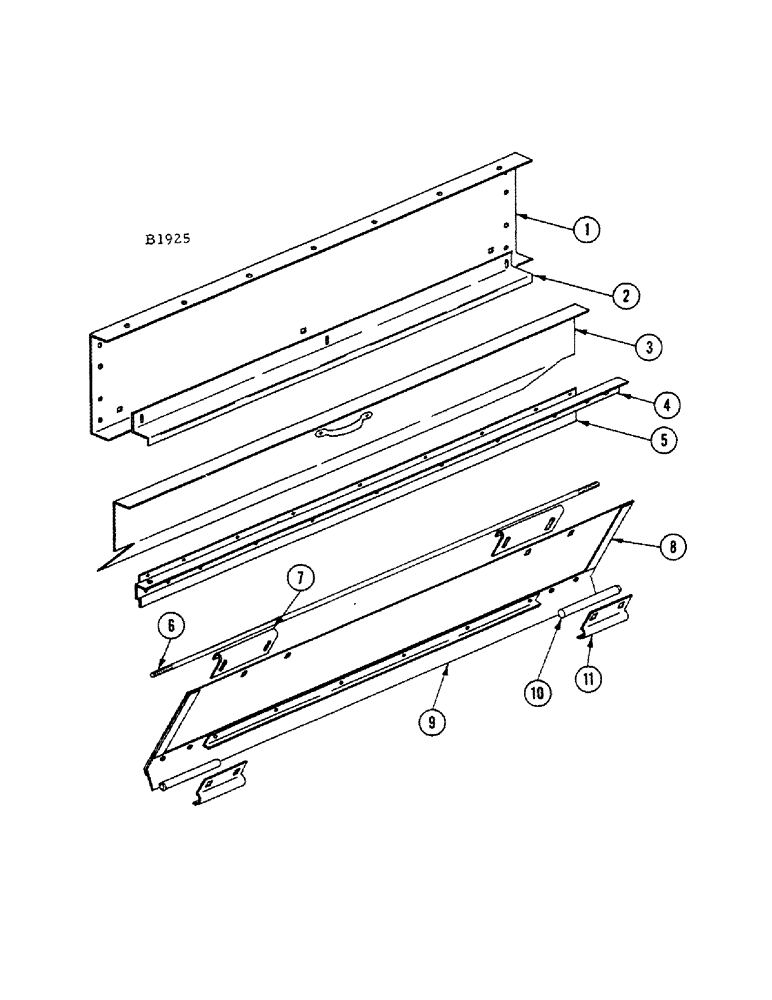

Запчасти Case IH 1010 (142) - CONVEYOR RAKE, CONCAVE ACCESS SECTION (60) - PRODUCT FEEDING

1

F7888

ANGLE - cross, front

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

7шт.

2

F9828

PLATE - for front cross angle

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) wing nut (129-404)

3шт.

3

F78028

CROSS SHEET - front

1шт.

4

F7889

ANGLE - lower cross, front

1шт.

5

F7891

WIPER - (Rubber) feeder spout

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

9шт.

6

F7807

TIE ROD - front cylinder post

1шт.

NUT - #29 E 180 ESNA (131-9)

2шт.

7

F12569

CLAMP - (Serial #8262501 and after)

2шт.

F11891

SEAL BRACKET - (Before serial #8262501)

2шт.

8

F86046

DOOR - boot

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) wing nut (129-409)

4шт.

9

F11887

SEAL - boot

1шт.

10

F11889

SHAFT - pivot, boot door

2шт.

11

F11890

CLAMP - pivot pin boot door

2шт.
