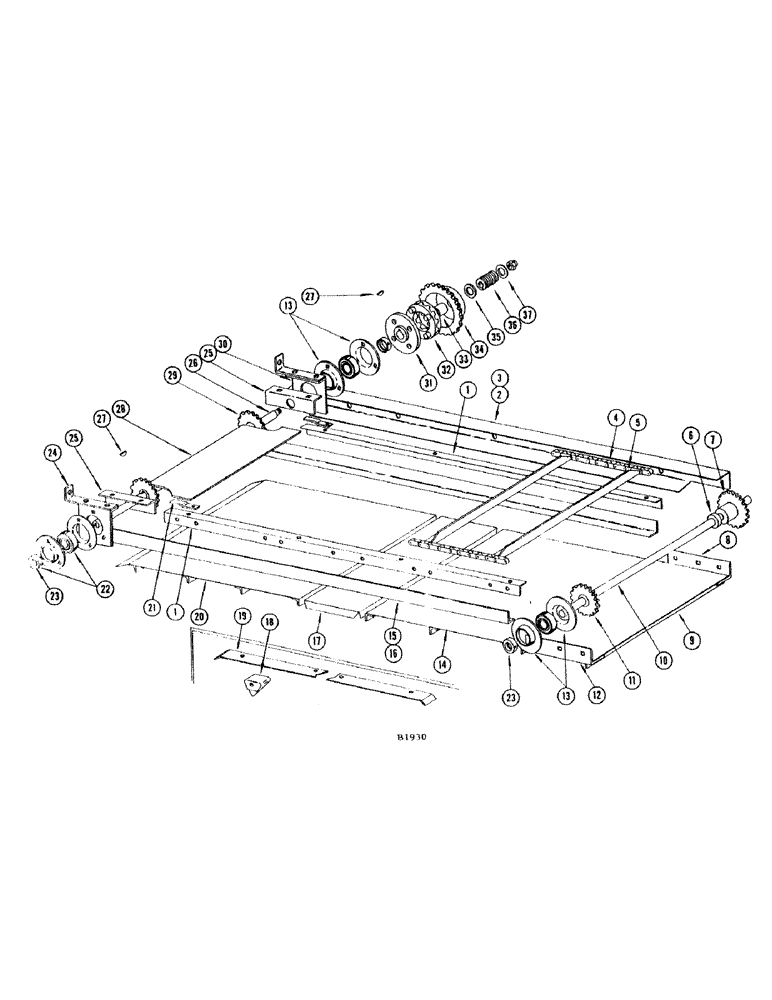

Запчасти Case IH 1010 (140) - CONVEYOR RAKE (60) - PRODUCT FEEDING

1

F11855

SUPPORT - conveyor rake chain, R.H. and L.H.

2шт.

2

F86026

SHIELD - L.H., conveyor rake chain

1шт.

3

F86027

SHIELD - R.H., conveyor rake chain

1шт.

4

F88187

RAKE - conveyor

1шт.

5

F14539

SLAT - rake

17шт.

Repairs for slats or attaching links requires the above 3 items.

1шт.

F88150

LINK - R.H. attaching

17шт.

Repairs for slats or attaching links requires the above 3 items.

1шт.

F88151

LINK - L.H. attaching

17шт.

Repairs for slats or attaching links requires the above 3 items.

1шт.

F10673

LINK

- offset, #CA550

1шт.

F10674

LINK

- connector, #CA550

1шт.

F10818

LINK

- roller, #CA550

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex. and nut (131-5)

34шт.

111-331

BOLT

- 3/8" x 3/4" rhd. sht. sq. nk., nut and L.W.

34шт.

6

F10357

COLLAR - for ref. 7 sprocket

1шт.

7

F86031

SPROCKET - (7T) conveyor rake, front L.H.

1шт.

8

F11851

ANGLE - L.H., boot mounting

1шт.

9

F11852

ANGLE - cross, cylinder post

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex. and nut (25-116)

2шт.

10

F7808

SHAFT - front, conveyor rake

1шт.

11

F86032

SPROCKET - (7T) conveyor rake, front R.H.

1шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - 1/4" x 1-1/2" Driv Loc type A-3

2шт.

12

F11850

ANGLE - R.H., boot mounting

1шт.

13

B18282

FLANGE

- ref. 22 bearing

8шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

12шт.

14

F86025

FLOOR - front, rake

1шт.

15

F11824

ANGLE - L.H., conveyor rake

1шт.

16

F11820

ANGLE - R.H., conveyor rake

1шт.

17

F77977

FLOOR - access section (Regular)

1шт.

F78921

FLOOR - access section (Special - perforated)

1шт.

18

F1368

DEFLECTOR - grain

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

and L.W. (92-5) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

19

F11856

STRIP

WEAR STRIP - for ref. 1 support

2шт.

20

F76941

FLOOR - rear, rake

1шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" fl. hd. N.C. mach. and nut (25-104)

12шт.

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- 1/4" x 3/4" fl. hd. N.C. mach. and nut (25-104)

2шт.

21

F11857

SUPPORT CLIP - shaft shield

2шт.

22

3074CSA

BALL BEARING

- conveyor rake shafts

4шт.

23

F62108

COLLAR

1шт.

24

F7811

LOCK STRAP - tightener

2шт.

25

F10309

SHIELD - dust, rear rake shaft

2шт.

26

F12196

SHAFT - rear, conveyor rake

1шт.

27

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 29 sprocket #A, 1/4" x 7/8"

2шт.

28

F10864

COVER - rear shaft

1шт.

29

F86033

SPROCKET - (7T) rear shaft

2шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - 1/4" x 1-1/2" Driv Loc type A-3

2шт.

30

F7812

BRACKET - tightener

2шт.

31

143CS

PLATE

- clutch, conveyor rake drive

1шт.

32

T16665

RING - clutch, conveyor rake drive

2шт.

33

F12197

BUSHING - drive sprocket, conveyor rake drive

1шт.

34

F86221

SPROCKET - (30T) conveyor rake drive

1шт.

35

O3885A

WASHER

- inner, spring, conveyor rake drive

1шт.

36

O1090CH

SPRING

- jump clutch, conveyor rake drive

1шт.

37

A26376

WASHER

- outer, spring, conveyor rake drive

1шт.

F10754

CHAIN - drives conveyor rake, strawwalker and tailings auger (See chain page)

1шт.
