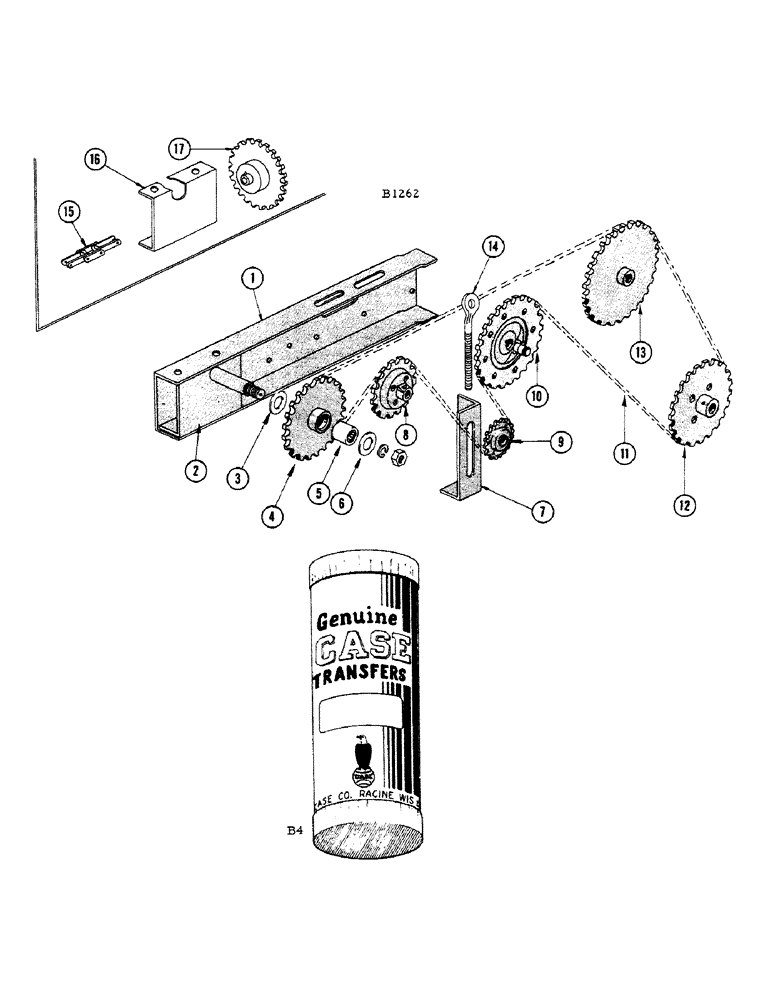

Запчасти Case IH 1010 (138) - TIGHTENER, CONVEYOR RAKE DRIVE, STRAWWALKER AND TAILINGS DRIVE (60) - PRODUCT FEEDING

1

F11917

BRACKET - support, rear conveyor rake, L.H.

1шт.

2

F86055

SHAFT - includes bracket

1шт.

NUT - 3/4" N.F. hex. (25-1112) L.W. (92-12)

1шт.

FITTING - 1/4" x 90 degree #5412 Lincoln (219-58)

1шт.

3

O3032B

X

WASHER - tightener shaft

1шт.

4

F78411

SPROCKET ASSY.

SPROCKET - (36T) tightener

1шт.

5

O2167CK

X

BEARING - (Torrington #BL-1628-OH)

1шт.

6

O642HT

WASHER - tightener shaft

1шт.

7

F11922

BRACKET

- idler

1шт.

8

F86221

SPROCKET - (30T) conveyor rake drive

1шт.

9

F40411

COLLAR CLAMP

SPROCKET - (9T) idler

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) elastic stop nut (131-10) L.W. (92-10)

1шт.

WASHER - 5/8" std. (195-41)

2шт.

10

F86063

SPROCKET ASSY.

SPROCKET - (40T) drives strawwalker and tailings elevator

1шт.

11

F10754

CHAIN - drives conveyor rake, strawwalker and tailings auger (Consists of 132 total links fo #CA-2050 extended pitch roller chain) Use 2-B12517, 1-B12518 and 2-B12520

1шт.

12

F79359

SPROCKET ASSY.

SPROCKET - (40T) tailings auger

1шт.

13

F78413

SPROCKET - (48T) strawwalker drive, driven

1шт.

14

F11923

ROD - adjusting

1шт.

15

F11648

CHAIN - extension (Use 3-B12523 plain links, 1-B12521 connecting link #CA2050D roller chain), slow speed conveyor chain drive attachment

1шт.

16

F11918

BRACKET, slow speed conveyor chain drive attachment

1шт.

17

F86501

SPROCKET - (52T) conveyor rake chain, slow speed conveyor chain drive attachment

1шт.

O2073B

X

WASHER - (7/8" O.D. x 17/32" I.D. #16 ga.) Not shown, slow speed conveyor chain drive attachment

2шт.

B17080

SET OF TRANSFERS - for 1010 Self Propelled Combine, transfers

1шт.

321-590

"1010 COMBINE" - (R.H. side sheet and front of grain bin), transfers

2шт.

321-256

"CASE" - (Front of grain bin), transfers

1шт.

321-462

DECAL

"RICE SPECIAL" - (Front of grain bin),transfers

2шт.

321-538

DECAL

"POWER STEERING" - #5286 (Front of platform), transfers

1шт.

321-349

DECAL

"GREASE SPLINE" - (L.H. side sheet), transfers

1шт.

321-266

DECAL

NAME AND ADDRESS - (Rear hood), transfers

1шт.

321-17

DECAL

PATENT - (Platform cross angle), transfers

1шт.

321-280

DECAL

"POWER SHAFT R.P.M." - (L.H. side sheave),transfers

1шт.

321-789

DECAL

"OIL RESERVOIR LEVEL", transfers

1шт.

321-275

DECAL

"CASE" - (Engine firewall), transfers

1шт.

321-258

DECAL

"CASE" - (R.H. rear side sheet), transfers

1шт.

321-339

DECAL

SAFETY - (Platform in front of ladder), transfers

1шт.

321-8

DECAL

EAGLE - #15 (Steering column), transfers

1шт.

321-712

DECAL

FAN BELT WARNING - (R.H. side sheat near fan pulley), transfers

1шт.

321-644

"CALIFORNIA SPECIAL", transfers

1шт.
