(102[B]) - TIGHTENER, LOWER ROLLER SHAFT

Запчасти Case IH 1010 (102[B]) - TIGHTENER, LOWER ROLLER SHAFT (60) - PRODUCT FEEDING

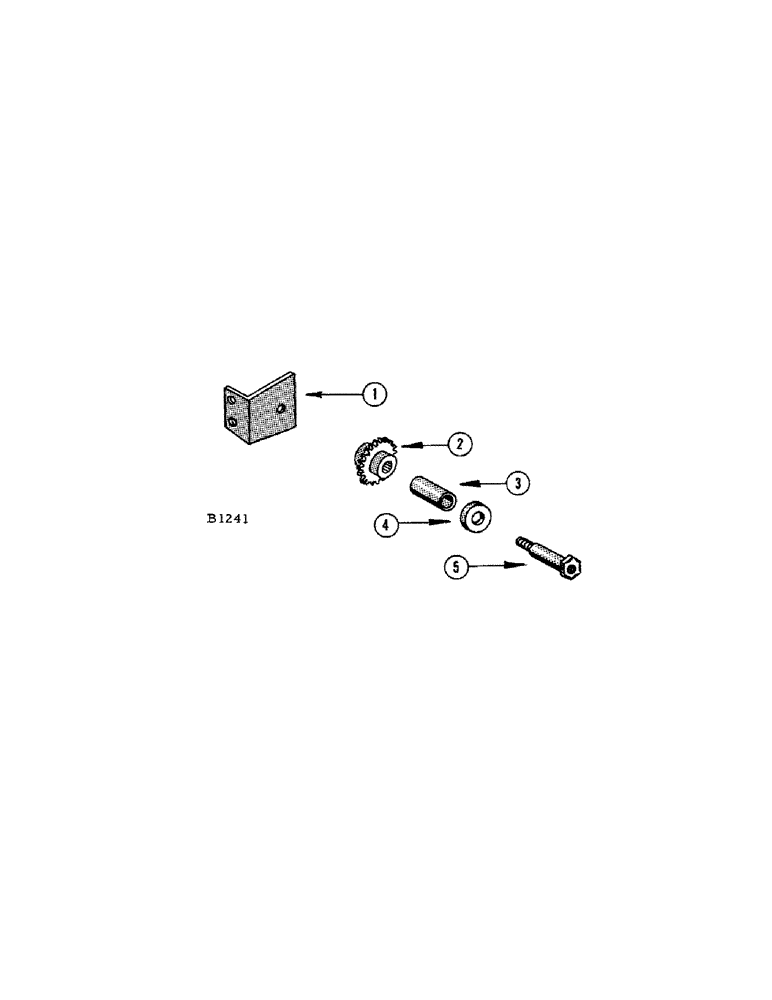

Схема запчастей Case IH 1010 - (102[B]) - TIGHTENER, LOWER ROLLER SHAFT (60) - PRODUCT FEEDING
1
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F12289

BRACKET - tightener, lower roller drive chain

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-123)

2шт.

2

F91595

SPROCKET - (14T) tightener

1шт.

3

O2167CK

X

BEARING - (Torrington BL1628OH)

1шт.

4

O236CH

WASHER - (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) for tightener stud

2шт.

5

O4925CS

STUD - for F91595 tightener sprocket

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

NUT - 5/8" N.F. hex. (129-127) L.W. (192-25)

2шт.
