Запчасти Case IH 1010 (100) - FLAX ATTACHMENT, UPPER ROLLER (60) - PRODUCT FEEDING

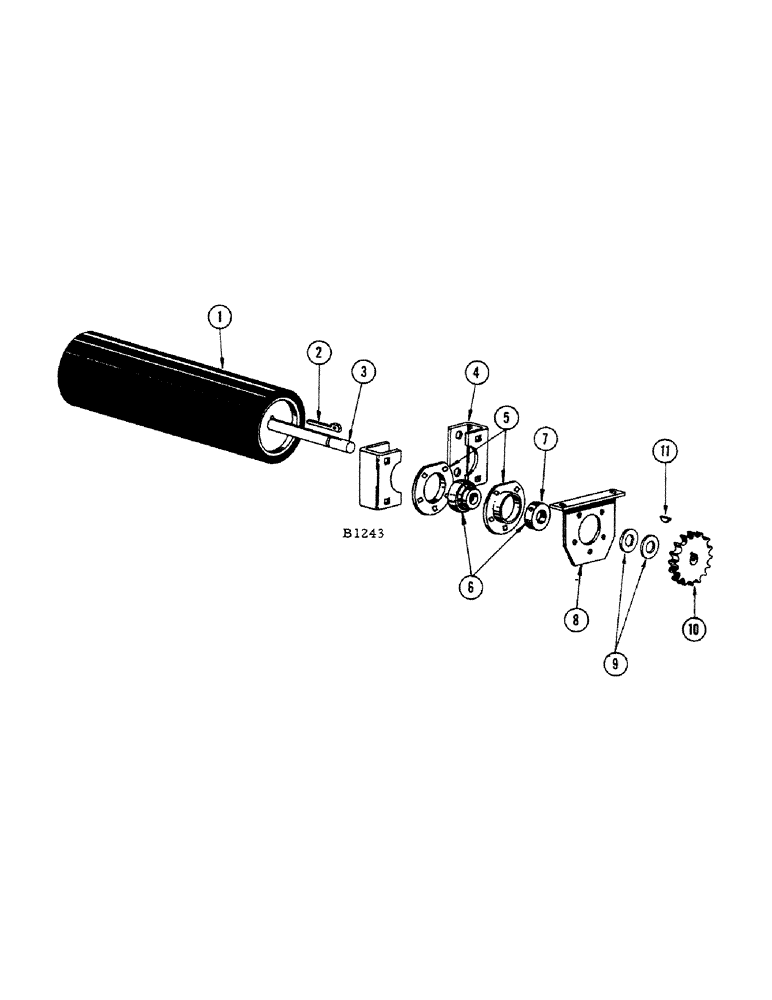

Схема запчастей Case IH 1010 - (100) - FLAX ATTACHMENT, UPPER ROLLER (60) - PRODUCT FEEDING
5
4
11
10
8
2
9
6
1
7
3

Артикул

Название

Примечание

Количество

1

F77129

ROLLER - upper, rubber coated

1шт.

2

1125CSA

KEY - gib, roller to upper shaft

2шт.

3

F8443

SHAFT - (49-7/8" long)

1шт.

PIN - 1/2" x 2" cotter (132-154)

1шт.

4

F10390

GUIDE - for ref. 6

4шт.

5

F5818

FLANGE - for ref. 6

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

10шт.

6

3073BA

BEARING - (Fafnir #G1106KLLB) upper shaft

2шт.

7

O4524B

COLLAR

1шт.

8

F77131

BRACKET - spring, includes nuts

2шт.

9

O138BL

X

WASHER - (2" O.D. x 1-13/32" I.D. #12 ga.) for roller shaft

2шт.

10

F8451

SPROCKET - (13T) upper roll drive, driven

1шт.

PIN - 1/4" x 2-1/2" cotter (132-157)

1шт.

11

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

F8456

CHAIN - upper roller drive (Use 1-B12478 #60 roller chain)

1шт.

Выбрано товаров: 15
