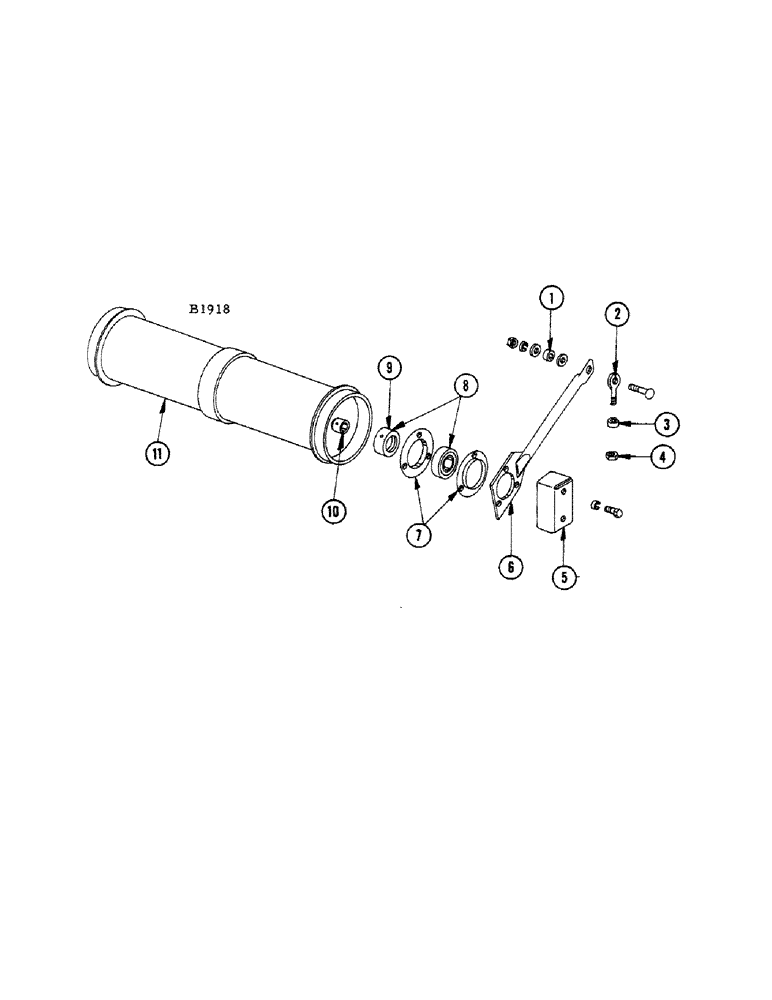

Запчасти Case IH 1010 (094) - FEED RAKE LOWER SHAFT (60) - PRODUCT FEEDING

1

T31088

SPACER,3/8" Pipe x 1/2"

For Ref. 2 3/8" Pipe x 1/2"

2шт.

2

F8326

EYEBOLT - feed rake chain tightener

2шт.

11-732

BOLT

- 7/16" x 2" rhd. sq. nk. and nut (25-107)

2шт.

95-7

WASHER,7/16"

- flat and L.W. (92-7) 7/16"

2шт.

3

O4673TF

WASHER - sheared, for ref. 2

2шт.

4

131-7

LOCK NUT,7/16"-20

NUT - 7/16" elastic stop, for ref. 2

2шт.

5

F79151

SHIELD - stop, R.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

and L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

F79152

SHIELD - stop, L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

and L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

6

F78636

ARM - support, feed rake chain

1шт.

7

O650CB

X

FLANGE - bearing

4шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex. and L.W. (92-6)

6шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - lower feed rake shaft

2шт.

9

O697CB

X

COLLAR

1шт.

10

F11292

SHAFT - lower feed rake

1шт.

11

F79559

DRUM - lower feed rake shaft

1шт.

132-84

PIN - 5/16" x 2-1/4" cotter

1шт.
