(094[B]) - FEED RAKE DRIVE TIGHTENER, BEFORE SERIAL NUMBER 8262501

Запчасти Case IH 1010 (094[B]) - FEED RAKE DRIVE TIGHTENER, BEFORE SERIAL NUMBER 8262501 (60) - PRODUCT FEEDING

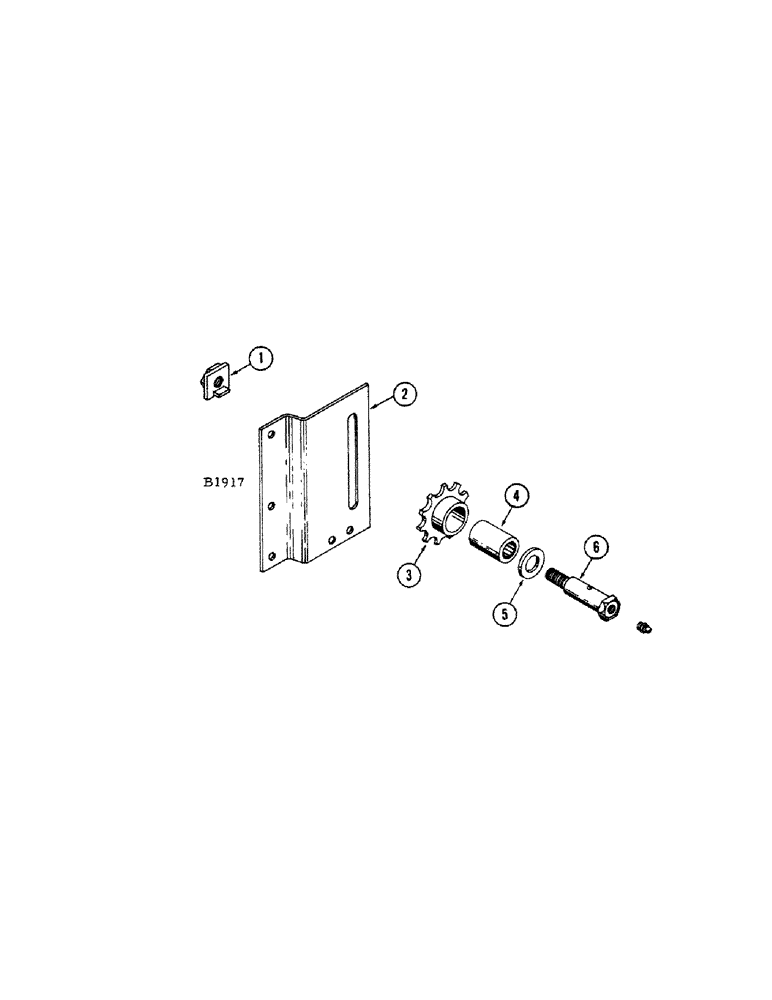

Схема запчастей Case IH 1010 - (094[B]) - FEED RAKE DRIVE TIGHTENER, BEFORE SERIAL NUMBER 8262501 (60) - PRODUCT FEEDING
4
1
5
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F75313

LOCKNUT - for tightener stud

1шт.

2

F12168

BRACKET - tightener, feed rake drive chain

1шт.

45-514

RIVET - 5/16" x 7/8" rhd. But Hd, 5/16" x 7/8"

3шт.

3

F91595

SPROCKET - (14T) tightener

1шт.

4

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

2шт.

5

O236CH

WASHER

2шт.

6

O4925CS

STUD - tightener sprocket

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.
