(094[A]) - FEED RAKE DRIVE TIGHTENER, SERIAL NUMBER 8262501 AND AFTER

Запчасти Case IH 1010 (094[A]) - FEED RAKE DRIVE TIGHTENER, SERIAL NUMBER 8262501 AND AFTER (60) - PRODUCT FEEDING

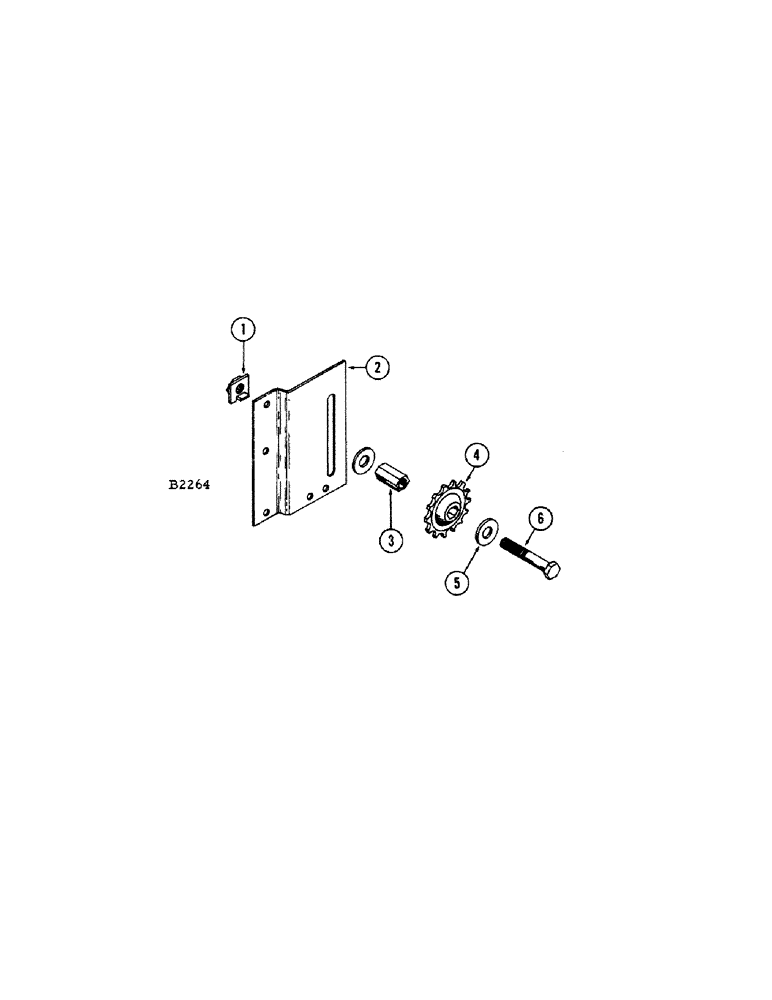

Схема запчастей Case IH 1010 - (094[A]) - FEED RAKE DRIVE TIGHTENER, SERIAL NUMBER 8262501 AND AFTER (60) - PRODUCT FEEDING
6
4
5
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F75313

LOCKNUT - for tightener stud

1шт.

2

F12168

BRACKET - tightener, feed rake drive chain

1шт.

45-514

RIVET - 5/16" x 7/8" rhd. But Hd, 5/16" x 7/8"

3шт.

3

F12623

STUD - tightener sprocket

1шт.

4

F12640

SPROCKET ASSY.

SPROCKET - (15T) tightener

1шт.

5

195-41

WASHER,5/8"

- flat 5/8"

1шт.

6

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.F. hex.

1шт.
