(092[A]) - HINGED FEED PLATE FOR FEED SPOUT

Запчасти Case IH 1010 (092[A]) - HINGED FEED PLATE FOR FEED SPOUT (60) - PRODUCT FEEDING

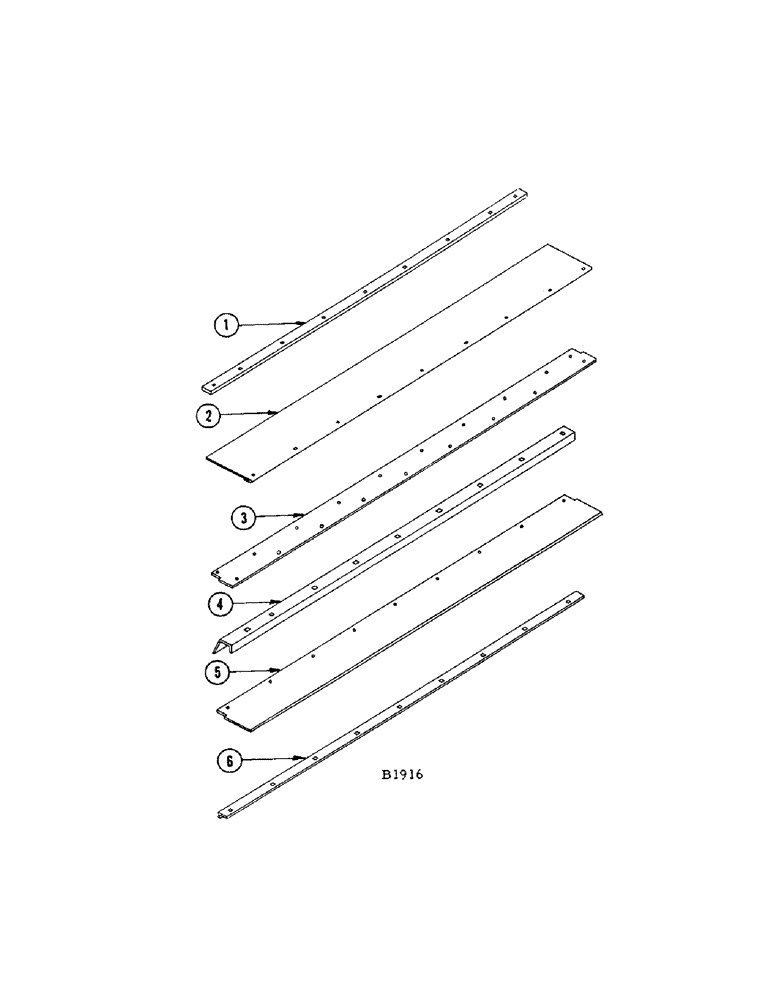

Схема запчастей Case IH 1010 - (092[A]) - HINGED FEED PLATE FOR FEED SPOUT (60) - PRODUCT FEEDING
5
2
6
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F8263

STRIP - spacer, feeder spout upper floor

1шт.

2

F8266

FEED PLATE

1шт.

3

F8264

RUBBER - hinge plate

1шт.

4

F11700

REINFORCEMENT - feed plate hinge

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104)

9шт.

5

F11701

SEAL

1шт.

RIVET - 3/16" x 1/2" truss hd. (49-38)

9шт.

6

F8267

STRIP - bolting, for ref. 2

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-104) nut (25-104)

9шт.
