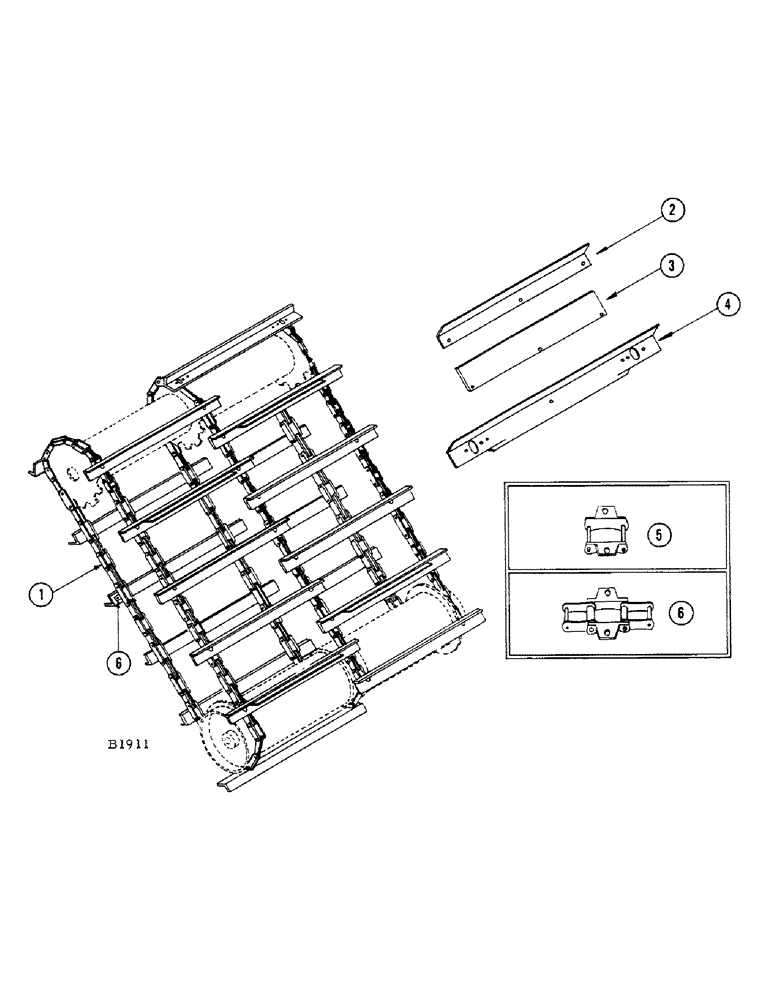

Запчасти Case IH 1010 (080[A]) - FEED RAKE (60) - PRODUCT FEEDING

1

F79561

RAKE - feed (Consists of 26-F11300 slats, 8-F11301 strips, 8-F11302 wipers, 52 attachment links and A550 chain links UAR)

1шт.

2

F11302

REINFORCEMENT - wiper strip

8шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex. and nut (25-114)

24шт.

3

F11301

STRIP - wiper, for slat

8шт.

4

F11300

SLAT - feed rake

26шт.

45-410

RIVET,But Hd, 1/4" x 5/8"

- 1/4" x 5/8" rhd.

104шт.

F79124

PKG. OF 25 HARDENED COTTERS FOR A550 CHAIN LINKS

1шт.

5

F11698

LINK ASSY.

LINK - connecting attaching (outside)

1шт.

6

F79916

LINK - attaching w/2 conn. links

1шт.

K3913

LINK

- connecting, #A550 roller chain

1шт.

K3914

LINK

- roller, #A550 roller chain

1шт.

K3915

LINK

- offset, #A550 roller chain

1шт.
