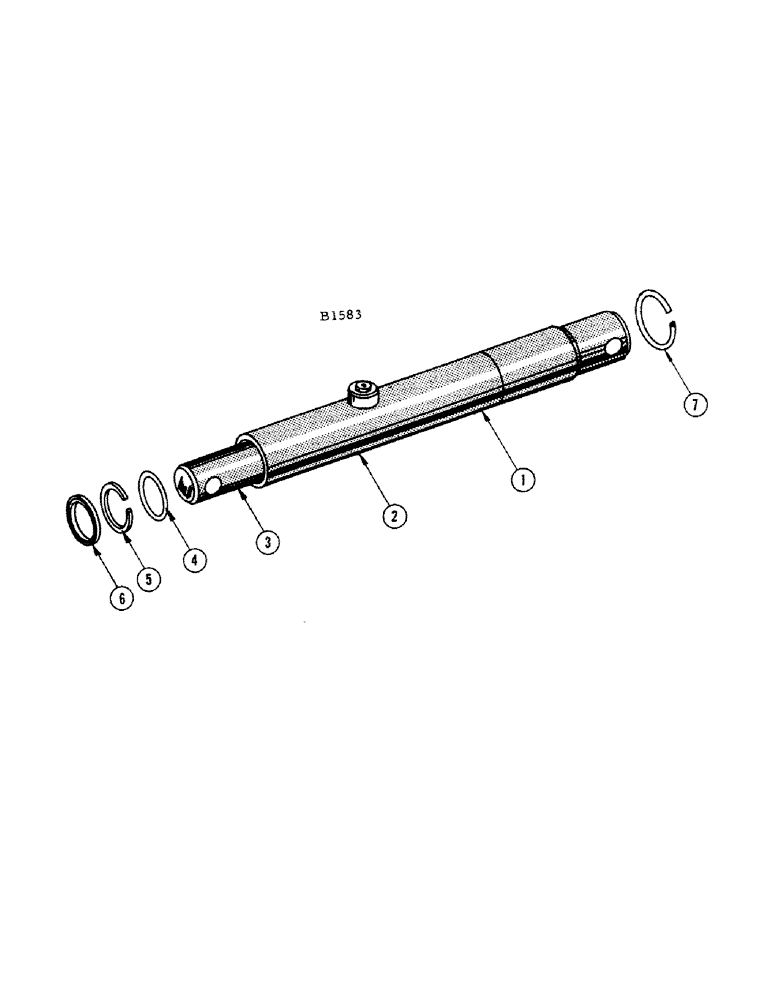

Запчасти Case IH 1010 (080) - HEADER LIFT CYLINDER (58) - ATTACHMENTS/HEADERS

1

F87112

CYLINDER - header lift (Replaces F78769 when stocks are exhausted)

1шт.

F78769

CYLINDER - header lift (Replaced by F87112 when stocks are exhausted)

1шт.

2

F87131

BARREL - for F87112 cylinder

1шт.

F78895

BARREL - for F78269 cylinder

1шт.

3

F10651

ROD - piston

1шт.

F86294

CYLINDER

REPAIR KIT

1шт.

4

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING

1шт.

5

F8084

WASHER

- back up

1шт.

6

F10649

OIL SEAL

OIL SEAL

1шт.

7

F10650

RING, SNAP

SNAP RING - piston rod

1шт.
