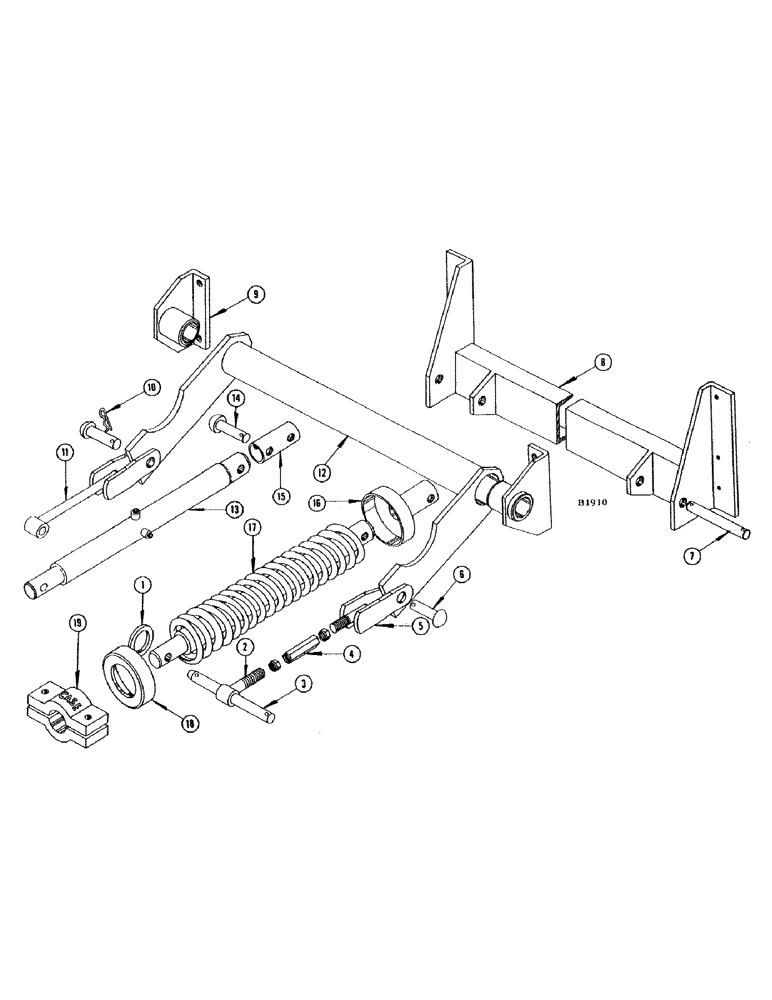

Запчасти Case IH 1010 (078) - HEADER LIFT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
B18004
WASHER
- cylinder pin (Welded to main frame)
2шт.
132-95
COTTER PIN,3/16" x 1 1/2"
Pin, Split (Cotter), 3/16" x 1 1/2"
2шт.
2
F86020
LINK - torque tube, front L.H. (L.H. thread)
1шт.
3
F11807
PIN - cylinder, upper end
2шт.
132-95
COTTER PIN,3/16" x 1 1/2"
Pin, Split (Cotter), 3/16" x 1 1/2"
2шт.
4
F17790
TURNBUCKLE - torque tube links, R.H. side
1шт.
5
F81990
LINK - torque tube, rear L.H. (R.H. thread) Use F86337 link w/flax attachment
1шт.
129-169
JAM NUT,Jam, 7/8"-14, G5
1шт.
6
F60945
PIN - cylinder, lower end
2шт.
132-150
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
7
F12293
PIN - cylinder extension support (Flax attachment)
2шт.
132-152
PIN
- 1/4" x 1-3/4" cotter
4шт.
8
F86333
SUPPORT - cylinder extension (Flax attachment)
1шт.
114-410
BOLT,Hex, 1/2" - 20 x 2", Gr 5
and nut (129-125) Hex, 1/2"-20 x 2", G5
6шт.
9
F86017
SUPPORT - torque tube
2шт.
10
CT1864S
X
PIN - spring cotter
2шт.
11
F86018
LINK - torque tube, R.H. (Use F86336 w/flax attachment)
1шт.
12
F86016
TORQUE TUBE
1шт.
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 1/8" - 67-1/2 degrees
2шт.
13
F87112
CYLINDER - header lift (Replaces F78769 when stocks are exhausted)
2шт.
F78769
CYLINDER - header lift (Replaced by F87112 when stocks are exhausted)
2шт.
14
F8462
PIN - cylinder, extension link, header lift attachment
2шт.
132-52
COTTER PIN,1/8" x 1 1/2"
PIN - 1/4" x 1-3/4" cotter, header lift extension attachment
2шт.
15
F9620
LINK - (4-1/4" long) extension, for transport, header lift attachment
2шт.
16
F77914
RETAINER - spring, header flotation attachment
2шт.
17
F9931
SPRING, header flotation attachment
2шт.
18
F9932
CUP - spring retainer, header flotation attachment
2шт.
19
F1287
CLAMP - spring retainer, header flotation attachment
4шт.
BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5
- 1/2" x 2-1/2" N.F. hex. and nut (25-118), header flotation attachment
4шт.
Выбрано товаров: 29
