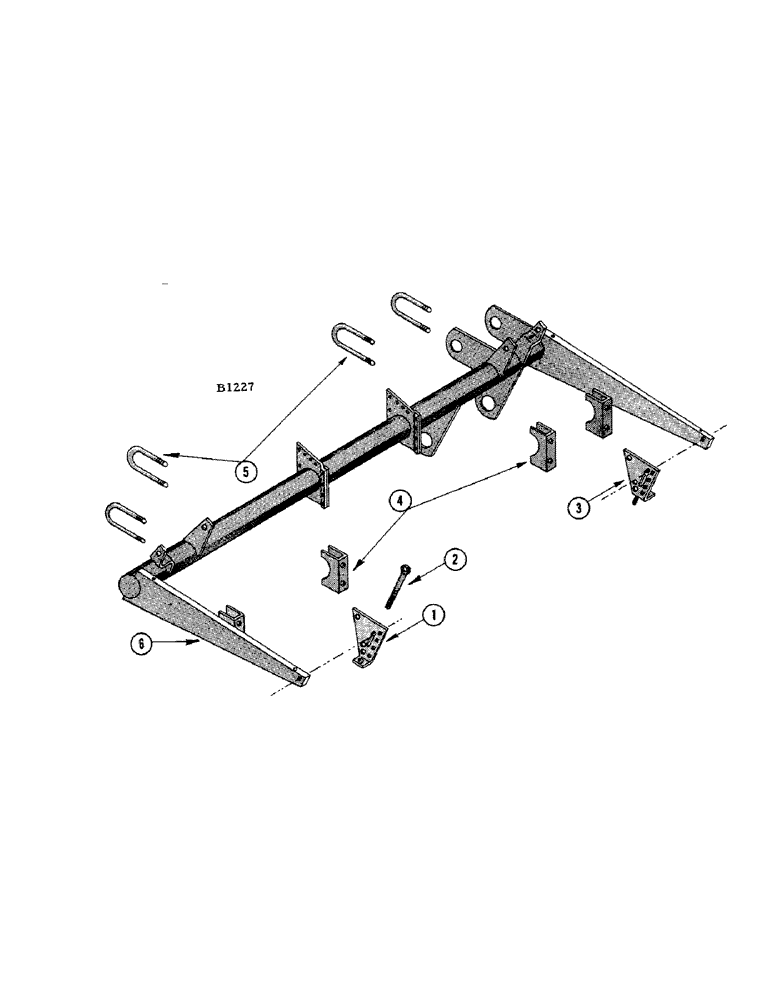

Запчасти Case IH 1010 (076[A]) - HEADER SUPPORT TORQUE TUBE (58) - ATTACHMENTS/HEADERS

1

F8301

GUSSET - reel support, R.H.

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

3шт.

BOLT - 5/16" x 1-5/8" rhd. sq. nk. (111-209) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

2

F8344

EYEBOLT - torque tube arms

2шт.

BOLT - 3/8" x 2" rhd. sq. nk. (11-632) nut (25-106)

2шт.

NUT - 3/8" N.F. hex. (25-118)

4шт.

3

F8302

GUSSET - reel support, L.H.

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

3шт.

BOLT - 5/16" x 1-5/8" rhd. sq. nk. (111-209) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

4

F8298

SUPPORT - torque tube

4шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

8шт.

F10320

SUPPORT - torque tube (18 ft. header)

1шт.

5

F8341

"U" BOLT - torque tube support (4 required for 12 ft., 13 ft., 14 ft., 16 ft. and 5 for 18 ft. headers)

1шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6)

1шт.

6

F79671

TUBE - torque, header support (12 ft. header)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-412)

14шт.

F86790

TORQUE TUBE - header support (13 ft. heavy duty)

1шт.

F79677

TUBE - torque, header support (14 ft. header, standard and heavy duty)

1шт.

F79680

TUBE - torque, header support (16 ft. header)

1шт.

F79683

TUBE - torque, header support (18 ft. header)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-412)

16шт.

F86270

TUBE - torque, header support (Extended cutter bar)

1шт.
